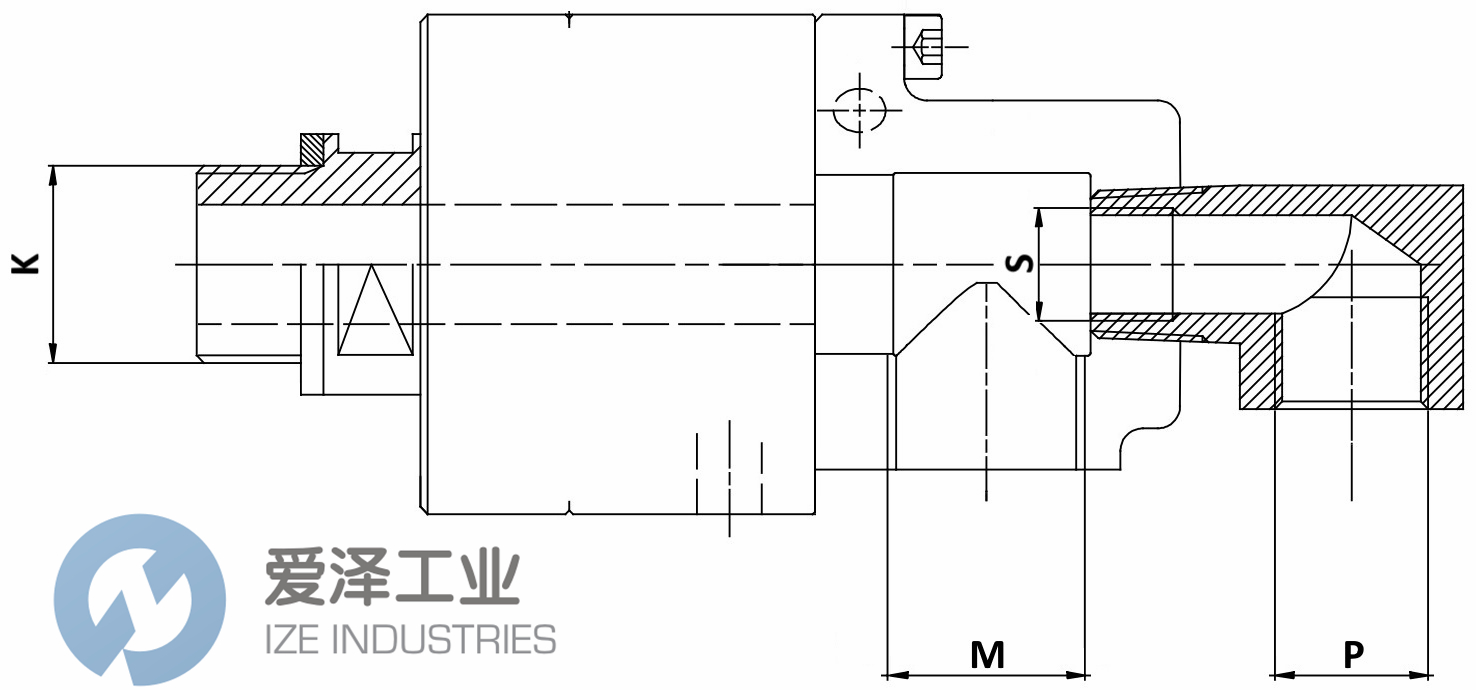

JOHNSON FLUITEN旋转接头R064019646技术参数
| |
Flow | Dual Passage Rotating Syphon |
Rotor (K) | Quick Release (KJ) |
Inlet M | G 1-1/2" RH (ISO 228-1) |
RPM (max) | 750 |
Seal Package | B3 |
Fluid | Water, Glycol |
Joint Size | 2-1/2" |
Outlet P | G 1-1/2" RH (ISO 228-1) |
Syphon S | 45 MM |
Joint S type | ROTATING |
Pressure | 25 |
Temperature (min) | -19°C |
Temperature (max) | 120°C |
JOHNSON FLUITEN旋转接头R系列介绍
带 B3 密封件的 R 系列专为广泛的应用而设计。材料是石墨对碳化硅。R 接头非常适合水、液压油、空气和乙二醇。密封件经过微研磨以获得更佳的性能。R 接头的尺寸从 9 毫米到 150 毫米不等。在单通道，双通道，带螺纹和法兰连接。优质材料、加工精度和组装过程中对细节的关注使 R-union 成为各种应用的选择。所有工会都经过压力测试。R 接头的最高温度为 120 °C。无需从机器上拆卸接头即可轻松修复密封包，减少停机时间。
The R line with B3 seals is designed for a large range of application. The materials are graphite against SIC. The R-union is perfect for water, hydraulic oil, air and glycol. The seals are micro lapped for optimal performance. The R union is available in dimensions from 9mm to 150mm. In single passage, double passage, with treaded and flanged connections. The premium materials, the machining precision and the attention to detail during assembly make the R-union perfect for a large range of applications. All unions are pressure tested. The maximum temperature for the R union is 120 °C. Repair of the seal package is easily done without dismounting the union from the machine reducing down-time to help you produce more
JOHNSON FLUITEN旋转接头R系列其他常用型号：
JOHNSON FLUITEN R064024421
JOHNSON FLUITEN R064022872
JOHNSON FLUITEN R064024422
JOHNSON FLUITEN R064022873
JOHNSON FLUITEN R064019629
JOHNSON FLUITEN R064025542
JOHNSON FLUITEN R064019646
JOHNSON FLUITEN R076022913
JOHNSON FLUITEN R076022912
JOHNSON FLUITEN R076021327
JOHNSON FLUITEN R089025531
JOHNSON FLUITEN R089025541
JOHNSON FLUITEN R089019645
JOHNSON FLUITEN R102022561
JOHNSON FLUITEN ROTARY UNIONS NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于JOHNSON FLUITEN旋转接头R064019646的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for JOHNSON FLUITEN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
JOHNSON FLUITEN旋转接头R064019646技术参数及介绍
