JOHNSON FLUITEN接头R019003061技术参数
Flow | Single Passage |
Rotor (K) | G 3/4" RH (ISO 228-1) |
Inlet M | G 3/4" RH (ISO 228-1) |
RPM (max) | 2600 |
Seal Package | B3 |
Fluid | Water, Air, Hydraulic Oil, Glycol, Coolant |
Pressure | 50 |
Manufacturer | Johnson-Fluiten |
Weight | 1.600 kg |
Joint Size | 3/4" |
Temperature (min) | -19°C |
Temperature (max) | 120°C |
JOHNSON FLUITEN接头R系列介绍
带 B3 密封件的 R 系列专为广泛的应用而设计。材料是针对 SIC 的石墨。R-union 非常适合水、液压油、空气和乙二醇。密封件经过微研磨以获得最佳性能。 R 接头的尺寸从 9 毫米到 150 毫米不等。单通道,双通道,带螺纹和法兰连接。优质材料、加工精度和装配过程中对细节的关注使 R-union 非常适合各种应用。所有工会都经过压力测试。R 两通的最高温度为 120 °C。无需从机器上拆卸接头即可轻松完成密封包的维修,从而减少停机时间,增加产量
The R line with B3 seals is designed for a large range of application. The materials are graphite against SIC. The R-union is perfect for water, hydraulic oil, air and glycol. The seals are micro lapped for optimal performance. The R union is available in dimensions from 9mm to 150mm. In single passage, double passage, with treaded and flanged connections. The premium materials, the machining precision and the attention to detail during assembly make the R-union perfect for a large range of applications. All unions are pressure tested. The maximum temperature for the R union is 120 °C. Repair of the seal package is easily done without dismounting the union from the machine reducing down-time to help you produce more

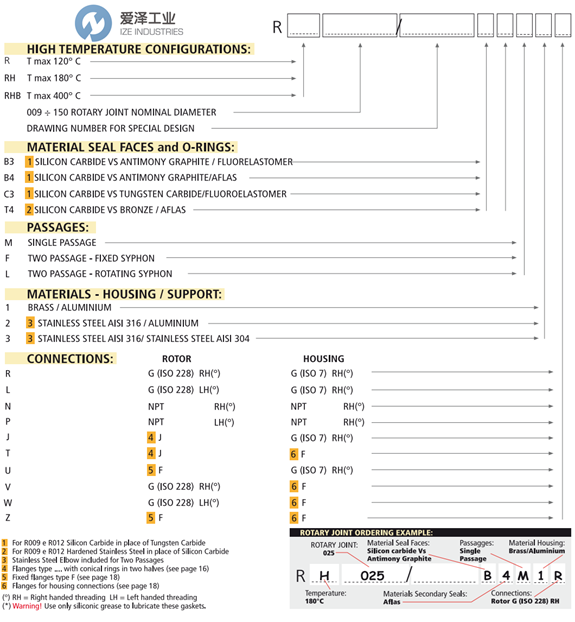

JOHNSON FLUITEN接头R系列选型
JOHNSON FLUITEN接头R系列其他常用型号:
JOHNSON FLUITEN R009020622
JOHNSON FLUITEN R012001963
JOHNSON FLUITEN R012002296
JOHNSON FLUITEN R012019858
JOHNSON FLUITEN R012004960
JOHNSON FLUITEN R012002295
JOHNSON FLUITEN R012020623
JOHNSON FLUITEN R019003061
JOHNSON FLUITEN R019004475
JOHNSON FLUITEN R019020624
JOHNSON FLUITEN R019003062
JOHNSON FLUITEN R019020611
JOHNSON FLUITEN R019020625
JOHNSON FLUITEN R025010909
JOHNSON FLUITEN R025005179
JOHNSON FLUITEN R025020546
JOHNSON FLUITEN R025020626
JOHNSON FLUITEN R031003361
JOHNSON FLUITEN R031020628
JOHNSON FLUITEN R031003362
JOHNSON FLUITEN R038020632
