JOHNSON FLUITEN接头RH系列技术参数
Temperature: | 1 80° |
Media: | Oil |
Seal material: | T4 |
JOHNSON FLUITEN接头R系列介绍
带 B3 密封件的 R 系列专为广泛的应用而设计。材料是针对 SIC 的石墨。R-union 非常适合水、液压油、空气和乙二醇。密封件经过微研磨以获得最佳性能。 R 接头的尺寸从 9 毫米到 150 毫米不等。单通道,双通道,带螺纹和法兰连接。优质材料、加工精度和装配过程中对细节的关注使 R-union 非常适合各种应用。所有工会都经过压力测试。R 两通的最高温度为 120 °C。无需从机器上拆卸接头即可轻松完成密封包的维修,从而减少停机时间,增加产量
The R line with B3 seals is designed for a large range of application. The materials are graphite against SIC. The R-union is perfect for water, hydraulic oil, air and glycol. The seals are micro lapped for optimal performance. The R union is available in dimensions from 9mm to 150mm. In single passage, double passage, with treaded and flanged connections. The premium materials, the machining precision and the attention to detail during assembly make the R-union perfect for a large range of applications. All unions are pressure tested. The maximum temperature for the R union is 120 °C. Repair of the seal package is easily done without dismounting the union from the machine reducing down-time to help you produce more
JOHNSON FLUITEN接头R系列选型
JOHNSON FLUITEN接头R系列其他常用型号:
JOHNSON FLUITEN R009020622
JOHNSON FLUITEN R012001963
JOHNSON FLUITEN R012002296
JOHNSON FLUITEN R012019858
JOHNSON FLUITEN R012004960
JOHNSON FLUITEN R012002295
JOHNSON FLUITEN R012020623
JOHNSON FLUITEN RH050047678
JOHNSON FLUITEN R019004475
JOHNSON FLUITEN R019020624
JOHNSON FLUITEN R019003062
JOHNSON FLUITEN R019020611
JOHNSON FLUITEN R019020625
JOHNSON FLUITEN R025010909
JOHNSON FLUITEN R025005179
JOHNSON FLUITEN R025020546
JOHNSON FLUITEN R025020626
JOHNSON FLUITEN R031003361
JOHNSON FLUITEN R031020628
JOHNSON FLUITEN R031003362
JOHNSON FLUITEN R038020632
JOHNSON FLUITEN VJOINT NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于JOHNSON FLUITEN接头RH050047678的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for JOHNSON FLUITEN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.

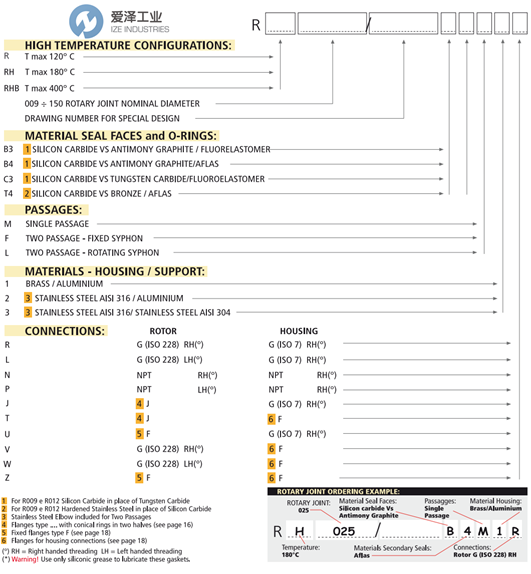

JOHNSON FLUITEN接头R系列RH050047678技术参数及选型
