REXROTH OIL CONTROL阀VEI-8A-06-NC系列技术参数
General | |
Weight kg (lbs) | 0.13 (0.29) |
Installation orientation | Optional |
Ambient temperature range °C (°F) | -30 to 60 (-22 to 140) |
Hydraulic | |
Max. operating pressure bar (psi) | 350 (5000) |
Max. proof pressure bar (psi) | 420 (6000) |
Flow range l/min. (gpm) | 0.5-40 (0.1-11) |
Fatigue cycle life cycles | 1 million cycles at 350 bar |
Max. internal leakage drops/min. | 20 |
Fluid temperature range °C (°F) | -20 to 80 (-4 to 176) |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque Nm (ft-lbs) | 39-51 (29-38) |
Filtration | Nominal value max. 10µm (NAS 8) ISO 4406 19/17/14 |
Special cavity | 019-E |
Seal kit version 03-11 | code RG19E201053010 |
Seal kit version 05 | code RG19E201052010 |
Seal kit coil | code RG12A1PNBR7010 |
Electrical | |
Type of voltage | DC voltage |
Coil type | S8-356 |
Nominal voltage | ± 10% |
Power consumption W | 20 |

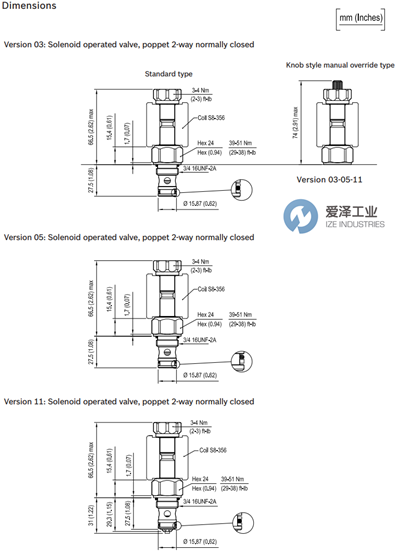

REXROTH OIL CONTROL阀VEI-8A-06-NC系列技术尺寸

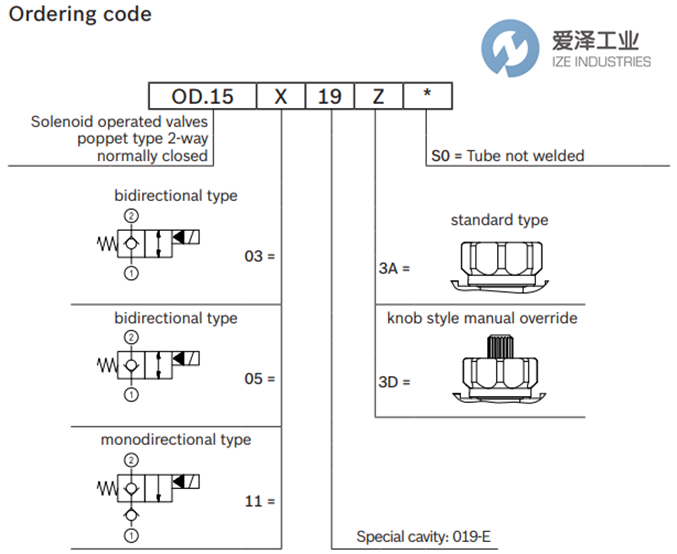

REXROTH OIL CONTROL阀VEI-8A-06-NC系列选型
REXROTH OIL CONTROL阀VEI-8A-06-NC系列其他常用型号：
REXROTH OIL CONTROL OD1503193AS00 R934000785
REXROTH OIL CONTROL OD1503193DS00 R934000786
REXROTH OIL CONTROL OD1505193AS00 R934000895
REXROTH OIL CONTROL OD1505193DS00 R934000898
REXROTH OIL CONTROL OD1511193AS000 R901091157
REXROTH OIL CONTROL OD1511193DS000 R901091158
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
