REXROTH OIL CONTROL阀VESP-12G-12A/00-2T31-N7系列技术参数
Technical data | |
General | |
Weight | 0.75 kg (1.7 lbs) |
Installation orientation | Optional |
Ambient temperature range | -25 to 60 °C (-13 to 140 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 2.5-70 l/min (0.66 - 18 gpm) |
Max. internal leakage | 15 drops/min. |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 15 to 380 mm2/s (cSt) |
Installation torque | 50 - 55 Nm (37 - 41 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 µm (NAS 8) ISO 4406 19/17/14 |
MTTFD | 150 years see RE 18350-51 |
DC | 90% * according to ISO 13849-1/2 |
Lines bodies and standard assemblies | Please refer to section “Hydaulic integrated circuit” or consult factory |
Seal kit – version 31 | code RG17E201053010 |
Electrical | |
Type of voltage | DC voltage |
Nominal voltage | ± 10% |
Power consumption | 20 W |
Duty cycle coil | 100% |
REXROTH OIL CONTROL阀VESP-12G-12A/00-2T31-N7系列技术尺寸

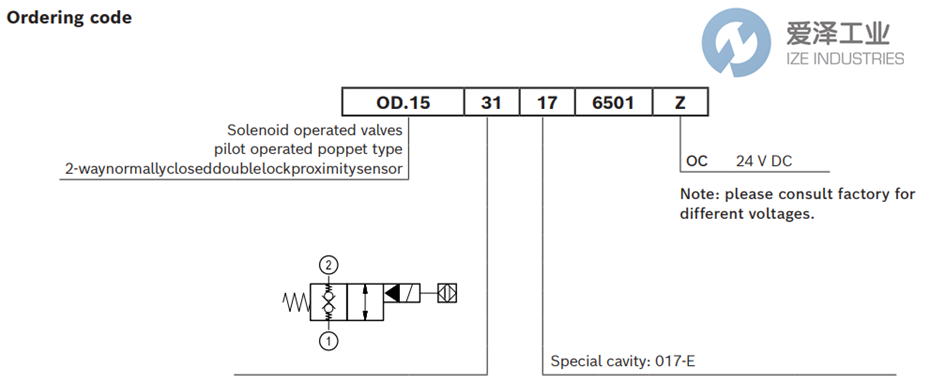

REXROTH OIL CONTROL阀VESP-12G-12A/00-2T31-N7系列选型
REXROTH OIL CONTROL阀VESP-12G-12A/00-2T31-N7系列其他常用型号：
REXROTH OIL CONTROL OD1531176501OC R934004749
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH OIL CONTROL阀OD1531176501OC R934004749的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH OIL CONTROL阀OD1531176501OC R934004749技术参数及选型
