规格描述

REXROTH阀VEI-16-08A-NA系列技术参数

Technical data
General
Weight	0.15 kg (0.33 lbs)
Installation orientation	Unrestricted
Ambient temperature range	-30 to 90 °C (-22 to 194 °F)
Hydraulic
Max. operating pressure	350 bar (5000 psi)
Flow range	0.5 - 40 l/min (0.1 - 11 gpm)
Fatigue cycle life	2 million cycles at 350 bar 150000 cycles at 420 bar
Max. internal leakage	5 drops/min. for X= 02,06,08 20 drops/min. for X= 32,10,04
Switching time	Closing ≤ 100 ms Opening ≤ 30 ms
Fluid temperature range	-20 to 80 °C (-4 to 176 °F)
Fluids	Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt)
Installation torque	39 - 51 Nm (29 - 38 ft-lbs)
Recommended degree of fluid contamination	Nominal value max. 10 µm (NAS 8) ISO 4406 19/17/14
MTTFd	150 years
Cavity	CA-08A-2N
Seal kit for X=02,06,08	code: RG08A2010520100 material no.: R901101437
Seal kit for X=32,10,04	code: RG08A2010530100 material no.: R901101544
Seal kit coil and standard cap	code: RG02Z0010000100 material no.: R930067869
Seal kit coil and protective cap only for Y=B	code: RG03Z0010000100 material no.: R930067870
Seal kit coil and protective cap only for Y=C	code: RG04Z0010000100 material no.: R930069171
Electrical
Type of voltage	DC voltage
Coil type	D36
Power consumption	20 W

产品介绍

爱泽工业（ize-industries）并不是本网站所列所有产品的授权代理商或经销商。本网站使用的所有产品名称，商标，品牌等均属于各自品牌厂家所有。本网站在产品或图片描述中，出现具有这些名称，商标，品牌等信息的产品仅用于识别目的，并非旨在表明任何与持有者的从属及授权关系。

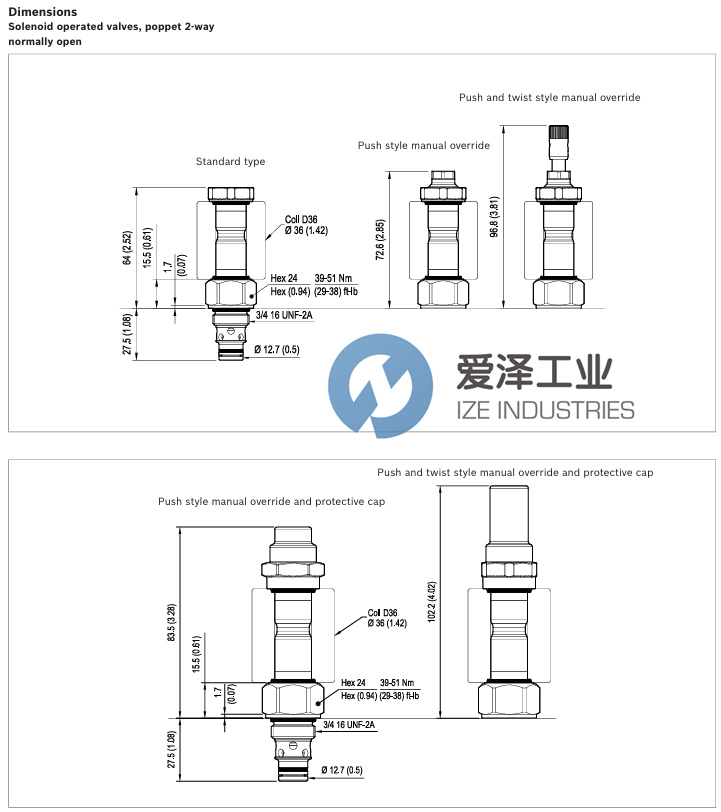

REXROTH阀VEI-16-08A-NA系列规格尺寸

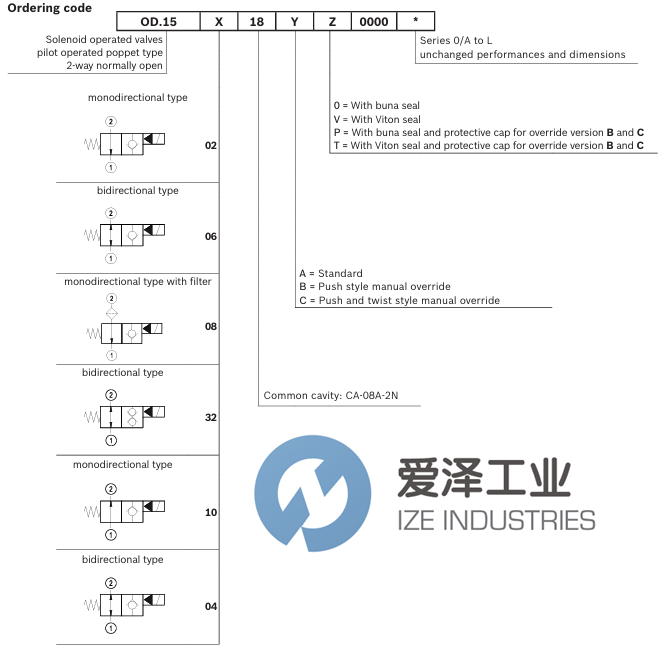

REXROTH阀VEI-16-08A-NA系列选型

REXROTH阀VEI-16-08A-NA系列其他常用型号：

REXROTH OD150218A000000 R930059442

REXROTH OD150218B000000 R930060895

REXROTH OD150218BP00000 R930060113

REXROTH OD150218C000000 R930060584

REXROTH OD150218CP00000 R930060090

REXROTH OD150618A000000 R930058435

REXROTH OD150618B000000 R930058438

REXROTH OD150618C000000 R930060128

REXROTH OD150818A000000 R930058337

REXROTH OD150818B000000 R930058340

REXROTH OD150818C000000 R930060583

REXROTH OD153218A000000 R930064101

REXROTH OD153218B000000 R930063422

REXROTH OD153218C000000 R930065002

REXROTH valve NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于REXROTH阀OD150618C000000 R930060128的疑问，请随时致电我们，爱泽工业（021-31006702）。我们将尽全力解决您的问题。

If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.

REXROTH阀VEI-16-08A-NA系列OD150618C000000 R930060128技术参数及介绍
