REXROTH OIL CONTROL阀VBSN-12U-RS系列技术参数
Technical data | |
Max. operating pressure bar (psi) | 350 (5000) |
Max. flow l/min. (gpm) | 120 (32) |
Max. internal leakage (*) drops/min. | 15 |
Fluid temperature range °C (°F) | -30 to 100 (-22 to 212) |
Installation torque Nm (ft-lbs) | 60-70 (44-52) |
Weight kg (lbs) | 0.37 (0.82) |
Cavity | SUN T-2A |
Seal kit | code: RG12U9020110100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Filtration | Nominal value max. 10µm (NAS 8) ISO 4406 19/17/14 |
Installation | No restrictions |

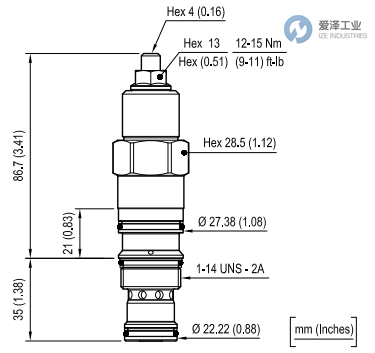

REXROTH OIL CONTROL阀VBSN-12U-RS系列技术尺寸
REXROTH OIL CONTROL阀VBSN-12U-RS系列选型
REXROTH OIL CONTROL阀VBSN-12U-RS系列其他常用型号：
REXROTH OIL CONTROL 045244038620000 R930006116
REXROTH OIL CONTROL 045244038635000 R930006117
REXROTH OIL CONTROL 045244108620000 R930006118
REXROTH OIL CONTROL 045244108635000 R930006119
REXROTH OIL CONTROL 045244428620000 R930006120
REXROTH OIL CONTROL 045244428635000 R930006121
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH OIL CONTROL阀045244038635000 R930006117的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH OIL CONTROL阀045244038635000 R930006117技术参数及选型
