NIDEC伺服电机089UDC306BAECA技术参数
Frame Size | 089 |
Motor Voltage | UD = 460 V |
Stator Length | C |
Speed | 30 = 3000 rpm |
Brake (24 V) | 6 = Parking Brake |
Connection Type | B = Power size 1.0 and Signal 90° and Rotatable |
Output Shaft | A = Keyway w/ full key installed |
Feedback Device | EC = Inductive Multi-turn EnDat |
Inertia | A = Std. + PTC |
NIDEC伺服电机Unimotor hd系列介绍
Unimotor hd 无刷交流伺服电机系列专为大扭矩密度而设计，为在快速加速和减速过程中需要高扭矩的应用提供了紧凑的低惯量解决方案。 配备高分辨率 SinCos 或绝对编码器的 Unimotor hd 电机在制造过程中预加载了电机“电子铭牌”数据。 大多数 Control Techniques 的伺服驱动器都可以读取该数据，并用于自动优化驱动器设置。 此功能简化了调试和维护，确保性能一致并节省时间。 Unimotor hd 扭矩曲线与 Digitax ST 伺服驱动器紧密匹配，可提供高达 300% 的峰值过载，从而实现更大的动态性能。
主要特征
• 扭矩范围：6.4 至 752 lb-in（0.72 至 85.0 Nm）
• 高扭矩惯量比，实现高动态性能
• 结构紧凑、功能强大
• 可选抱闸
• 符合IP65标准
• 分段定子设计
• 绕组适合 230 V 和 460 V
• 速度包括 2000、3000、4000 和 6000 rpm
• 大轴可提高扭转刚度
• 多种反馈选项：
— 增量式编码器：高精度、中分辨率
— 绝对式：中等精度、中等分辨率、单圈和多圈
— SinCos/绝对：高精度、高分辨率、单圈和多圈
— 支持 HIPERFACE (SICK) 和 EnDat (Heidenhain) 协议
— 旋转变压器：坚固耐用，适合极端应用和条件； 精度较低，分辨率中等
Designed for maximum torque density, the Unimotor hd brushless AC Servo motor series provides an exceptionally compact, low inertia solution for applications that require very high torque during rapid acceleration and deceleration profiles. Unimotor hd motors fitted with high resolution SinCos or absolute encoders are pre-loaded with the motor “electronic nameplate” data during the manufacturing process. This data can be read by most Control Techniques' servo drives and used to automatically optimize the drive settings. This feature simplifies commissioning and maintenance, ensures consistent performance and saves time. The Unimotor hd torque profile is closely matched to Digitax ST Servo drives providing up to 300% peak overload for maximum dynamic performance.
Key Features
• Torque range: 6.4 to 752 lb-in (0.72 to 85.0 Nm)
• High torque-to-inertia ratio for high-dynamic performance
• Compact and powerful
• Optional holding brake
• IP65 conformance
• Segmented stator design
• Winding to suit 230 V and 460 V
• Speeds include 2000, 3000, 4000 and 6000 rpm
• Large shafts to increase torsional rigidity
• Multiple feedback options:
— Incremental encoder: High accuracy, medium resolution
— Absolute: Medium accuracy, medium resolution, single-turn and multi-turn
— SinCos/absolute: High accuracy, high resolution, single-turn and multi-turn
— HIPERFACE (SICK) and EnDat (Heidenhain) protocols supported
— Resolver: Robust for extreme applications and conditions; lower accuracy, medium resolution

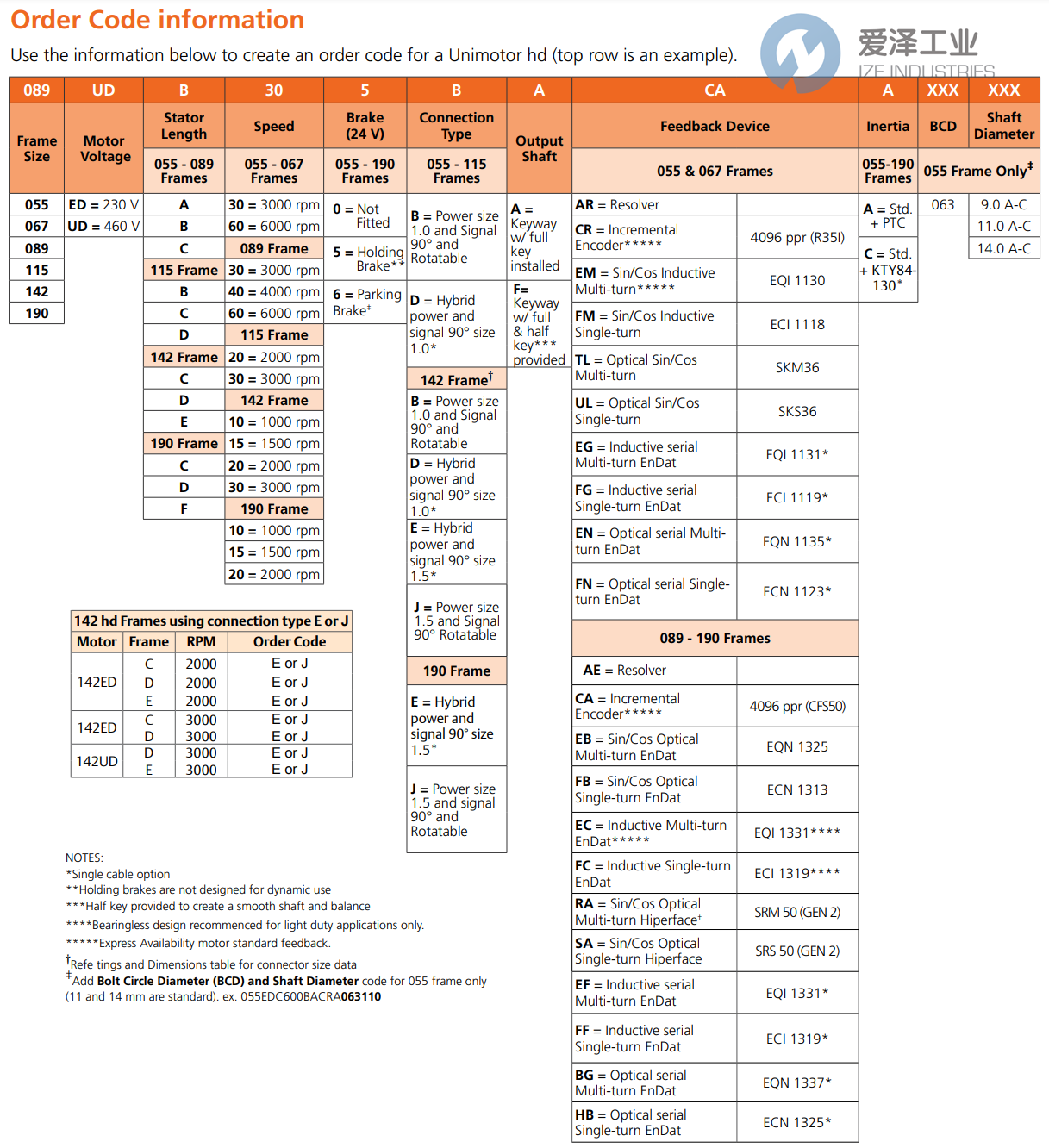

NIDEC伺服电机Unimotor hd系列选型
NIDEC伺服电机Unimotor hd系列其他常用型号：
NIDEC 089EDC300BACAA
NIDEC 089UDC305BACAA
NIDEC 089EDB300BACAA
NIDEC 089EDB400BACAA
NIDEC 089UDB305BAECA
NIDEC 089UDC300BACAA
NIDEC 089UDC306BAECA
NIDEC 089UDB300BAECA
NIDEC 089UDC600BACAA
NIDEC 089EDB306DAEFC
NIDEC 089EDA606DAEFC
NIDEC 089UDB300BAFCA
NIDEC 089UDB305BAECA_SKIT
NIDEC 089UDB306BAECA-SKIT
