CONTROL TECHNIQUES伺服电机075U3B300BACAA075140技术参数
Code | 075U3B300BACAA075140 |
Frame size | 075 |
Motor voltage | U3 = 460 V |
Stator length | 075 Frame B |
Rated speed (rpm) | 30 = 3000 |
Brake | 0 = No Brake |
Connection type | B = Power and Signal 90° and rotatable size 1.0 |
Output shaft | A = Keyway w/Full Key installed |
Feedback device | CA = Incremental Encoder (Std), 4096 ppr |
Inertia + Temp sensor | A = Standard + PTC |
BCD | 075 Std |
Shaft Diameter (ex. 110=11.0 mm) | 140 = Shaft Length (mm): 30, Frame Length: B-D |
CONTROL TECHNIQUES伺服电机Unimotor fm系列介绍
Unimotor fm 是一款高性能、无刷交流伺服电机系列，可与 Control Techniques 品牌驱动器配合使用。 “FM”代表“柔性电机”，旨在适应广泛的应用。 这些电机有六种机架尺寸，具有不同的安装布置和电机长度。 Control Techniques 的驱动器和电机旨在作为优化系统发挥作用。
Unimotor fm is a high performance, brushless AC Servo motor range matched for use with Control Techniques' brand drives. “FM” stands for “Flexible Motor” and is designed to accommodate a wide range of applications. The motors are available in six frame sizes with various mounting arrangements and motor lengths. Control Techniques' drives and motors are designed to function as an optimized system.

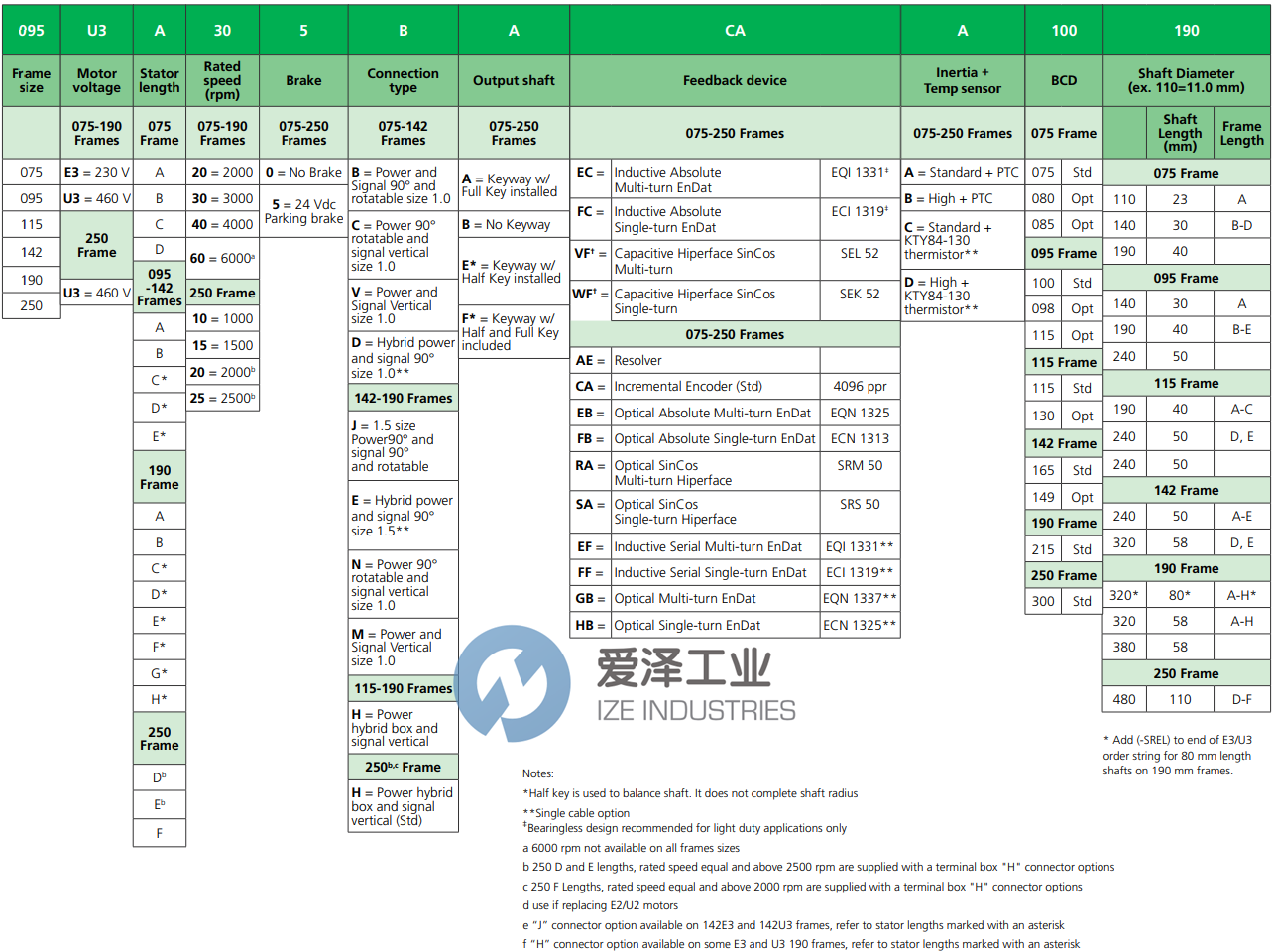

CONTROL TECHNIQUES伺服电机Unimotor fm系列选型
CONTROL TECHNIQUES伺服电机Unimotor fm系列其他常用型号：
CONTROL TECHNIQUES 075U3B300BACAA075140
CONTROL TECHNIQUES 075U3D305BAECA075140
CONTROL TECHNIQUES 075U3B305BFECA075140
CONTROL TECHNIQUES 075U3B300CAECB075140
CONTROL TECHNIQUES 095U2B300BACAA100190
CONTROL TECHNIQUES 115UDD306BAECA
CONTROL TECHNIQUES 115U3B306CAAEA115190
CONTROL TECHNIQUES SERVO MOTORS NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于CONTROL TECHNIQUES伺服电机075U3B300BACAA075140的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for CONTROL TECHNIQUES products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
CONTROL TECHNIQUES伺服电机Unimotor fm系列075U3B300BACAA075140技术参数及选型
