CONTROL TECHNIQUES伺服电机067UDA30系列技术参数
Motor frame size (mm) | 067UD |
Voltage (Vrms) | 380-480 |
Frame length | A |
Continuous stall torque (Nm) | 1.44 |
Peak torque (Nm) | 4.35 |
Standard inertia (kg cm2) | 0.3 |
Winding thermal time constant (sec) | 54 |
Standard motor weight (kg) | 1.96 |
Number of poles | 10 |
Speed 3000 (rpm) | Kt (Nm/A) = 0.8 |
Rated torque (Nm) | 1.4 |
Stall current (A) | 1.8 |
Rated power (kW) | 0.44 |
R (ph-ph) (Ohms) | 11.69 |
L (ph-ph) (mH) | 35.2 |
Recommended power conn' size | 1 |
CONTROL TECHNIQUES伺服电机Unimotor HD系列介绍
Unimotor hd 具有广泛的功能,适合广泛的工业应用:
• 扭矩范围:0.64 Nm 至 85 Nm
• 高扭矩惯量比,实现高动态性能
• 结构紧凑但功能强大
• 高能耗停车制动器
• 符合IP65标准; 安装和连接时密封,可防止水雾和灰尘
• 分段定子设计
• 由严格的性能和可靠性测试支持
• 400 V 和 220 V 逆变器电源的绕组电压
• 额定速度为 1,000 至 6,000 rpm
• 更大的轴可提高扭转刚度
• 通过 PTC 热敏电阻/可选 KTY84.130 传感器进行热保护
Unimotor hd is suitable for a wide range of industrial applications, due to it’s extensive range of features:
• Torque range: from 0.64 Nm to 85 Nm
• High torque to inertia ratio for high dynamic performance
• Compact but powerful
• High energy dissipation parking brakes
• IP65 conformance; sealed against water spray and dust when mounted and connected
• Segmented stator design
• Supported by rigorous testing for performance and reliability
• Winding voltage for inverter supply of 400 V and 220 V
• Rated speeds from 1,000 to 6,000 rpm
• Larger shafts to increase torsional rigidity
• Thermal protection by PTC thermistor/optional KTY84.130 sensor

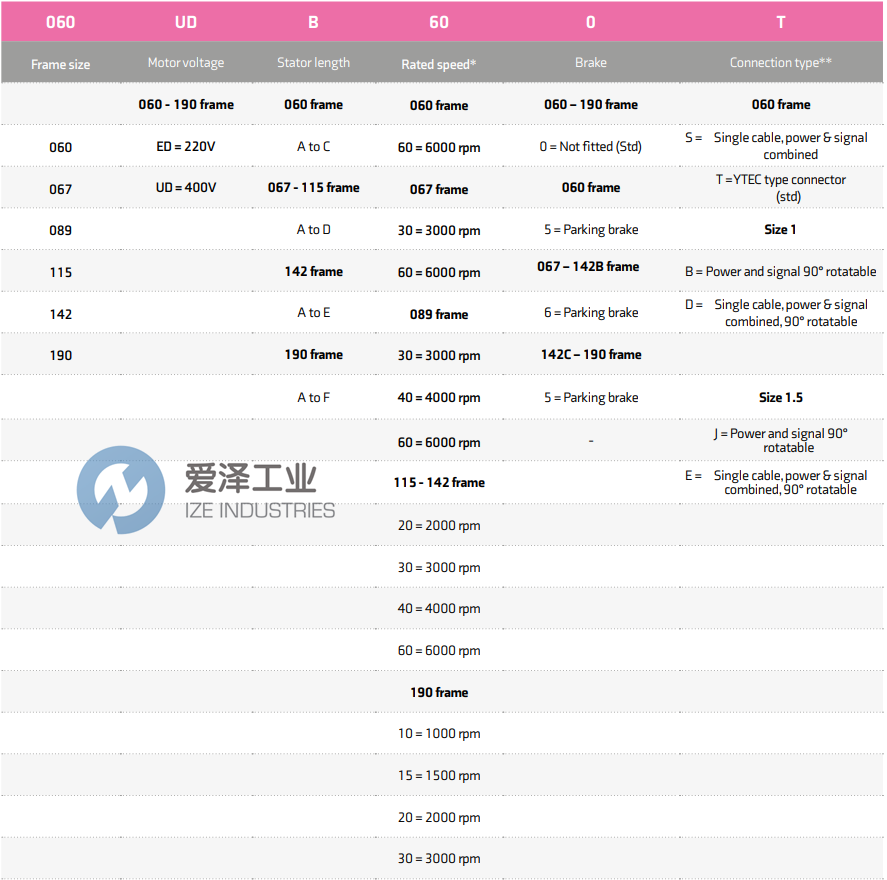

CONTROL TECHNIQUES伺服电机Unimotor HD系列选型
CONTROL TECHNIQUES伺服电机Unimotor HD系列其他常用型号:
CONTROL TECHNIQUES 067UDA300BBEGA_SKIT
CONTROL TECHNIQUES 060UDA600TFCTA
CONTROL TECHNIQUES 060UDB600TFCTA
CONTROL TECHNIQUES 060UDC600TFCTA
CONTROL TECHNIQUES 067UDA300BFCRA
CONTROL TECHNIQUES 067UDB300BFCRA
CONTROL TECHNIQUES 067UDC300BFCRA
CONTROL TECHNIQUES 067UDD300BFCRA
CONTROL TECHNIQUES 089UDA300BFCAA
CONTROL TECHNIQUES 089UDB300BFCAA
CONTROL TECHNIQUES 089UDC300BFCAA
CONTROL TECHNIQUES 089UDD300BFCAA
CONTROL TECHNIQUES 115UDA300BFCAA
CONTROL TECHNIQUES 115UDB300BFCAA
