REXROTH OIL CONTROL阀VESP-16G-16A/00-2A-N7系列技术参数
Technical data | |
General | |
Weight | 0.9 kg (2 lbs) |
Installation orientation | Optional |
Ambient temperature range | -25 to 60 °C (-13 to 140 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 5 - 150 l/min (1 - 40 gpm) |
Max. internal leakage | 20 drops/min. |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 15 to 380 mm2/s (cSt) |
Installation torque | 80 - 100 Nm (59 - 74 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 µm (NAS 8) ISO 4406 19/17/14 |
DC | 99% according to ISO 13849-1/2 |
Seal kit | code RG21E201052010 |
Type of voltage | DC voltage |
Nominal voltage | ± 10% |
Power consumption | 30 W |

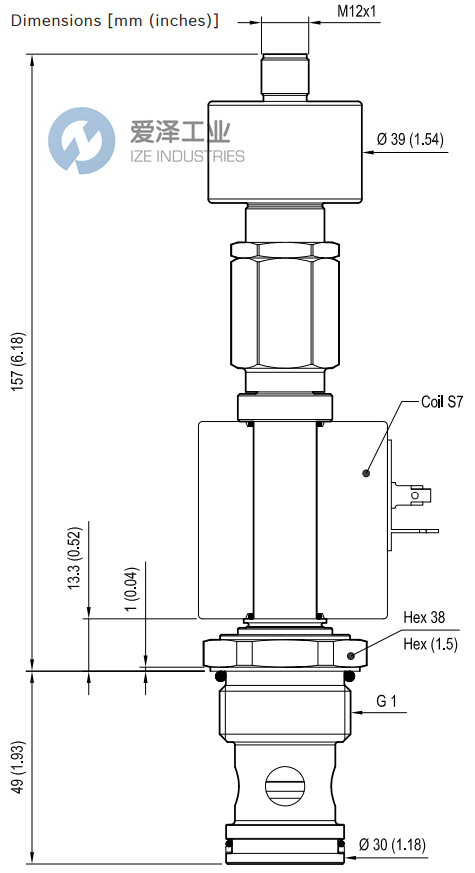

REXROTH OIL CONTROL阀VESP-16G-16A/00-2A-N7系列技术尺寸

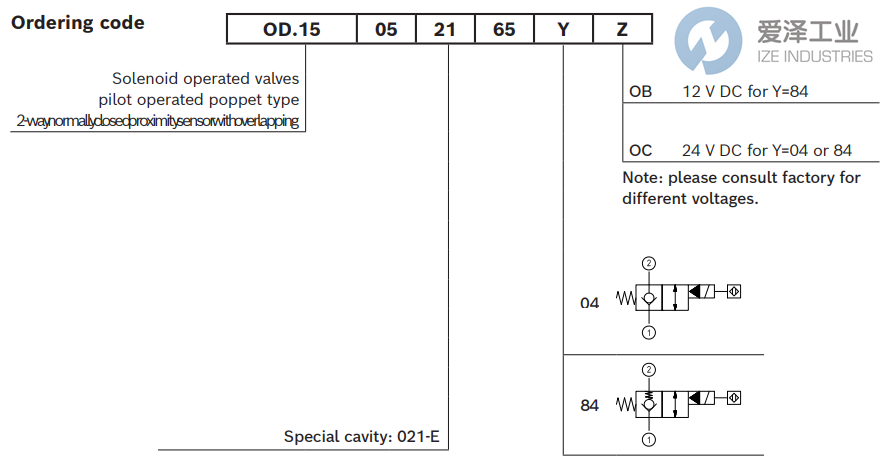

REXROTH OIL CONTROL阀VESP-16G-16A/00-2A-N7系列选型
REXROTH OIL CONTROL阀VESP-16G-16A/00-2A-N7系列其他常用型号：
REXROTH OILCONTROL OD1505216504OC R934004627
REXROTH OILCONTROL OD1505216584OC R934004628
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH OIL CONTROL阀OD1505216504OC R934004627的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
REXROTH OIL CONTROL阀OD1505216504OC R934004627技术参数及选型
