GUTEKUNST弹簧D-288X-03技术参数
| ||
Material | EN 10270-1 | |
Spring ends | Closed and ground | |

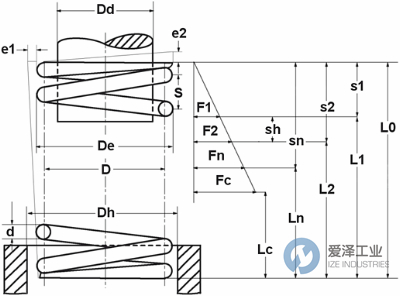

d | 2.9 mm | Wire diameter |
D | 16.5 mm | Mean coil diameter |
De | 19.4 mm | Outer coil diameter |
Dd | 12.9 mm | maximum diameter of mandrel |
Dh | 20.4 mm | minimum diameter of bush |
L0 | 32 mm | unstressed spring length |
Fn | 538.948 N | maximum force in static use |
Ln | 19.4 mm | Minimum length in static use |
sn | 12.6 mm | Maximum spring deflection in static use |
Fndyn | 421.321 N | maximum force in dynamic use |
Lndyn | 22.15 mm | Minimum length in dynamic use |
shdyn | 3.76 mm | Maximum stroke in dynamic use |
S | 7.76 mm | pitch of spring |
n | 3.75 pc. | number of active coils |
R | 42.774 N/mm | Spring rate |
Weight | 15.5621 g | weight of one spring |
Fntol | 37.65 N | (+/-) tolerance of maximum force in static use |
Fndtol | 35.13 N | (+/-) tolerance of maximum dynamic force |
Detol | 0.35 mm | (+/-) tolerances of outer coil diameter |
L0tol | 0.65 mm | (+/-) tolerance of unstressed spring length |
GUTEKUNST弹簧其他常用型号：
GUTEKUNST D-288X-02
GUTEKUNST D-288X-03
GUTEKUNST D-288X-04
GUTEKUNST D-288X-05
GUTEKUNST D-288X-06
GUTEKUNST D-288X-07
GUTEKUNST D-288X-08
GUTEKUNST D-288X-09
GUTEKUNST D-288X-10
GUTEKUNST D-288X-11
Compression springs NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于GUTEKUNST弹簧D-288X-03的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
