BRAHMA电磁阀E6G*SR8*3/8 *GMO技术参数

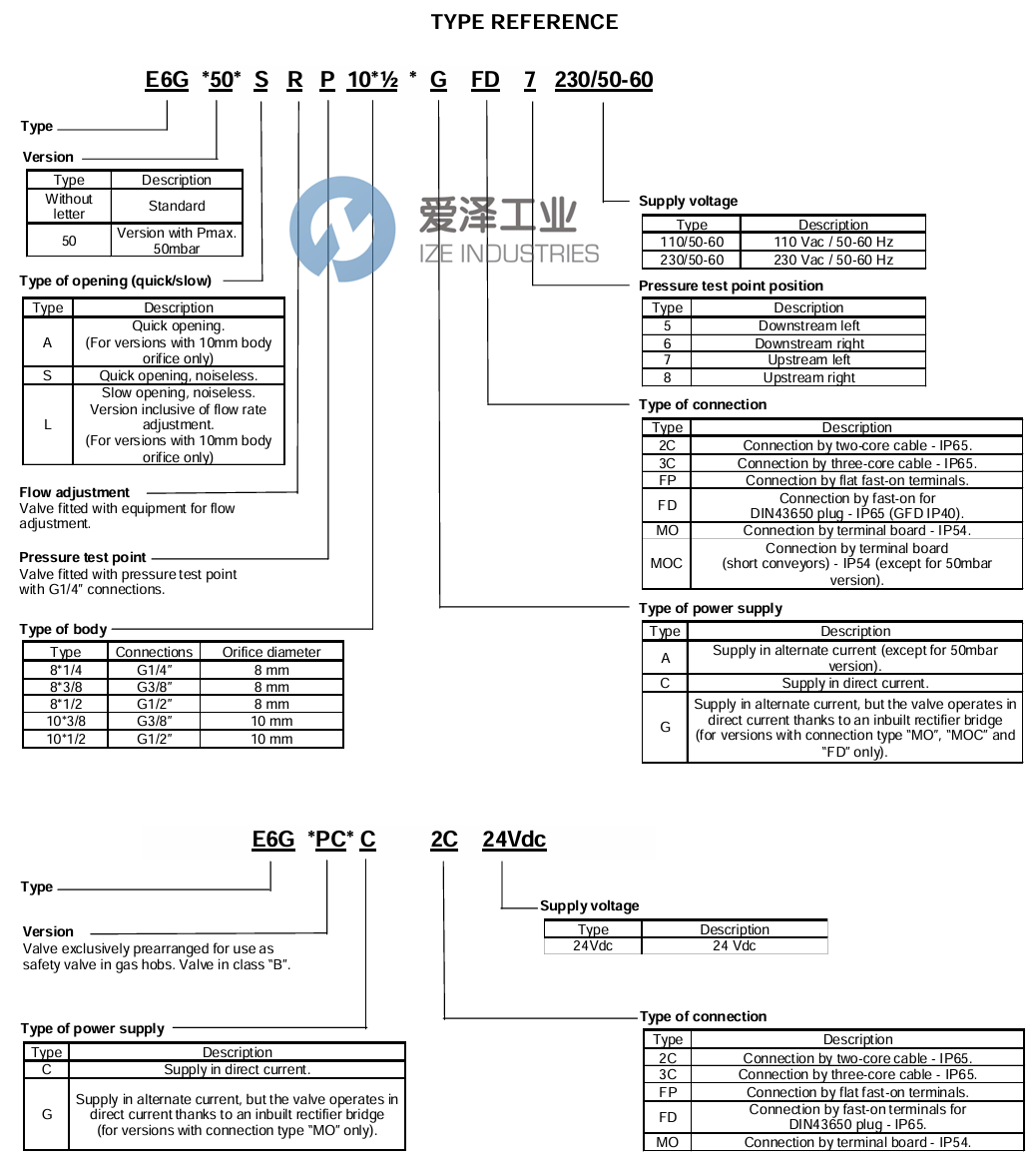

Type | E6G |
Version | Without letter = Standard |
Type of opening (quick/slow) | S = Quick opening, noiseless. |
Flow adjustment | R = Valve fitted with equipment for flow adjustment. |
Type of body | 8*3/8 = Connections: G3/8", Orifice diameter: 8 mm |
Type of power supply | G = Supply in alternate current, but the valve operates in direct current thanks to an inbuilt rectifier bridge |
Type of connection | MO = Connection by terminal board - IP54. |
BRAHMA电磁阀E6G系列介绍
该系列电磁阀为常闭型，适用于民用和工业应用，采用交流或直流供电。这些阀门分为两组：8 毫米或 10 毫米孔口。型号后面标有“S”或“L”的阀门配有直流工作线圈，可使其动作尽可能无噪音。阀门可配备上游或下游压力测试点（不包括带 G1/4” 连接的阀门），并且仅适用于 10 毫米孔口版本，阀门配备液压制动装置，可缓慢打开；在这种情况下，还可以配备可调节的快速打开初始流量。
This series of solenoid valves is of normally closed type, suitable for civil and industrial applications, supplied with alternate or direct current. These valves are divided into two groups: with 8 mm or 10 mm orifice. The valves marked with “S” or “L” after their type reference have a coil operating in direct current, which has enabled to make their actions as noiseless as possible. It is possible to have valves provided with upstream or downstream pressure test point (excluding the ones with G1/4” connection) and, for 10 mm orifice versions only, valves equipped with hydraulic brake unit, enabling slow opening; in this case it is also possible to have an adjustable quick opening initial flow.
BRAHMA电磁阀E6G系列选型
BRAHMA电磁阀E6G系列其他常用型号：
BRAHMA E6G*S 8*1/4*GMO
BRAHMA E6G*SR 8*1/4*GMO
BRAHMA E6G*S 8*3/8*GMO
BRAHMA E6G*SR 8*3/8*GMO
BRAHMA E6G*S 8*1/2*GMO
BRAHMA E6G*SR 8*1/2*GMO
