BRAHMA电磁阀E6G*S8*3/8 *GMO技术参数
Type | E6G |
Version | Without letter = Standard |
Type of opening (quick/slow) | S = Quick opening, noiseless. |
Type of body | 8*3/8 = Connections: G3/8", Orifice diameter: 8 mm |
Type of power supply | G = Supply in alternate current, but the valve operates in direct current thanks to an inbuilt rectifier bridge |
Type of connection | MO = Connection by terminal board - IP54. |
BRAHMA电磁阀E6G系列介绍
该系列电磁阀为常闭型，适用于民用和工业应用，采用交流或直流供电。这些阀门分为两组：8 毫米或 10 毫米孔口。型号后面标有“S”或“L”的阀门配有直流工作线圈，可使其动作尽可能无噪音。阀门可配备上游或下游压力测试点（不包括带 G1/4” 连接的阀门），并且仅适用于 10 毫米孔口版本，阀门配备液压制动装置，可缓慢打开；在这种情况下，还可以配备可调节的快速打开初始流量。
This series of solenoid valves is of normally closed type, suitable for civil and industrial applications, supplied with alternate or direct current. These valves are divided into two groups: with 8 mm or 10 mm orifice. The valves marked with “S” or “L” after their type reference have a coil operating in direct current, which has enabled to make their actions as noiseless as possible. It is possible to have valves provided with upstream or downstream pressure test point (excluding the ones with G1/4” connection) and, for 10 mm orifice versions only, valves equipped with hydraulic brake unit, enabling slow opening; in this case it is also possible to have an adjustable quick opening initial flow.

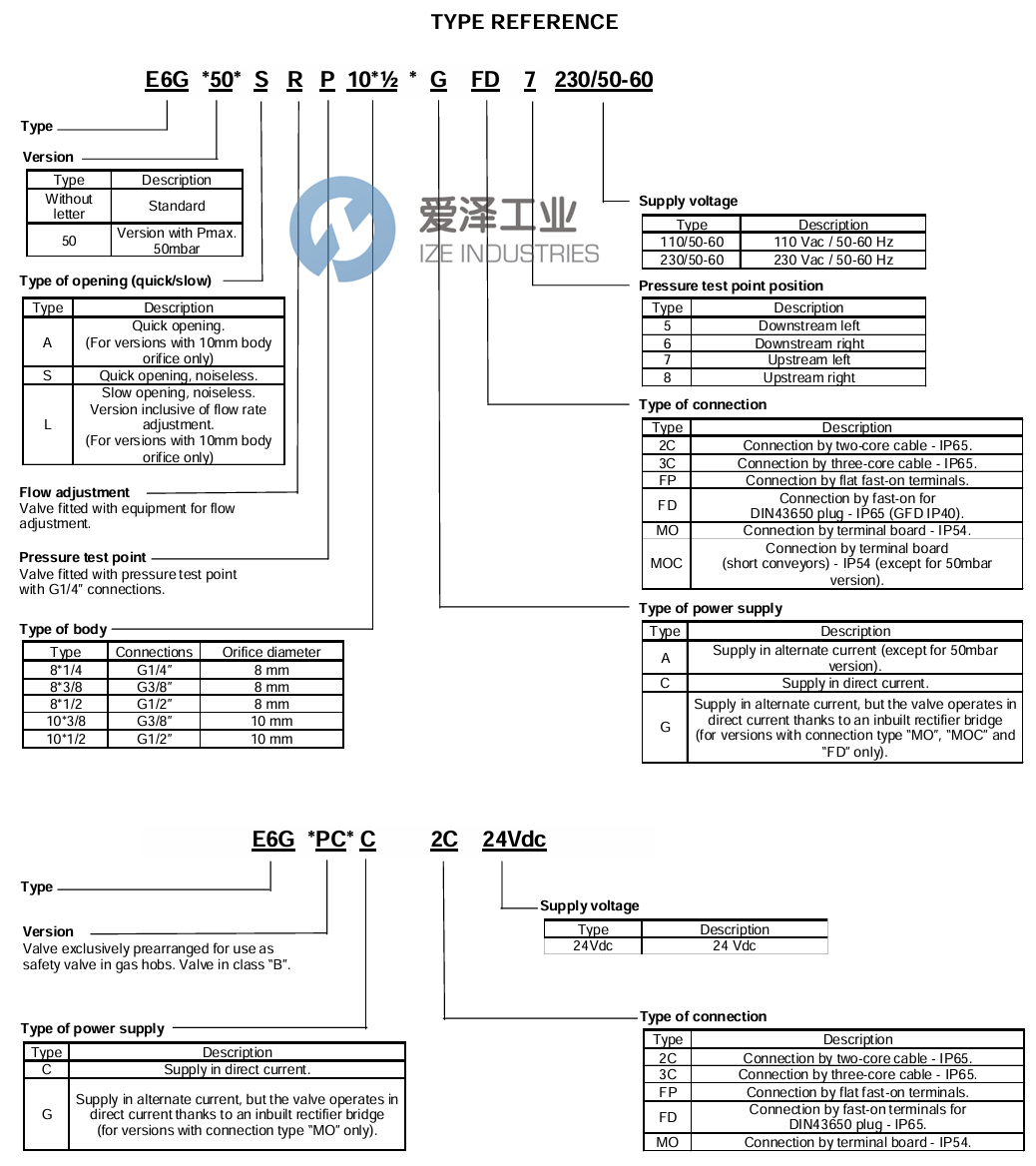

BRAHMA电磁阀E6G系列选型
BRAHMA电磁阀E6G系列其他常用型号：
BRAHMA E6G*S 8*1/4*GMO
BRAHMA E6G*SR 8*1/4*GMO
BRAHMA E6G*S 8*3/8*GMO
BRAHMA E6G*SR 8*3/8*GMO
BRAHMA E6G*S 8*1/2*GMO
BRAHMA E6G*SR 8*1/2*GMO
BRAHMA E6G*SR10*3/8*GMO
BRAHMA E6G*SR10*1/2*GMO
BRAHMA VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于BRAHMA电磁阀E6G*S8*3/8 *GMO的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for BRAHMA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
BRAHMA电磁阀E6G系列E6G*S8*3/8 *GMO技术参数及选型
