GO REGULATOR调节器H2-1L33Q3E4111技术参数
Code | H2-1L33Q3E4111 |
Series | [H2] HPR-2 Series |
Body material | [1] 316L stainless steel, stainless steel diaphragm |
Port configuration | [L] |
Temperature range / heating type | [3] 130°-300°F (54-149°C) |
Heater wattage | [3] 100W |
Seat material | [Q] PEEK™ |
Flow coefficient (cv) | [3] 0.06 |
Outlet range | [E] 0–50 psig |
Heater block type | [4] 230 VAC |
Heater block porting | [1] Standard block |
Cap assembly | [1] Tamper-proof, standard, stainless steel |
Options | [1] TCO thermistor |
GO REGULATOR调节器HPR-2系列介绍
HPR-2 系列加热压力调节器旨在为进入仪器系统的样品提供热量。它可用于预热液体,防止气体凝结或在气体分析之前蒸发液体。HPR-2 的模块化设计包括热交换器和压力控制部分。压力控制部分仿照 PR-1 减压调节器久经考验的设计,提供同样出色的出口压力稳定性。热交换器部分由主体和热交换元件组成。热交换元件使用 GO Regulator 独特的螺旋包裹筛网作为热交换表面。该筛网具有高达 100 平方英寸的传热面积,精确的设计迫使所有样品流通过元件。HPR-2 系列汽化减压调节器均已获得 CSA 和 ATEX 认证。该装置的电气元件牢固地安装在 A、B、C、D 级导管中,确保环境和控制器之间始终有足够的火焰路径。通过使用可选的 TCO(热切断)加热器筒,可以进一步增强安全性。此功能使设备能够达到 T3 等级,功率高达 250 瓦(250 瓦为 CSA 的 T2C 等级)。
The HPR-2 Series heated pressure regulator is designed to supply heat to samples entering instrumentation systems. It can be used to preheat liquids, to prevent condensation of gases or to vaporize liquids prior to gas analysis. The modular design of the HPR-2 consists of heat exchanger and pressure control sections. The pressure control section is patterned after the time proven design of the PR-1 pressure reducing regulator and provides the same excellent outlet pressure stability. The heat exchanger section is made up of a body and heat exchange element. The heat exchange element uses GO Regulator’s unique spiral wrapped screen as the heat exchange surface. This screen has up to 100 square inches of heat transfer area and precise design forces all sample fl ow to pass through the element. The HPR-2 Series of vaporizing pressure reducing regulators are both CSA and ATEX approved. The electrical components of this unit are securely housed in a Class A, B, C, D condulet assuring that there is always an adequate fl ame path between the environment and the controller. Safety considerations can be further enhanced by using the optional TCO (Thermal Cut Out) heater cartridge. This feature enables the unit to boast a T3 rating with up to 250 watts of power (250w is rated T2C for CSA).

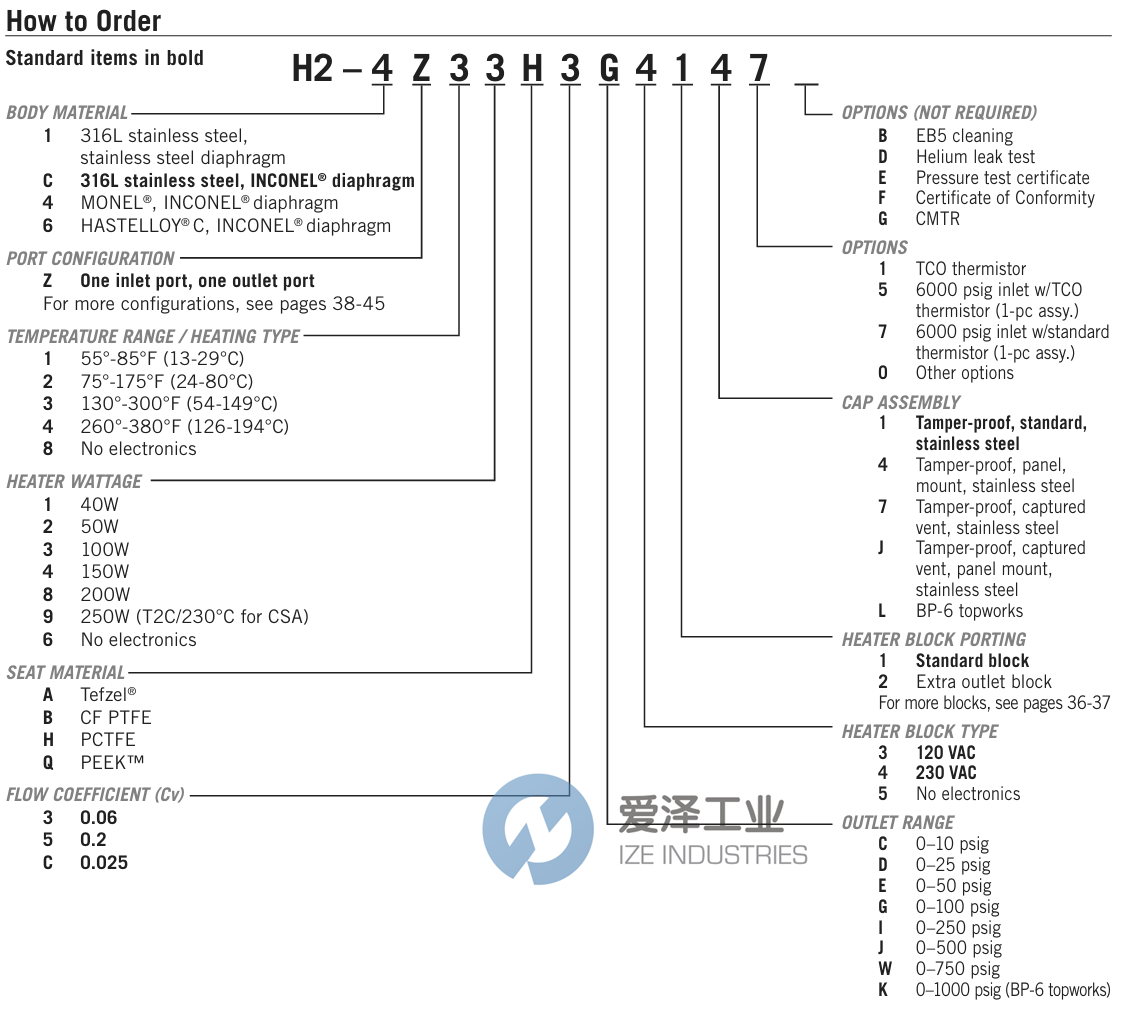

GO REGULATOR调节器HPR-2系列选型
GO REGULATOR调节器HPR-2系列其他常用型号:
GO REGULATOR H2-1Z21A3E9111
GO REGULATOR H2-1Z23C3I421B
GO REGULATOR H2-1Y24Q3E4111
GO REGULATOR H2-1L33Q3E4111
GO REGULATOR H2-1Z33Q3G411
GO REGULATOR H2-1Z34Q3E4111
GO REGULATOR H2-1Z39B3E4111
GO REGULATOR H2-1Z44A3E4111
GO REGULATOR H2-1Z55B3E111
