GO调节器HPR-2系列技术参数
CONSTRUCTION | 316L stainless steel |
OUTLET PRESSURES | 0–10, 0–25, 0–50, 0–100, 0–250, and 0–500 psig |
INLET PRESSURE | up to 6000 psig at 380° F (193° C) |
OPERATING TEMPERATURE | up to 550° F (285° C) |
CV COEFFICIENTS | 0.06, 0.025, 0.2 |
INLET CONNECTIONS | 1⁄8˝ FNPT |
OUTLET CONNECTIONS | ¼˝ FNPT |
GO调节器HPR-2系列介绍
HPR-2 系列加热压力调节器旨在为进入仪器系统的样品提供热量。 它可用于预热液体、防止气体冷凝或在气体分析之前使液体蒸发。 HPR-2 的模块化设计由热交换器和压力控制部分组成。 压力控制部分采用经过时间验证的 PR-1 减压调节器设计，并提供同样出色的出口压力稳定性。 热交换器部分由主体和热交换元件组成。 换热元件采用GO Regulator独特的螺旋缠绕筛网作为换热器表面。 该屏幕具有高达 100 平方英寸的传热面积，精确的设计迫使所有样品流通过该元件。
The HPR-2 Series heated pressure regulator is designed to supply heat to samples entering instrumentation systems. It can be used to preheat liquids, to prevent condensation of gases or to vaporize liquids prior to gas analysis. The modular design of the HPR-2 consists of heat exchanger and pressure control sections. The pressure control section is patterned after the time-proven design of the PR-1 pressure reducing regulator and provides the same excellent outlet pressure stability. The heat exchanger section is made up of a body and heat exchange element. The heat exchange element uses GO Regulator's unique spiral-wrapped screen as the heat exchanger surface. This screen has up to 100 square inches of heat transfer area and precise design forces all sample fl ow to pass through the element.

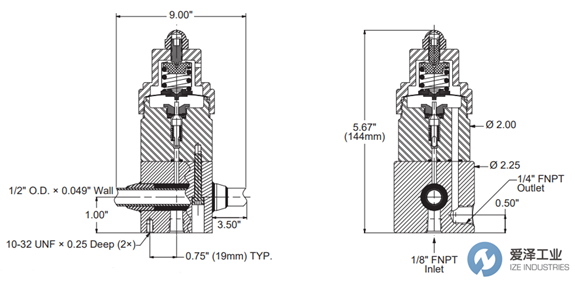

GO调节器HPR-2系列技术尺寸

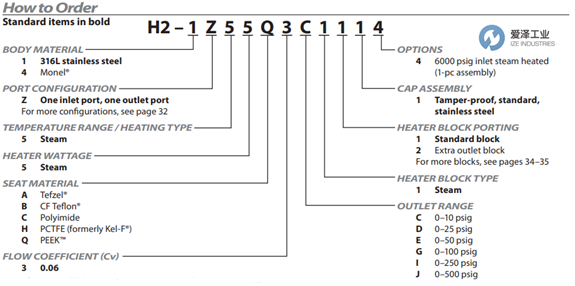

GO调节器HPR-2系列选型
GO调节器HPR-2系列其他常用型号：
GO H2-1Z55C3E111
GO H2-1Z55H3G111
GO H2-1Z55C5G111
GO H2-1Z55H3D111
GO H2-1Z55H3111
GO H2-1Z55H3E111
GO H2-1Z55Q3G111
GO H2-1Z55Q3D111
GO H2-1Z55Q3111
GO H2-1Z55Q3E111
GO H2-1Z55C5D111
GO H2-1Z55C3J111
GO H2-1Z55Q3J111
GO Regulators NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于GO调节器H2-1Z55Q3J111的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for GO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
GO调节器HPR-2系列H2-1Z55Q3J111技术参数及选型
