TESCOM减压阀44-3400系列技术参数
OPERATING PARAMETERS | |
Maximum Inlet Pressure | 3500 psig / 241 bar |
Outlet Pressure Ranges | 0-25, 0-50, 0-100, 0-150, 0-250 psig |
Design Outlet Proof Pressure | 150% of maximum rated pressure |
Operating Temperature | -40°F to 165°F / -40°C to 74°C |
Flow Capacity | Cv = 0.05 |
Leakage | Internal: Bubble-tight |
Maximum Operating Torque | 10 in-lbs / 1.0 N•m |
MEDIA CONTACT MATERIALS | |
Body | 316 Stainless Steel, Brass or Nickel Alloy (Monel®) |
Bonnets | 300 Series Stainless Steel or Brass |
Diaphragms | 316 Stainless Steel or Cobalt Chrome Nickel Alloy (Eligiloy®) |
Seats | PTFE |
Remaining Parts | 316 Stainless Steel and Brass (for Brass models) |
OTHER | |
Connections | 1/4" NPTF inlet, outlet and gauge port |
Cleaning | CGA 4.1 and ASTM G93 |
Weight (without gauges) | 3 lbs / 1.4 kg |
TESCOM减压阀44-3400系列介绍
44-3400 系列是一种紧凑、轻便的高纯度两级气瓶调节器，适用于低于 5 SCFM / 141 SLPM 的特种气体、腐蚀性气体和易燃气体。防扩散金属对金属隔膜密封确保气体纯度和完整性。非常适用于用于分析仪、激光器和实验室应用的特种气体和工业气体的高压气瓶。
特征
无论入口压力波动如何，都能提供连续、准确的出口压力
提供入口压力每 100 psig / 6.9 bar 变化 0.04 psig / 3 mbar 的衰减入口特性
具有独特的金属对金属隔膜到阀体密封
隔膜盘旋以提高准确性和灵敏度
提供 316 不锈钢、黄铜或蒙乃尔合金
提供符合 NACE 标准的设计
44-3400 Series is a compact, lightweight high purity two-stage cylinder regulator for specialty, corrosive and pyrophoric gases less than 5 SCFM / 141 SLPM. Diffusion-resistant metal-to-metal diaphragm seal ensures gas purity and integrity. Ideal for use in high pressure gas cylinders for specialty and industrial gases used with analyzers, lasers, and laboratory applications.
Features
Provides a continuous, accurate outlet pressure regardless of inlet pressure fluctuations
Offers a decaying inlet characteristic of 0.04 psig / 3 mbar per 100 psig / 6.9 bar change in inlet pressure
Features a unique metal-to-metal diaphragm to body seal
Diaphragms are convoluted for greater accuracy and sensitivity
Available in 316 Stainless Steel, Brass or Monel
NACE compliant designs are available

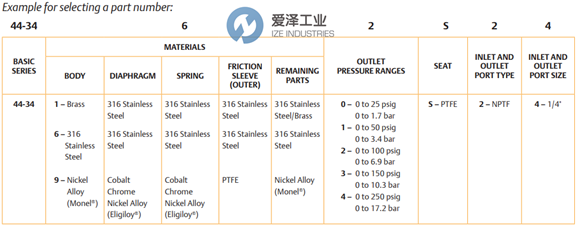

TESCOM减压阀44-3400系列选型
TESCOM减压阀44-3400系列其他常用型号：
TESCOM 44-3460S24
TESCOM 44-3461S24
TESCOM 44-3462S24
TESCOM 44-3463S24
TESCOM 44-3464S24
TESCOM 44-3410S24
TESCOM 44-3411S24
TESCOM 44-3412S24
TESCOM 44-3413S24
TESCOM 44-3414S24
TESCOM 44-3490S24
TESCOM 44-3491S24
TESCOM 44-3492S24
TESCOM 44-3493S24
TESCOM 44-3494S24
