TESCOM调节器44-3200系列技术参数
OPERATING PARAMETERS | |
Maximum Inlet Pressure | 500, 3000 psig / 34.5, 207 bar |
Outlet Pressure Ranges | 0-25, 0-50, 0-100, 0-150, 0-200 psig |
Design Proof Pressure | 150% of rated pressure |
Leakage | Internal: Bubble-tight |
Operating Temperature | -40°F to 140°F / -40°C to 60°C |
Flow Capacity | Cv = 1.0 |
MEDIA CONTACT MATERIALS | |
Body | Brass, 316 Stainless Steel |
Bonnet | 300 Series Stainless Steel |
Diaphragm | 316 Stainless Steel |
Seat | 3000 psig / 207 bar Inlet: PCTFE |
Seat Retainer | Nitronic 60 |
Seal | PTFE |
Remaining Parts | 316 Stainless Steel |
OTHER | |
Cleaning | CGA 4.1 and ASTM G93 |
Weight (without gauges) | 3.5 lbs / 1.6 kg |
TESCOM调节器44-3200系列介绍
44-3200 系列是一款紧凑型、高流量、高纯度单级调节器，适用于 5-50 SCFM / 141-1415 SLPM 的特种、易燃和工业气体流量。防扩散金属隔膜密封确保气体纯度和完整性。应用于实验室和使用点气体系统、激光辅助和谐振器气体、手套箱和隔离器。
44-3200 Series is a compact, high flow, high purity single-stage regulator for specialty, flammable and industrial gas flows of 5-50 SCFM / 141-1415 SLPM. Diffusion-resistant metal diaphragm seal ensures gas purity and integrity. Ideal for laboratory and point-of-use gas systems, laser assist and resonator gases, glove box and isolators.

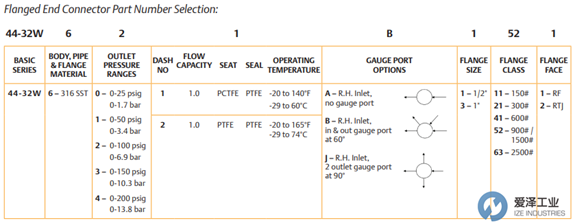

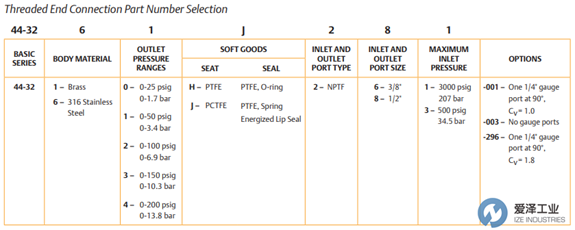

TESCOM调节器44-3200系列选型
TESCOM调节器44-3200系列其他常用型号：
TESCOM 44-3262JR91-145
TESCOM 44-3262H262-296
TESCOM 44-3261J281
TESCOM 44-32W621B1521
TESCOM 44-3213H282-296、
TESCOM Regulators NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于TESCOM调节器44-3262JR91-145的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for TESCOM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
TESCOM调节器44-3200系列44-3262JR91-145技术参数及选型
