EL-O-MATIC执行器FS0100.NM10CWALL.YD19SNA.00XX技术参数
Code | FS0100.NM10CWALL.YD19SNA.00XX |
Type | [FS] Spring-Return |
Size | [0100] Size 0100 |
Rotation angle | [N] 90° rotation angle |
Threads | [M] Metric ISO 5211 |
Spring Set | [10] Spring Set 10 |
Rotation direction | [CW] Spring to Close/Clock Wise |
Pinion Material | [AL] High Grade Aluminum, Hard anodized |
Valve Interface | [LY] Large interface with center plate (DIN3337) |
Valve Stem Connection | [D19] |
Temperature Range | [S] Standard: -20 °C to +80 °C (-4 °F to +176 °F) |
Visual Indication Code | [N] No Visual Indication |
Finish | [A] Standard coating (EL-O-Matic Yellow |
Internal code 1 | [00] Standard |
Miscellaneous options | [XX] Standard |
EL-O-MATIC执行器F系列介绍
EL-O-Matic F 系列是齿条齿轮执行器，有 13 种尺寸，包括弹簧复位或双作用型号。 该执行器的“安装即忘记”设计为各种直角回转阀门应用提供了性能。 EL-O-matic F 系列采用粉末涂层，并配有特殊的高耐腐蚀铝制小齿轮设计和不锈钢紧固件，从而实现了持久耐用的执行器设计。
The EL-O-Matic F-series is a rack & pinion actuator, available in 13 sizes as spring return or double acting models. The actuator's “Fit & Forget“ design provides the optimum performance for a wide range of quarter turn valve applications. The EL-O-matic F-series are powder coated and comes with a special high corrosion resistant aluminum pinion design and stainless steel fasteners, resulting in a long lasting durable actuator design.

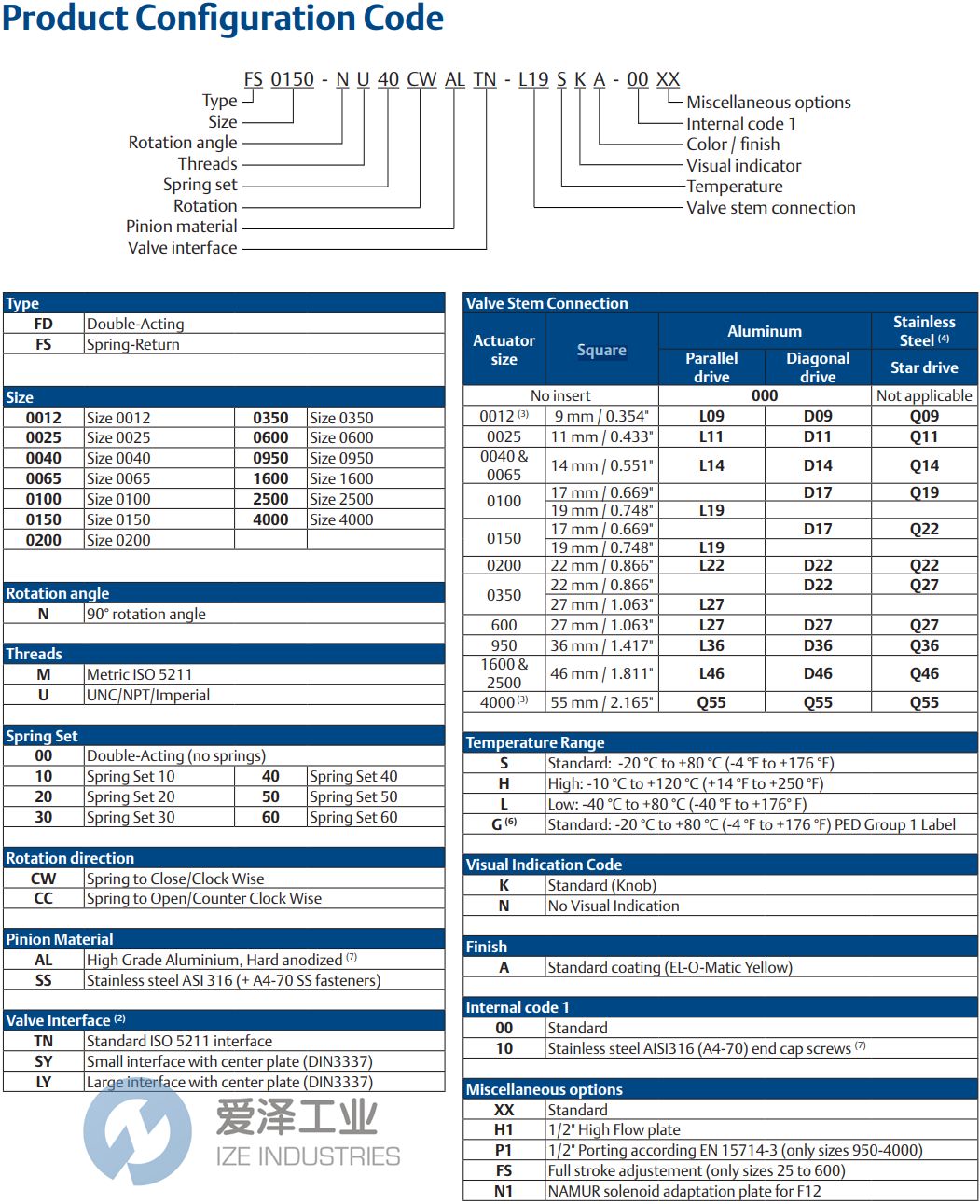

EL-O-MATIC执行器F系列选型
EL-O-MATIC执行器F系列其他常用型号：
EL-O-MATIC FS0100.NM10CWALL.YD19SNA.00XX
EL-O-MATIC FS0100.NM40CWALS.YD14SNA.00XX
EL-O-MATIC FS0100.NU40CWALTN-L19LKA-00XX
EL-O-MATIC FS0100.NM50CWALL.YD17SNA.00XX
EL-O-MATIC FS0100.NM30CWALL.YD17SNA.00XX
EL-O-MATIC Actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于EL-O-MATIC执行器FS0100.NM10CWALL.YD19SNA.00XX的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for EL-O-MATIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
EL-O-MATIC执行器F系列FS0100.NM10CWALL.YD19SNA.00XX技术参数及选型
