EL-O-MATIC执行器FD0200.NM00CWALL.YD22SNA.00XX技术参数
Code | FD0200.NM00CWALL.YD22SNA.00XX |
Type | FD = Double-Acting |
Size | 0200 = Size 0200 |
Rotation angle | N = 90° rotation angle |
Threads | M = Metric ISO 5211 |
Spring Set | 00 = Double-Acting (no springs) |
Rotation direction | CW = Spring to Close/Clock Wise |
Pinion Material | AL = High Grade Aluminum, Hard anodized |
Valve Interface | LY = Large interface with center plate (DIN3337) |
Valve Stem Connection | D22 = Aluminum, 22 mm / 0.866", Parallel drive |
Temperature Range | S = Standard: -20 °C to +80 °C (-4 °F to +176 °F) |
Visual Indication Code | N = No Visual Indication |
Finish | A = Standard coating (EL-O-Matic Yellow) |
Internal code 1 | 00 = Standard |
Miscellaneous options | XX = Standard |
EL-O-MATIC执行器F系列介绍
EL-O-Matic F 系列是齿条齿轮执行器,有 13 种尺寸,包括弹簧复位或双作用型号。 该执行器的“安装即忘记”设计为各种直角回转阀门应用提供了性能。 EL-O-matic F 系列采用粉末涂层,并配有特殊的高耐腐蚀铝制小齿轮设计和不锈钢紧固件,从而实现了持久耐用的执行器设计。
The EL-O-Matic F-series is a rack & pinion actuator, available in 13 sizes as spring return or double acting models. The actuator's “Fit & Forget“ design provides the optimum performance for a wide range of quarter turn valve applications. The EL-O-matic F-series are powder coated and comes with a special high corrosion resistant aluminum pinion design and stainless steel fasteners, resulting in a long lasting durable actuator design.

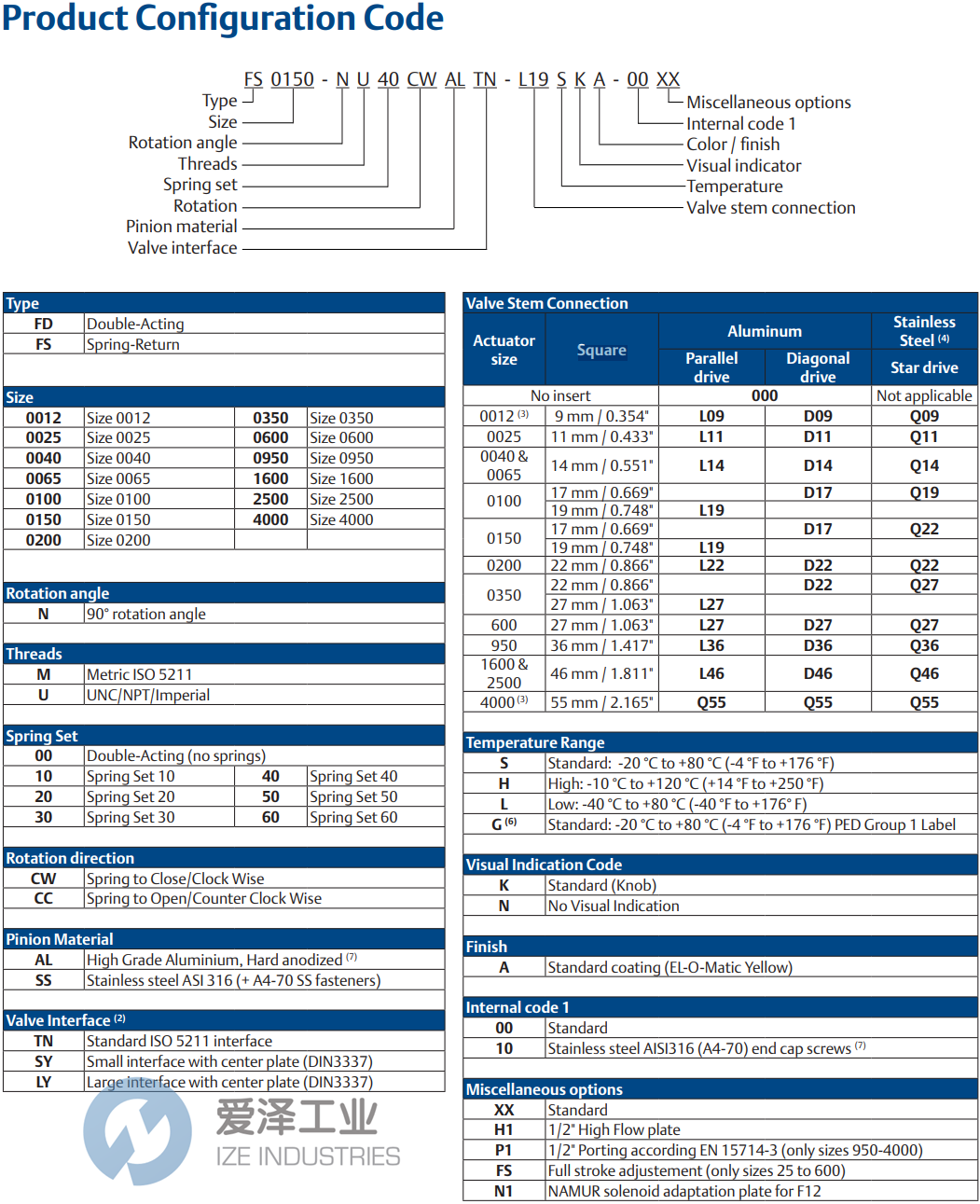

EL-O-MATIC执行器F系列选型
EL-O-MATIC执行器F系列其他常用型号:
EL-O-MATIC FD0100.NU00CWALT.NL19SNA.00XX
EL-O-MATIC FD0100.NM00CWALTN-L19LNA.00XX
EL-O-MATIC FD0040.NM00CWALT.NL14SKA.00XX
EL-O-MATIC FD0600.NM00CWALL.YD27SNA.00XX
EL-O-MATIC FD0200.NM00CWALL.YD22SNA.00XX
EL-O-MATIC ACTUATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于EL-O-MATIC执行器FD0200.NM00CWALL.YD22SNA.00XX的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for EL-O-MATIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
EL-O-MATIC执行器F系列FD0200.NM00CWALL.YD22SNA.00XX技术参数及选型
