GO REGULATOR调节器SBPR系列技术参数
Technical Data | |
CONSTRUCTION | 316L stainless steel or brass (standard) |
ADJUSTABLE PRESSURE CONTROL RANGES | 1–30 psia (−27.7 in. H2O to 15.3 psig) |
OPERATING TEMPERATURE | −40° F to +300° F (−40° C to +148° C) |
CV COEFFICIENT | 0.2 |
INLET/OUTLET CONNECTIONS | ¼” FNPT |
GO REGULATOR调节器SBPR系列介绍
SBPR系列亚大气压背压调节器旨在提供精确的上游真空控制。例如，可将正压样品气体引入真空室。真空室下游连接SBPR和真空泵。真空室内的正压会逐渐升高，导致SBPR打开，使真空室恢复到所需的真空度。随后SBPR关闭，该过程重复进行。大直径隔膜配合真空辅助弹簧，可为用户提供最佳的亚大气压控制灵敏度。
The SBPR Series subatmospheric back pressure regulator is designed to provide precise upstream vacuum control.One example of this could be to introduce a sample gas at a positive pressure into a vacuum chamber. Downstream from this chamber would be the SBPR and a vacuum pump. The positive pressure will build up in the chamber causing the SBPR to open and allow the chamber to return to the vacuum desired. The SBPR will then close and the process will repeat. The large diameter diaphragm aided by a vacuum assist spring, provides the user with optimum sensitivity for subatmospheric pressure control.

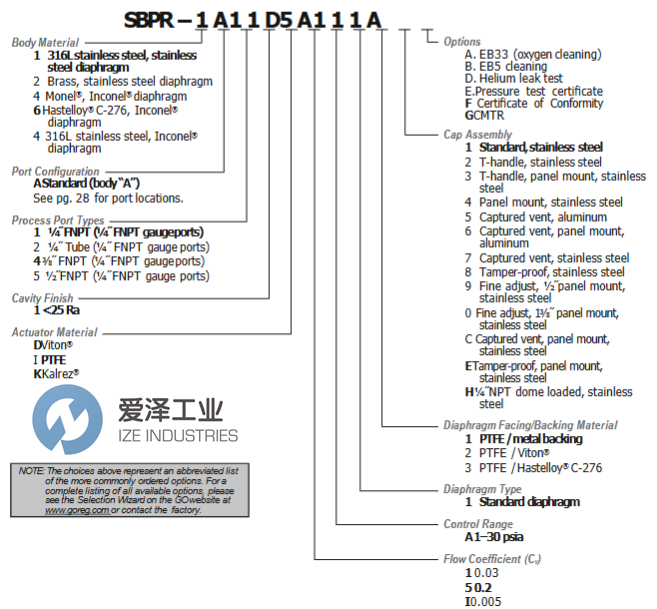

GO REGULATOR调节器SBPR系列选型
GO REGULATOR调节器SBPR系列其他常用型号：
GO REGULATOR SBPR-1B11IIA111E
GO REGULATOR SBPR-1A11I5A111
GO REGULATOR SBPR-1L11K5A111
GO REGULATOR SBPR-1A11K1A111
GO REGULATOR Back Pressure Regulators NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于GO REGULATOR调节器SBPR-1B11IIA111E的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for GO REGULATOR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
GO REGULATOR调节器SBPR系列SBPR-1B11IIA111E技术参数及介绍
