GO REGULATOR调节器PR1系列技术参数
Technical data | |
Construction | 316L stainless steel construction |
Outlet Pressure | 10, 25, 50, 100, 250, 500 and 750 psig |
Cv Flow Coefficients | 0.025 to 0.50. A Cv of 0.06 is standard. |
GO REGULATOR调节器PR1系列介绍
PR-1系列是一款用途广泛的减压阀，旨在满足仪器采样系统及其他应用（例如半导体加工气体）的多种需求。PR-1的诸多特性使其成为控制气体或液体低流量至中等流量压力的理想之选。不锈钢阀帽和调节螺钉可防止大气腐蚀并保持外观。优于25 Ra的增强型内表面光洁度以及电抛光处理，使清洁更加便捷，并可能减少流体中的颗粒污染。
三种不同的阀座材料、三种可选的孔径尺寸以及采用INCONEL®隔膜的7个压力控制范围，为用户提供了广泛的压力控制能力，入口压力可达6000 psig，标准工作温度可达500°F (260°C)。
The PR-1 Series is a versatile pressure reducing regulator designed to fulfill a wide range of needs in instrumentation sample systems and other applications such as semiconductor processing gases. Many features of the PR-1 make it ideal for a wide range of applications controlling pressures at low to moderate flows in gas or liquid service.Stainless steel caps and adjusting screws prevent atmospheric corrosion and maintain appearance.Enhanced internal body surface finish of better than 25 Ra plus electropolishing allows easier cleaning and potentially less particle contamination in the flow stream.
Three different seat materials, three alternate orifice sizes and 7 pressure control ranges with INCONEL® diaphragms offer the user a wide spectrum of capabilities for pressure control with inlet pressures up to 6000 psig and standard operating temperatures up to 500° F(260° C).

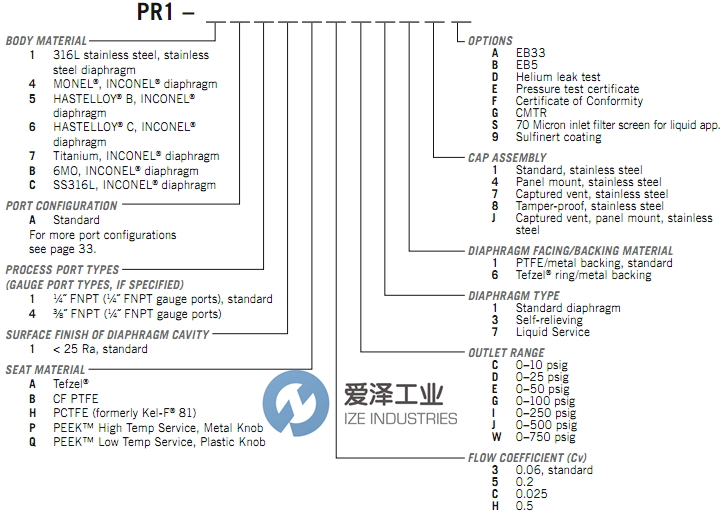

GO REGULATOR调节器PR1系列选型
GO REGULATOR调节器PR1系列其他常用型号：
GO REGULATOR PR1-1B11A3C111E
GO REGULATOR PR1-1B11A3G111E
GO REGULATOR PR1-1B11A3E111
GO REGULATOR PR1-1B11A3D111
GO REGULATOR PR1-1F11Q3D111
GO REGULATOR PR1-1F11A3E111
GO REGULATOR PR1-1B11A3E114
GO REGULATOR PR1-1F11A5C111
GO REGULATOR PR1-1B11B3G111
GO REGULATOR PR1-1B11Q3E111
GO REGULATOR PR1-1F11Q5J111
GO REGULATOR Pressure Reducing Regulator NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于GO REGULATOR调节器PR1-1B11A3C111E的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for GO REGULATOR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
GO REGULATOR调节器PR1系列PR1-1B11A3C111E技术参数及介绍
