REXROTH OIL CONTROL阀VEDT-08A-A-16-NC系列技术参数
General | |
Weight kg (lbs) | 0.22 (0.48) |
Installation orientation | Optional |
Ambient temperature range °C (°F) | -30 to 60 (-22 to 140) |
Hydraulic | |
Max. operating pressure bar (psi) | 250 (3600) |
Max. flow l/min.(gpm) | 25 (7) |
Max. internal leakage drops/min. | 20 |
Fluid temperature range °C (°F) | -20 to 80 (-4 to 176) |
Response time ms. | 40-60 at nominal flow (oil at 46 cSt) |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque Nm (ft-lbs) | 34-41 (25-30) |
Recommended degree of fluid contamination | Nominal value max. 10µm(NAS 8) |
Cavity | CA-08A-2N see RE 18325-70 |
Lines bodies and standard assemblies | Please refer to section“Hydaulic integrated circuit” or consult factory |
Seal kit code | RG08A2010530100 |
Seal kit coil code | RG16A1PMVQ0010 |
Electrical | |
Type of voltage | DC voltage |
Coil type | S7 |
Power consumption W | 30 |
Nominal voltage coil 30W | -10% +10% |

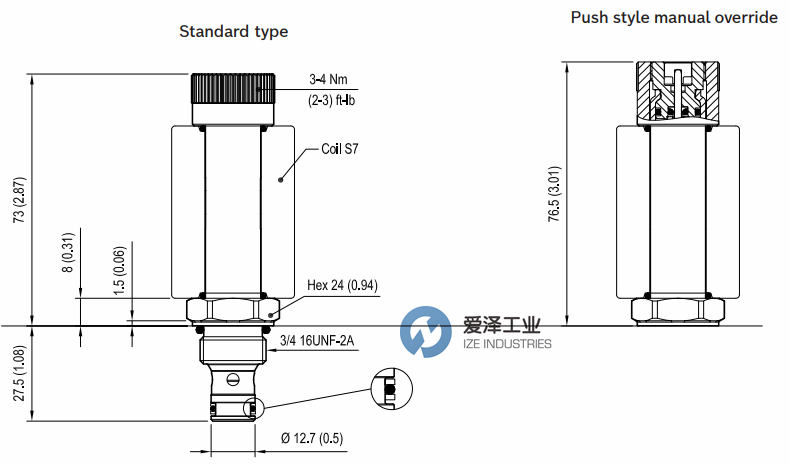

REXROTH OIL CONTROL阀VEDT-08A-A-16-NC系列技术尺寸

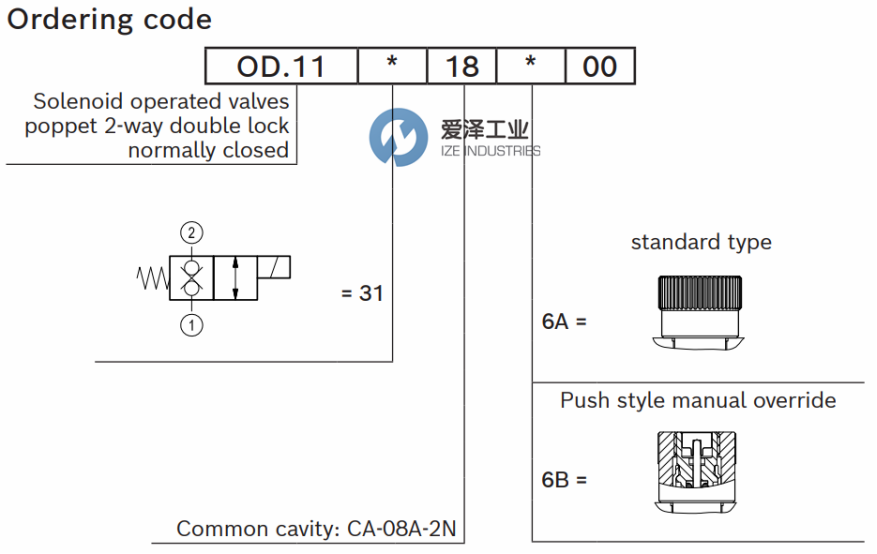

REXROTH OIL CONTROL阀VEDT-08A-A-16-NC系列选型
REXROTH OIL CONTROL阀VEDT-08A-A-16-NC系列其他常用型号：
REXROTH OIL CONTROL OD1131186A0000 R934003624
REXROTH OIL CONTROL OD1131186B0000 R934003625
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
有关REXROTH OIL CONTROL阀OD1131186B0000 R934003625更详细的信息或者购买意大利REXROTH OIL CONTROL相关产品，请致电爱泽工业。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: www.ize-industries.com.
REXROTH OIL CONTROL阀OD1131186B0000 R934003625技术参数
