REXROTH阀VBSN-08AA系列技术参数
Technical data | |
Max. operating pressure | 350 bar (5000 psi) |
Max. flow | 30 l/min (8 gpm) |
Max. internal leakage | 15 drops/min. |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 34 - 41 Nm (25 - 30 ft-lbs) |
Weight | 0.18 kg (0.4 lbs) |
MTTFD | 150 years |
Cavity | CA-08A-3C |
Adjustment | according to ISO 4413 with sealed adjustment screw to prevent oil leakage during adjustment |
Salt spray test | 500h according to DIN EN ISO 9227:2017-07 |
Seal kit | Code: RG08A9010520100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm²/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) /ISO 4406 19/17/14 |
Installation position | No restrictions |

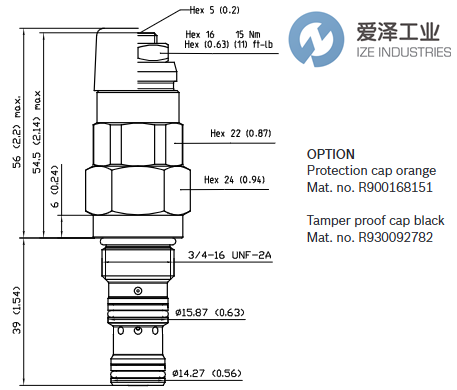

REXROTH阀VBSN-08AA系列规格尺寸

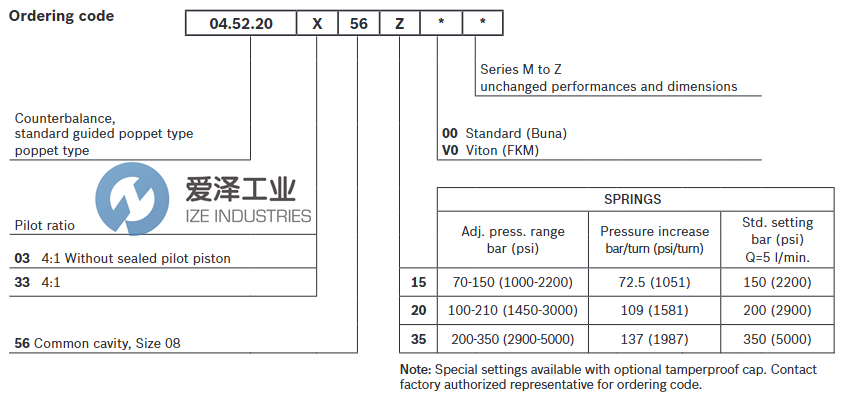

REXROTH阀VBSN-08AA系列选型
REXROTH阀VBSN-08AA系列其他常用型号：
REXROTH 04522003563500M R930081224
REXROTH 04522033563500M R930081365
REXROTH 04522003561500M R930081219
REXROTH 04522003562000M R930081221
REXROTH 04522033562000M R930081227
REXROTH valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH阀04522003563500M R930081224的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
REXROTH阀VBSN-08AA系列04522003563500M R930081224技术参数及选型
