REXROTH阀VS-30规格描述
Technical data | |
Max. operating pressure port 1 (P) | 350 bar (5000 psi) |
Max. pressure admitted port 2 (T) | 140 bar (2000 psi) |
Max. flow | 30 l/min (8 gpm) |
Max. internal leakage1) | 15 drops/min. |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 45 - 50 Nm (33 - 37 ft-lbs) |
Weight2) | 0.17 kg (0.38 lbs) |
Special cavity | 008 (see data sheet 18325-75) |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory |
Seal kit3) | Code: RG0008010000100 |
Fluids | Mineral-based or synthetics with lubricating properties |
Recommended degree of fluid contamination | Nominal value max. 10µm (NAS 8) / ISO 4406 19/17/14 |
Installation position | No restrictions |
Other Technical Data | See data sheet 18350-50 |

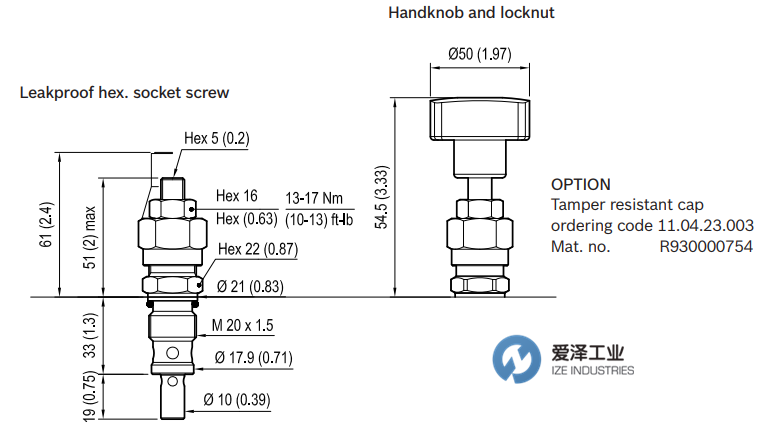

REXROTH阀VS-30系列外观尺寸图

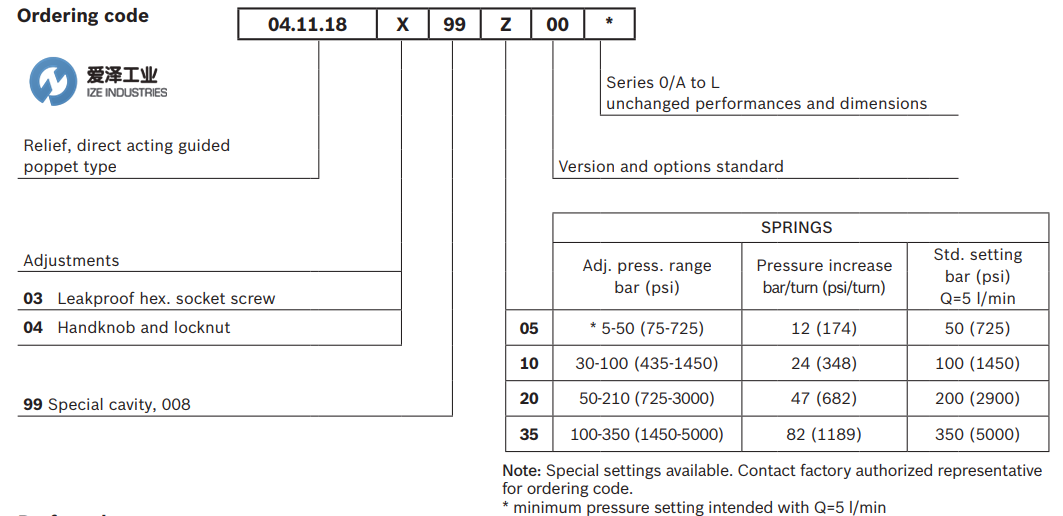

REXROTH阀VS-30系列选型
REXROTH阀VS-30系列其他常用型号：
REXROTH 041118049905000 R930000148
REXROTH 041118049910000 R930000149
REXROTH 041118049920000 R901127942
REXROTH 041118049935000 R930000151
REXROTH 041118039905000 R901113613
REXROTH 041118039910000 R901113614
REXROTH 041118039920000 R901226876
REXROTH 041118039935000 R901113617
REXROTH valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH阀041118039910000 R901113614的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
REXROTH阀041118039910000 R901113614技术参数及选型
