REXROTH阀VSBN-10A系列技术参数
Technical data | |
Max. operating pressure port 1 (P) | 350 bar (5000 psi) |
Max. pressure admitted port 2 (T) | 350 bar (5000 psi) |
Max. flow | 50 l/min (13 gpm) |
Max. internal leakage1) | 15 drops/min. |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 41 - 47 Nm (30 - 35 ft-lbs) |
Weight | 0.2 kg (0.44 lbs) |
Cavity | CA-10A-2N (see data sheet 18325-70) |
Seal kit | Code: RG10A2010530100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10µm (NAS 8) / ISO 4406 20/18/15 |
Installation position | No restrictions |

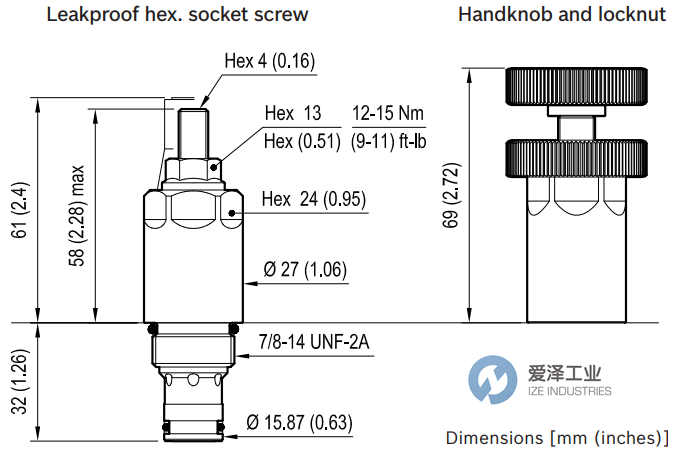

REXROTH阀VSBN-10A系列技术尺寸

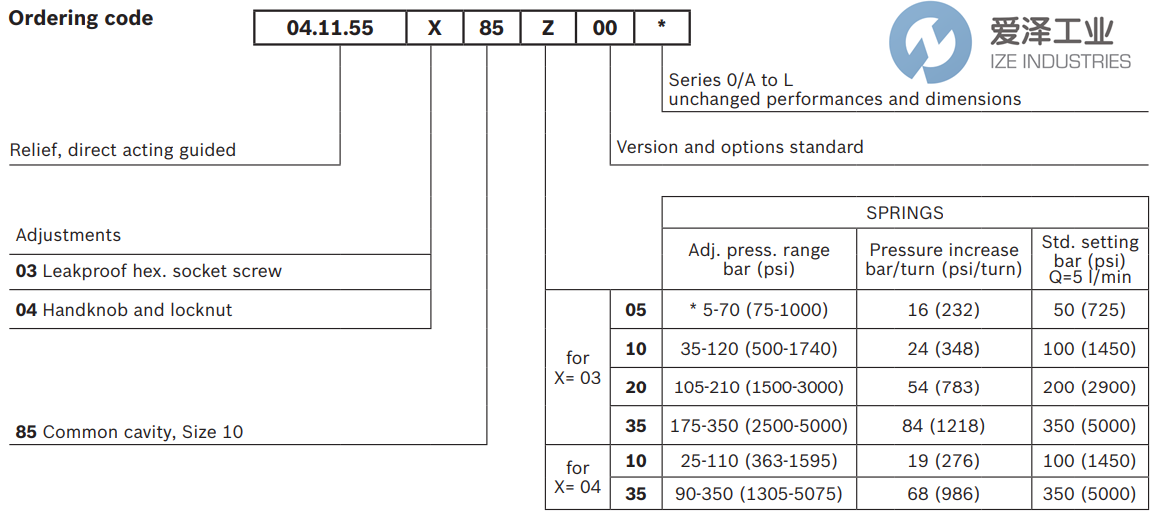

REXROTH阀VSBN-10A系列选型
REXROTH阀VSBN-10A系列其他常用型号：
REXROTH 041155038520000 R901113610
REXROTH 041155038505000 R901191831
REXROTH 041155038510000 R901113609
REXROTH 041155038535000 R901115702
REXROTH 041155048510000 R930058261
REXROTH 041155048535000 R930058262
REXROTH VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH阀041155038505000 R901191831的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH阀041155038505000 R901191831技术参数及选型
