REXROTH阀L511… (LC1-DZ)系列技术参数
Technical Data | |
General | |
Valve element with 2 solenoids kg [lbs] | 1.82 [4.0] |
Valve element with 1 solenoid kg [lbs] | 1.33 [2.9] |
Valve element with 2 solenoids, with lever type emergency kg [lbs] | 2.1 [4.6] |
Valve element with 1 solenoid, with lever type emergency kg [lbs] | 1.6 [3.5] |
Ambient Temperature °C [°F] | –20....+50 [-4....+122] (NBR seals) |
Hydraulic | |
Maximum pressure at P, A and B ports bar [psi] | 310 [4500] |
Maximum pressure at T bar [psi] | 250 [3625] |
Max pressure, with lever type emergency at T bar [psi] | 200 [2900] |
Maximum inlet flow l/min [gpm] | 50 [13.2] |
Fluid Temperature °C [°F] | –20....+80 [-68....+176] (NBR seals) |
Permissible degree of fluid contamination | ISO 4572: βx≥75 X=12...15 |
Viscosity range mm2/s | 5....420 |
Electrical | |
Voltage type | DC (AC only with RAC connection) |
Voltage tolerance (nominal voltage) % | -10 .... +10 |
Duty | Continuous, with ambient temperature ≤ 50°C [122°F] |
Coil wire temperature not to be exceeded °C [°F] | 150 [302] |
Insulation class | H |
Compliance with | Low Voltage Directive LVD 73/23/EC (2006/95/EC), 2004/108/EC |
Coil weight with connection EN 175301-803 kg [lbs] | 0.335 [0.74] |
REXROTH阀L511… (LC1-DZ)系列介绍
- 带有电磁操作方向阀芯的阀元件。
- 由带有可拆卸线圈的电磁阀操作的控制阀芯。
- 在断电状态下，控制阀芯通过复位弹簧保持在中心位置。
- 用于直流线圈的湿针管，带有用于机械超越的推杆； 表面镀镍。
- 线圈可绕管子旋转360°； 它们可以通过带有整流器 (RAC) 的特殊连接器由交流电流供电。
- 手动超控（按钮式或螺旋式）可供选择。
- Valve elements with solenoid operated directional spool.
- Control spools operated by solenoids with removable coils.
- In the de-energized condition, the control spool is held in the central position by return springs.
- Wet pin tubes for DC coils, with push rod for mechanical override; nickel plated surface.
- Coils can be rotated 360° around the tube; they can be energized by AC current through special connectors with rectifier (RAC).
- Manual override (push-button or screw type) available as option.

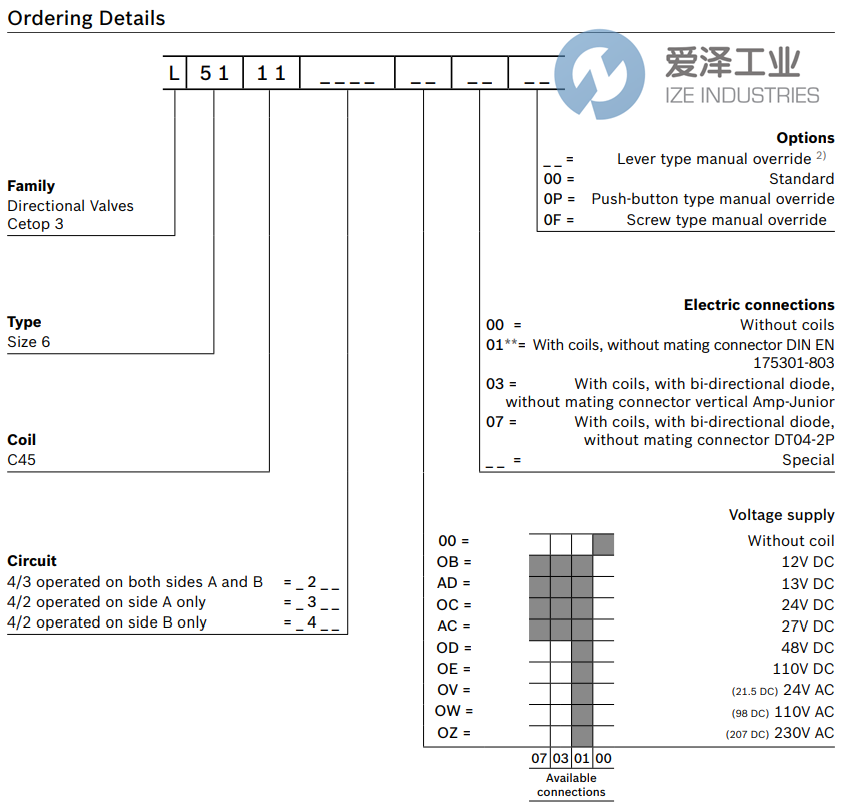

REXROTH阀L511… (LC1-DZ)系列选型
REXROTH阀L511… (LC1-DZ)系列其他常用型号：
REXROTH L5111E201OC0100 R933003797
REXROTH L5111B201OC0100 R933003799
REXROTH L5111B201000000 R933004328
REXROTH L5111E301OC0100 R933004432
REXROTH L5111C201OC0100 R933004369
REXROTH L5111C201000000 R933004364
REXROTH L5111Y301OC0100 R933003798
REXROTH L5111M501OC0100 R933004492
REXROTH L5111A201000000 R933004289
REXROTH VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH阀L5111A201000000 R933004289的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702 or browse our website: www.ize-industries.com.
REXROTH阀L5111A201000000 R933004289技术参数及选型
