REXROTH阀VEI-16-021-NA系列技术参数
Technical data | |
General | |
Weight | 0.35 kg (0.77 lbs) |
Installation orientation | Unrestricted |
Ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 5 - 150 l/min (1 - 40 gpm) |
Fatigue cycle life | 1 million cycles at 350 bar |
Max. internal leakage: | 20 drops/min. for X= 02,06 |
Switching time | Closing ≤ 100 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 130 - 150 Nm (96 - 111 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 µm(NAS 8) ISO 4406 19/17/14 |
MTTFd | 150 years see RE 18350-51 |
Special cavity | 021-E see 18325-75 |
Seal kit for X=02,06 | code RG21E201052010 |
Seal kit for X=04,32 | code RG21E201053010 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=B | code RG03Z0010000100 |
Seal kit coil and protective cap only for Y=C | code RG04Z0010000100 |

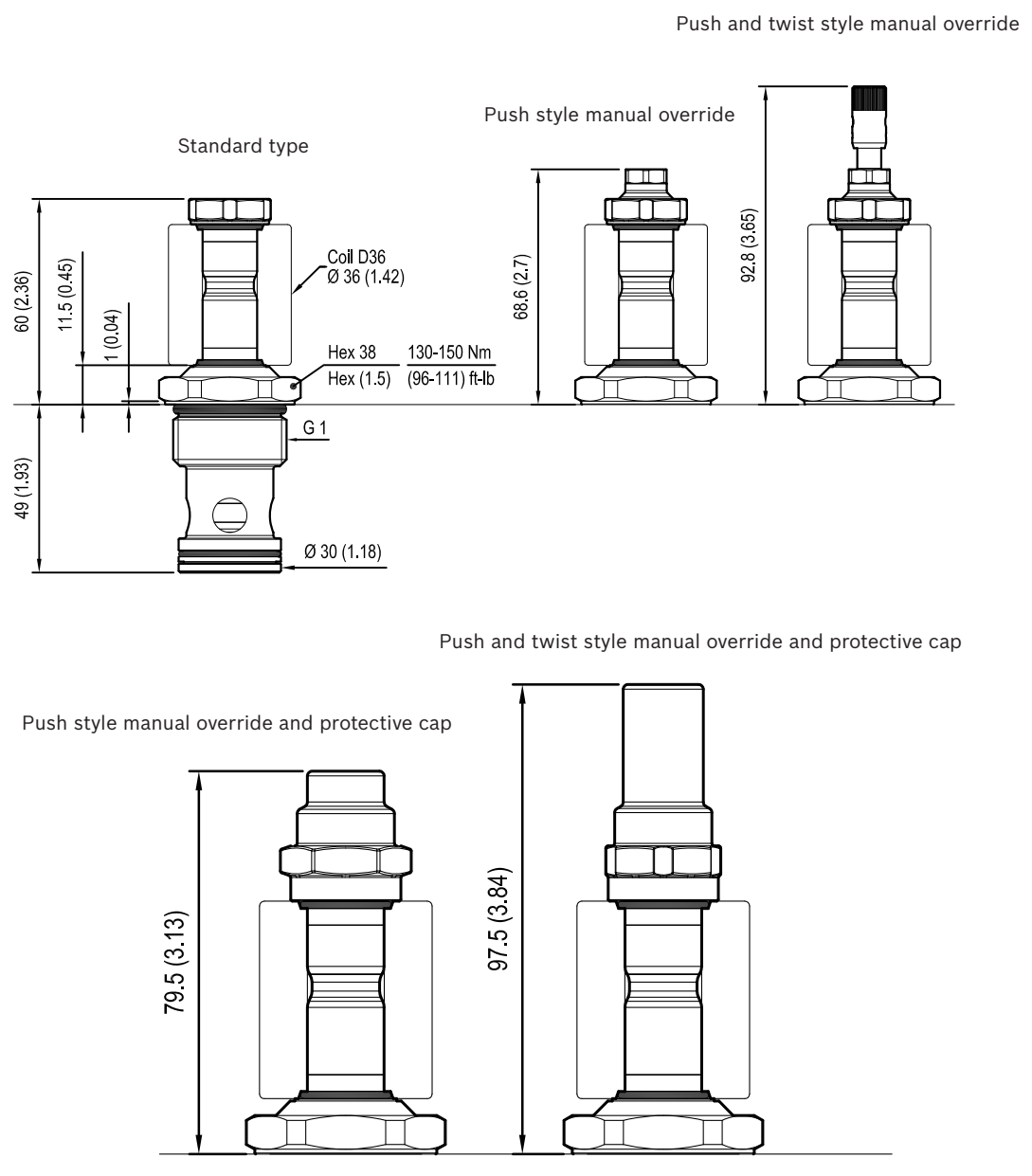

REXROTH阀VEI-16-021-NA系列技术尺寸

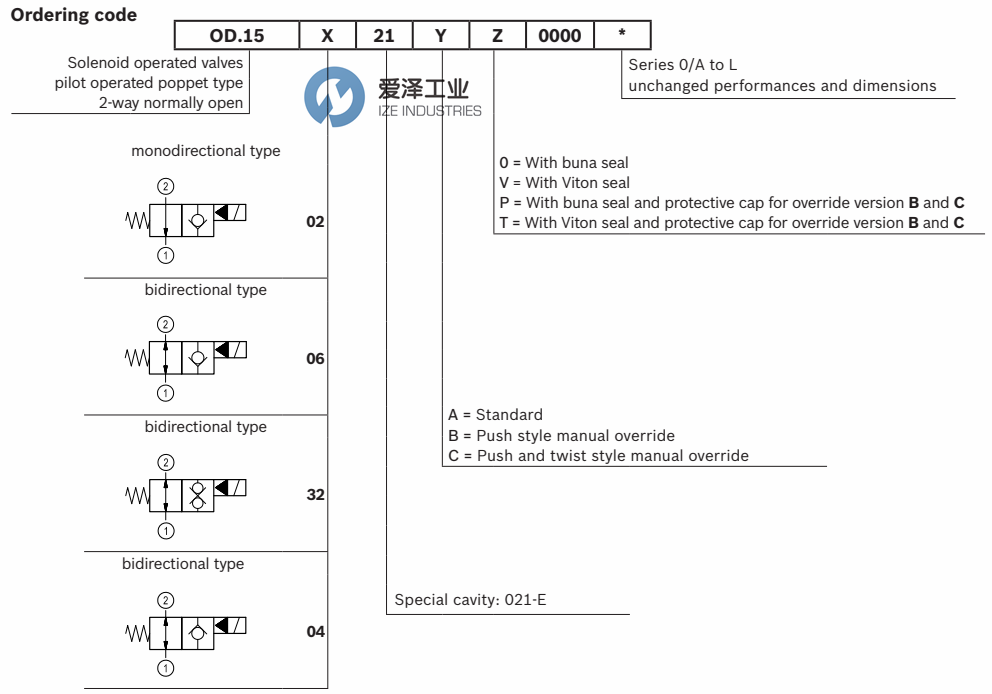

REXROTH阀VEI-16-021-NA系列选型
REXROTH阀VEI-16-021-NA系列其他常用型号：
REXROTH OD150221A000000 R930063874
REXROTH OD150221C000000 R930068773
REXROTH OD150621A000000 R930066964
REXROTH OD150621C000000 R930066969
REXROTH OD153221A000000 R930067155
REXROTH OD153221C000000 R930069397
REXROTH OD153221CP00000 R930068527
REXROTH OD150621B000000 R930068776
REXROTH OD150421A000000 R930066970
REXROTH OD150421C000000 R930069396
