REXROTH阀VS-30-CC系列技术参数
Technical data | |
Max. operating pressure | 350 bar (5000 psi) |
Max. flow | 30 l/min (8 gpm) |
Max. internal leakage1) | 15 drops/min. |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 46 - 51 Nm (34 - 38 ft-lbs) |
Weight | 0.17 kg (0.38 lbs) |
Special cavity | 8 |
Seal kit2) | Code: RG0008010520100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10µm (NAS 8) / ISO 4406 20/18/15 |
Installation position | No restrictions |
1) At 80% of pressure setting | |
2) Only external seals for 10 valves |

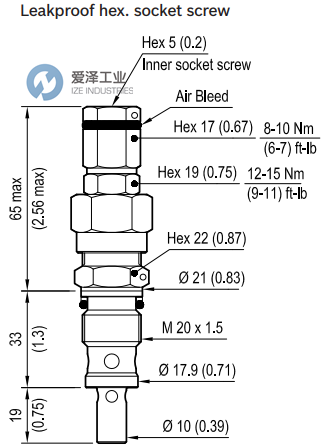

REXROTH阀VS-30-CC系列技术尺寸

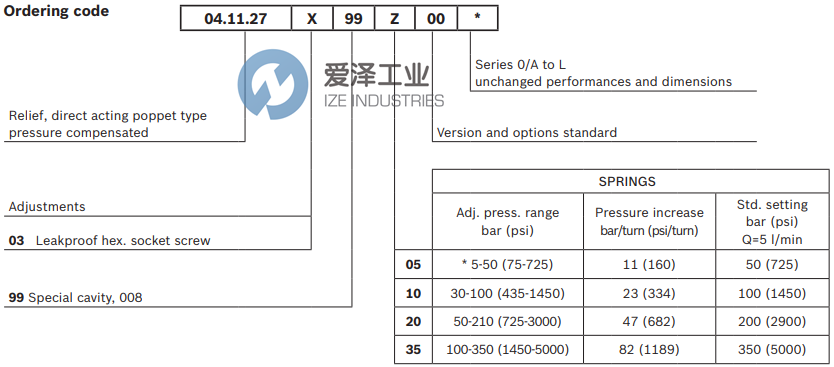

REXROTH阀VS-30-CC系列选型
REXROTH阀VS-30-CC系列其他常用型号:
REXROTH 04112703990500D R930006231
REXROTH 04112703991000D R930006233
REXROTH 04112703992000D R930006234
REXROTH 04112703993500D R930006239
