REXROTH阀VEI-16-08A-VU-VS-ST-06系列技术参数
Technical data | |
General | |
Installation orientation | Unrestricted |
Ambient temperature range | —30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 0.5 - 40 l/min (0.1 - 11 gpm) |
Max. internal leakage | 5 drops/min. |
Switching time | Opening ≤ 50 ms |
Fluid temperature range | —20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 39 - 51 Nm (29 - 38 ft-lbs) |
Recommended degree of fluid contaminatio | Nominal value max. 10 µm(NAS 8) ISO 4406 19/17/14 |
MTTFd | 150 years (see 18350-51) |
Cavity | CA-08A-2N (see 18325-70) |
Other technical data | See data sheet 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Supply voltage | See data sheet 18325-90 |
Voltage tolerance against ambient temperature | See characteristic curve |
Power consumption | 20 W |
Type of protection | See data sheet 18325-90 |
Note: Coils must be ordered separately |

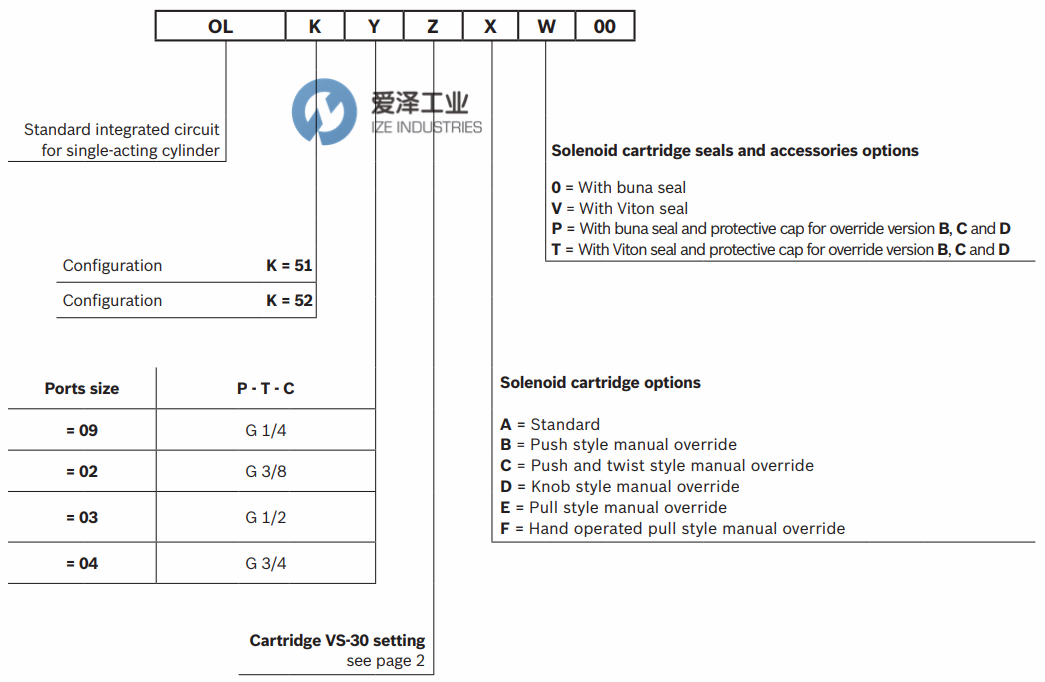

REXROTH阀VEI-16-08A-VU-VS-ST-06系列选型
REXROTH阀VEI-16-08A-VU-VS-ST-06系列其他常用型号:
REXROTH OL510904A000000 R930065948
REXROTH OL510907A000000 R930065940
REXROTH OL510910A000000 R930065941
REXROTH OL510204A000000 R930065924
REXROTH OL510207A000000 R930064247
REXROTH OL510210A000000 R930065937
REXROTH OL510304A000000 R930065949
REXROTH OL510307A000000 R930064256
REXROTH OL510310A000000 R930065929
REXROTH OL520207A000000 R930066293
REXROTH OL520307A000000 R930066336
REXROTH OL510207D000000 R930065950
REXROTH OL510310D000000 R930065939
REXROTH valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH阀OL510307A000000 R930064256的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
REXROTH阀OL510307A000000 R930064256技术参数及选型
