REXROTH阀VEI-16-08A-NC系列技术参数
Technical data | |
General | |
Weight | 0.15 kg (0.33 lbs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90°C (-22 to 194°F) for W=0000 |
Salt spray test to DIN EN ISO 9227:2017-07 | 500h |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 0.5 - 40 l/min. (0.1 - 11 gpm) for W=0000 |
Fatigue cycle life | 2 million cycles at 350 bar |
Max. internal leakage: | 5 drops/min. for X= 01,05,07 |
Switching time for W=0000 | Opening ≤ 50 ms |
Switching time for W=000T | Opening ≤ 50 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque | 35 - 43 Nm (26 - 32 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 µm (NAS 8) ISO 4406 19/17/14 |
Seal kit for X=01,05,07 | code RG08A2010520100 |
Seal kit for X=31,03,09 | code RG08A2010530100 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=D | code RG03Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Power consumption | 20 W |

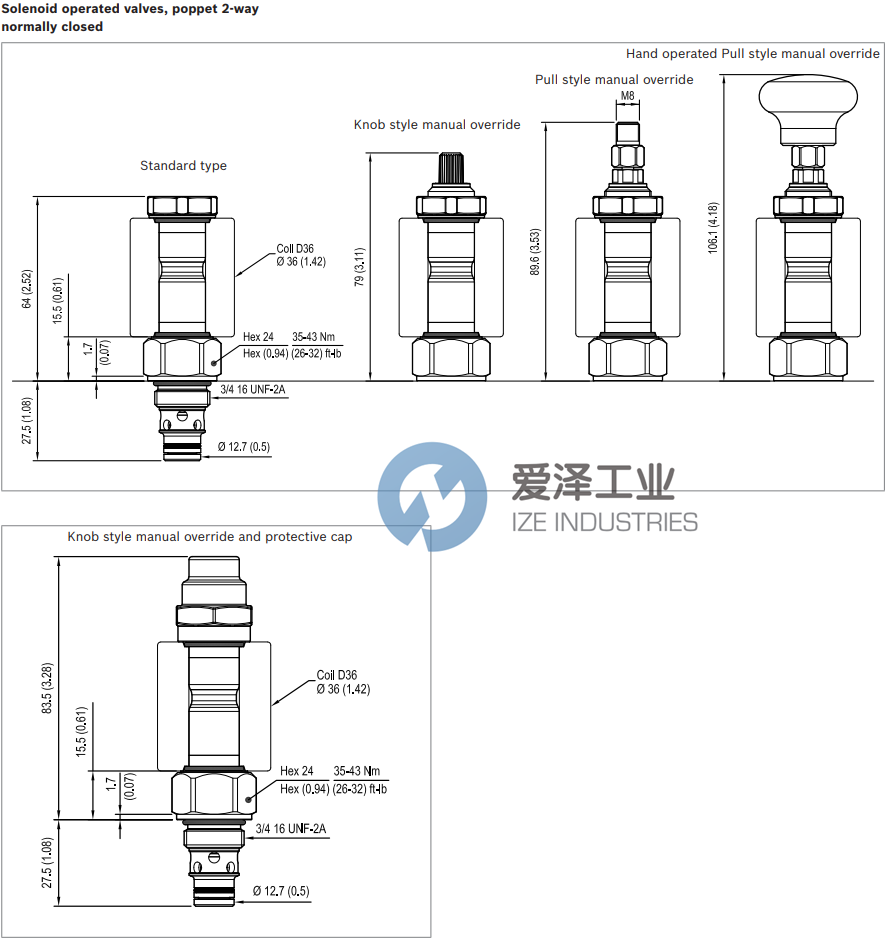

REXROTH阀VEI-16-08A-NC系列技术尺寸

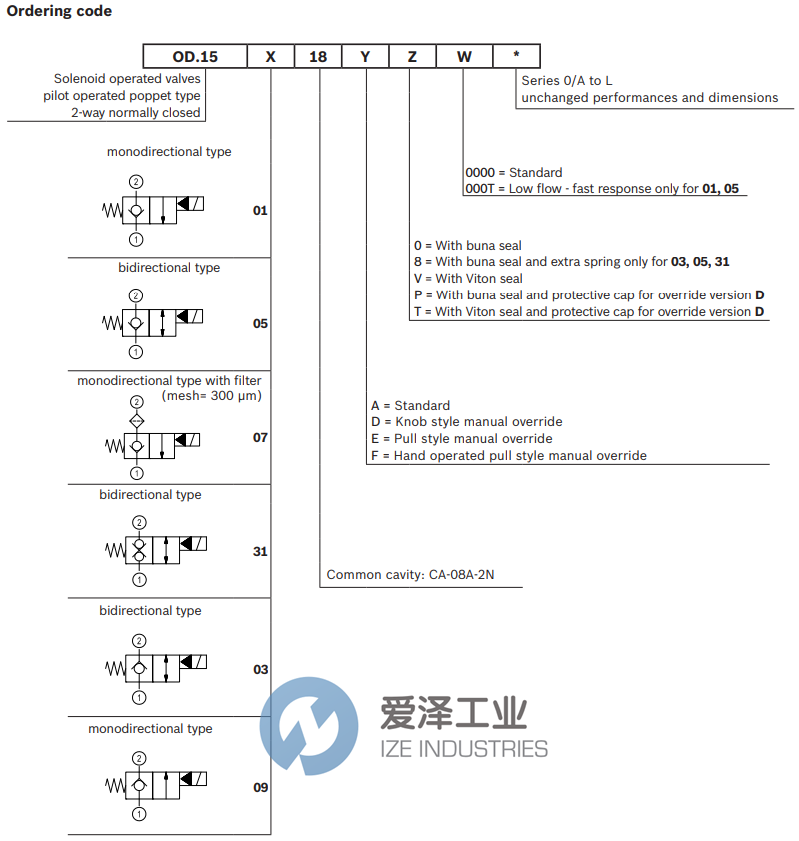

REXROTH阀VEI-16-08A-NC系列选型
REXROTH阀VEI-16-08A-NC系列其他常用型号：
REXROTH OD150118A000000 R930058697
REXROTH OD150118D000000 R930059941
REXROTH OD150518A000000 R930058427
REXROTH OD150518D000000 R930058344
REXROTH OD150518DP00000 R930059757
REXROTH OD150718A000000 R930058338
REXROTH OD150718D000000 R930058336
REXROTH OD150718DP00000 R930058529
REXROTH OD150118E000000 R930060958
REXROTH OD150518E000000 R930060966
REXROTH OD150718E000000 R930060973
REXROTH OD153118A000000 R930058334
REXROTH OD153118D000000 R930058898
REXROTH OD153118E000000 R930065030
REXROTH OD150518A800000 R930063229
REXROTH OD150318A000000 R930062828
REXROTH OD150918A000000 R930064361
REXROTH OD153118DP00000 R930066685
REXROTH OD150518D800000 R930063959
REXROTH OD150318D000000 R930065238
REXROTH OD150918D000000 R930066189
REXROTH OD150318A800000 R930065856
REXROTH OD150518A800000 R930063229
REXROTH OD153118A800000 R930066547
