REXROTH阀VED-16-08A-NC系列技术参数
Technical data | |
General | |
Weight | 0.20 kg (0.44 lbs) |
Installation orientation Unrestricted | |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Salt spray test to DIN EN ISO 9227:2017-07 | 500h |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Rated flow | 1.5 l/min (0.4 gpm) |
Max. internal leakage: | 20 drops/min. |
Switching time | Closing ≤ 100 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque | 39 - 51 Nm (29 - 38 ft-lbs) |
Recommended degree of fl uid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
Seal kit for X=01,03 | code RG08A2010520100 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=D | code RG03Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Power consumption | 20 W |
REXROTH阀VED-16-08A-NC系列技术尺寸

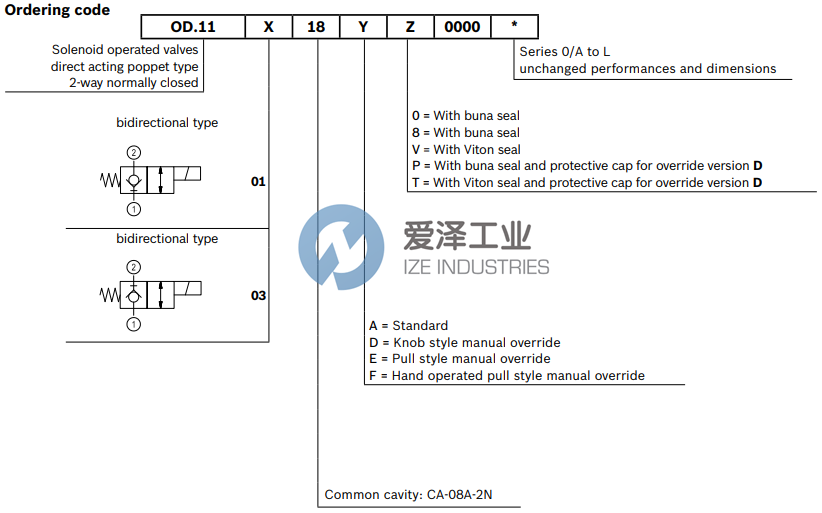

REXROTH阀VED-16-08A-NC系列选型
REXROTH阀VED-16-08A-NC系列其他常用型号：
REXROTH OD110118A000000 R930066944
REXROTH OD110118D000000 R930066949
REXROTH OD110318A000000 R930066942
REXROTH OD110318D000000 R930069504
REXROTH Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH阀OD110318A000000 R930066942的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH阀OD110318A000000 R930066942技术参数及选型
