REXROTH阀VBSO-DE-NN-FC2系列技术参数
Technical data | |
Hydraulic | |
Operating pressure bar (psi) | up to 210 (3000) |
Max. flow l/min (gpm) | 40 (11) |
Relief setting: at least 1.3 times the highest expected load. | |
General | |
Manifold material | Aluminium |
Note: aluminium bodies are often strong enough for operating pressures exceeding 210 bar (3000 psi), depending from the fatigue life expected in the specific application. If in doubt, consult our Service Network. | |
Weight kg (lbs) | 0.75 (1.65) |
Fluid temperature range °C (°F) | between -30 (-22) and +100 (212) |

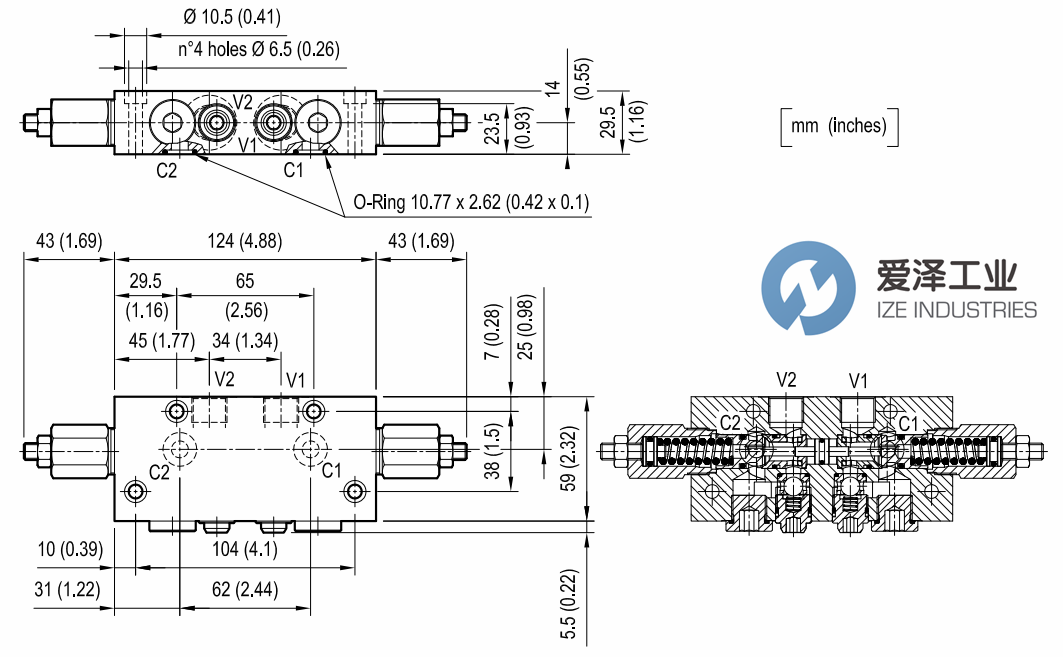

REXROTH阀VBSO-DE-NN-FC2系列技术尺寸

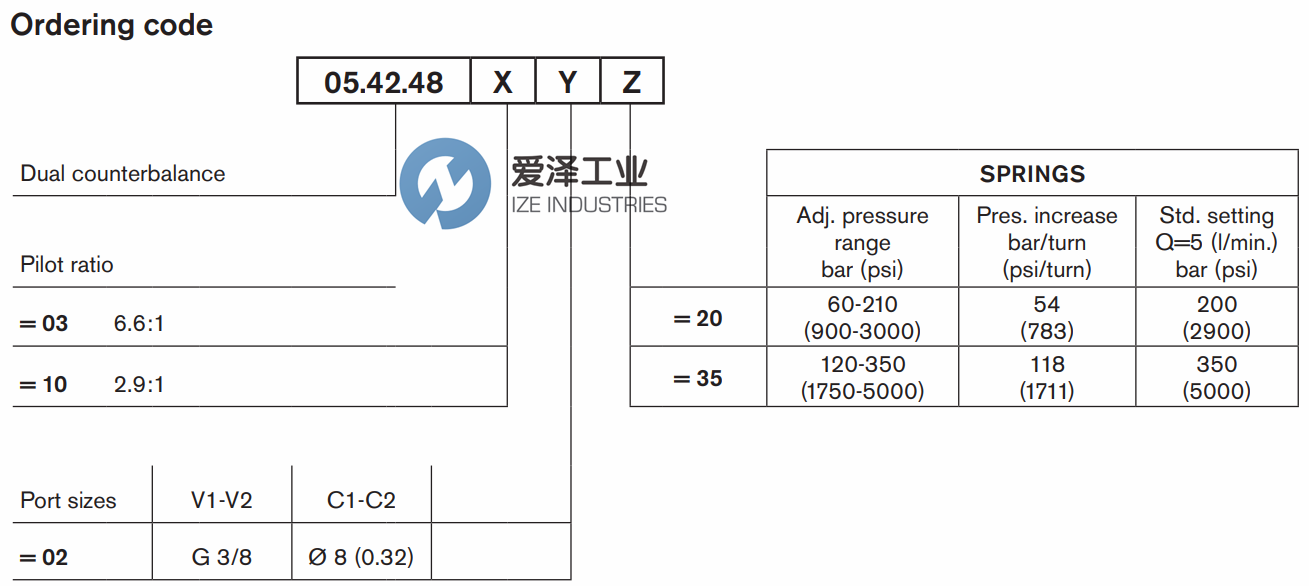

REXROTH阀VBSO-DE-NN-FC2系列选型介绍
REXROTH阀VBSO-DE-NN-FC2系列其他常用型号：
REXROTH 054248030220000 R930001879
REXROTH 054248030235000 R930001880
REXROTH 054248100220000 R930001882
REXROTH 054248100235000 R930001883
REXROTH valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH阀054248100220000 R930001882的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
REXROTH阀054248100220000 R930001882技术参数及选型
