REXROTH OIL CONTROL阀VEI-16-NC系列技术参数
Technical data | |
General | |
Weight | 0.25 kg (0.55 Ibs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Salt spray test to DIN EN ISO 9227:2017-07 | 500h |
Hydraulic | 350 bar (5000 psi) |
Max. operating pressure | 2 - 70 /min (0.53- 18 gpm) |
Flow range | 2 million cycles at 350 bar |
Fatigue cycle life | 5 drops/min. for X=01 ,05,11 |
Max. internal leakage | 54-66Nm(40-49ft-lbs) |
Installation torque | Opening≤50 ms |
Switching time | Closing≤100 ms |
Fluid temperature range | -20to80°C(-4to176°F) |
Recommended degree of fluid contamination | Nominal value max. 10 µm (NAS 8) ISO 4406 19/17/14 |
Seal kit for X=01,05,11 | code RG17E201052010 |
Seal kit for X=03,31 | code RG17E201053010 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=D | code RG03Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Power consumption | 20 W |

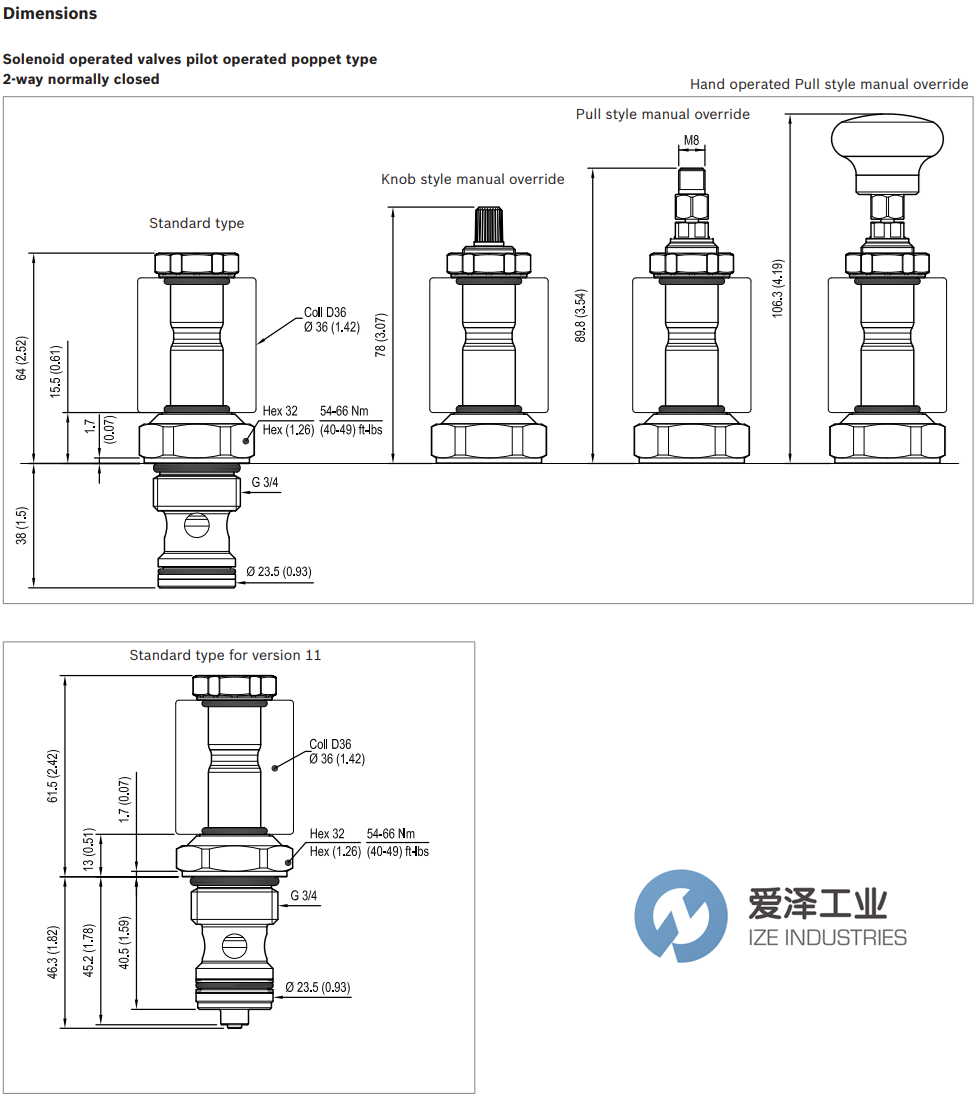

REXROTH OIL CONTROL阀VEI-16-NC系列技术尺寸

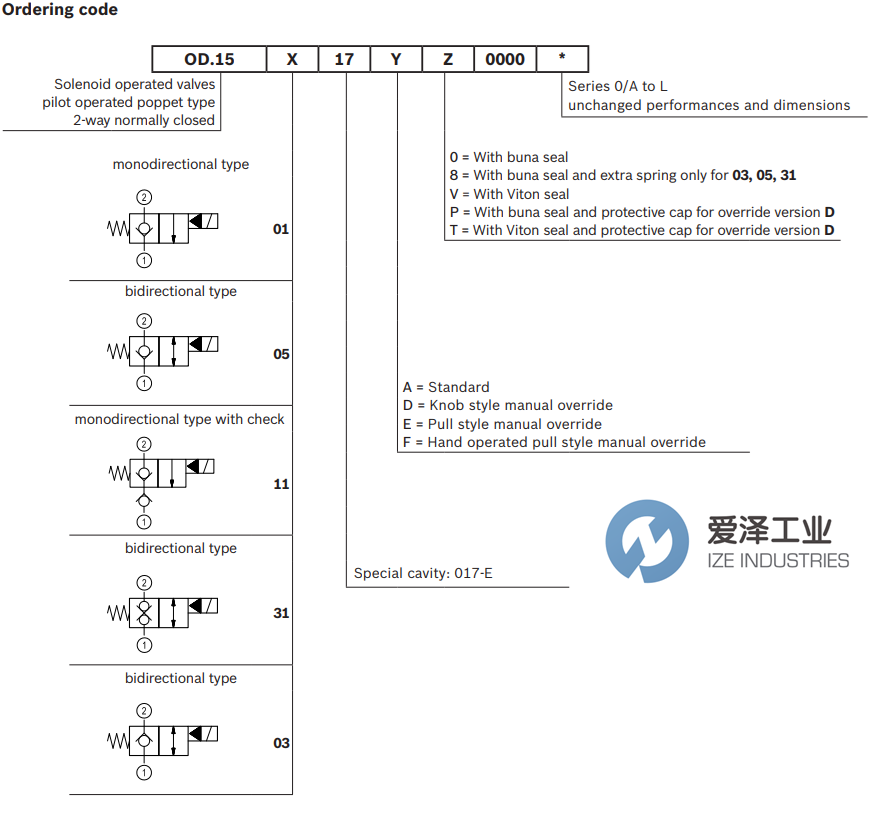

REXROTH OIL CONTROL阀VEI-16-NC系列选型
REXROTH OIL CONTROL阀VEI-16-NC系列其他常用型号：
REXROTH OIL CONTROL OD150117A000000 R930062337
REXROTH OIL CONTROL OD150117D000000 R930065472
REXROTH OIL CONTROL OD150517A000000 R930062338
REXROTH OIL CONTROL OD150517D000000 R930064099
REXROTH OIL CONTROL OD151117A000000 R930064362
REXROTH OIL CONTROL OD150517DP00000 R930066439
REXROTH OIL CONTROL OD153117A000000 R930065028
REXROTH OIL CONTROL OD153117D000000 R930067162
REXROTH OIL CONTROL OD150317A000000 R930066965
REXROTH OIL CONTROL OD150317D000000 R930066967
REXROTH OIL CONTROL OD150517A800000 R930065551
REXROTH OIL CONTROL OD150317A800000 R930065610
REXROTH OIL CONTROL OD150517E000000 R930070202
REXROTH OIL CONTROL OD153117A800000 R930066700
REXROTH OIL CONTROL OD153117D800000 R930067588
REXROTH OIL CONTROL Valves NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH OIL CONTROL阀OD151117A000000 R930064362的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH OIL CONTROL阀OD151117A000000 R930064362技术参数及选型
