REXROTH阀VBB2-22系列技术参数
Technical data | |
Max. operating pressure port 1 (P) | 420 bar (6000 psi) |
Max. pressure admitted port 2 (T) | 50 bar (725 psi) |
Max pilot pressure port 3 Pst | 30 bar (435 psi) |
Arithmetic gera ratio | 21:1 |
Max. flow | 240 l/min (63,40 gpm) |
Max. internal leakage1) | 45 drops/min. |
Fluid temperature range | -20 to 120 °C (-4 to 248 °F) (Viton) |
Installation torque | 100 Nm (73,76 ft-lbs) for FC |
Weight | 0.40 kg (0.88 lbs) for FC |
Special cavity | FC - LG |
Seal kit (Viton) | Code: RG22R2040520100 |
Code: RGLGR2040520100 | |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 380 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10µm (NAS 9) / ISO 4406 20/18/15 |
Installation position | No restrictions |
Without surface protection | In case of need of surface protection, please consult factory. |
REXROTH阀VBB2-22系列技术尺寸

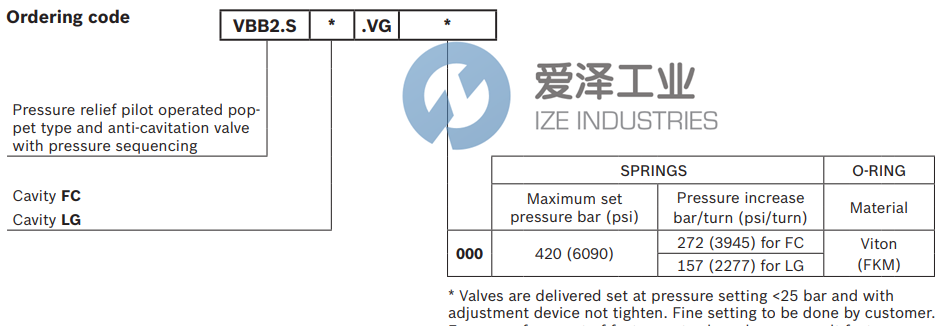

REXROTH阀VBB2-22系列选型
REXROTH阀VBB2-22系列其他常用型号：
REXROTH VBB2.SFC.VG.000 R930076089
REXROTH VBB2.SLG.VG.000 R930076167
REXROTH VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTHF阀VBB2.SLG.VG.000 R930076167的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
REXROTHF阀VBB2.SLG.VG.000 R930076167技术参数及选型
