REXROTH阀VED-CS-16-08A-32系列技术参数
Technical data | |
Max. fl ow | 20 l/min (5 gpm) |
Max. operating pressure for steel body | 280 bar (4060 psi) |
Max operating pressure for aluminium body | 210 bar (3000 psi) |
Ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |

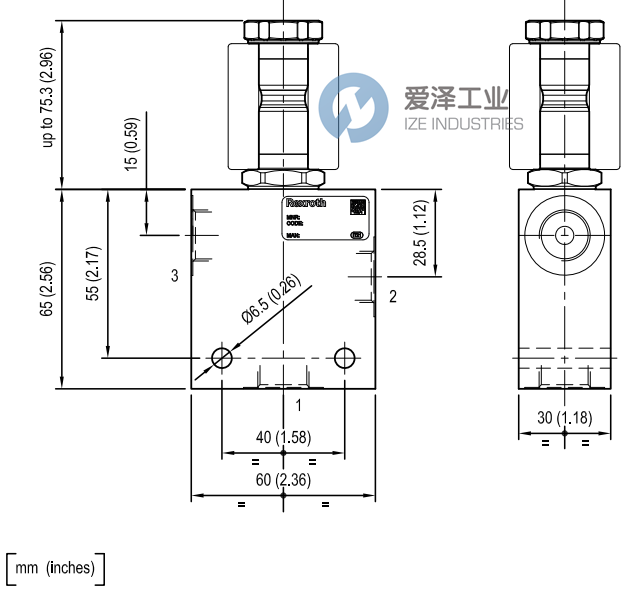

REXROTH阀VED-CS-16-08A-32系列技术尺寸

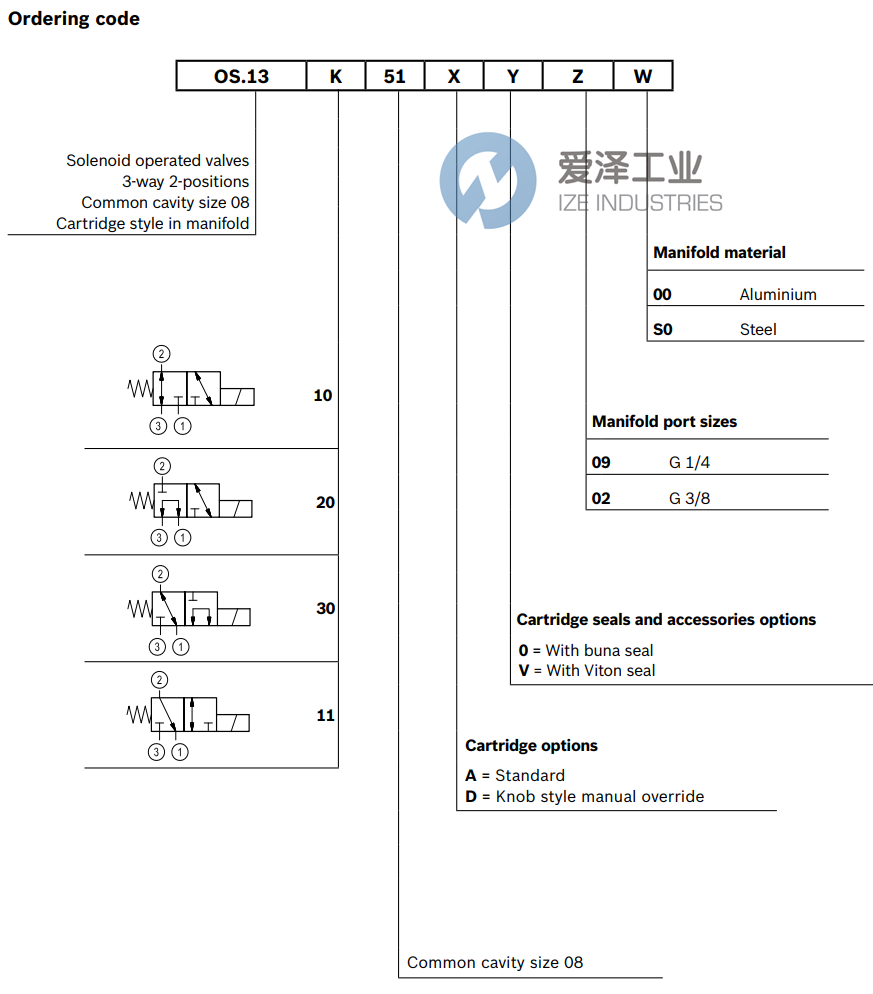

REXROTH阀VED-CS-16-08A-32系列选型
REXROTH阀VED-CS-16-08A-32系列其他常用型号：
REXROTH OS131051D009000 R930064260
REXROTH OS131051300200 R934002763
REXROTH OS131051300900 R934002765
REXROTH OS131051400200 R934002767
REXROTH OS131051400900 R934002768
REXROTH OS131151400900 R934001324
REXROTH OS132051300200 R934002776
REXROTH OS132051300900 R934002777
REXROTH OS132051400200 R934002779
REXROTH OS132051400900 R934002781
REXROTH OS133051300200 R934002785
REXROTH OS133051300900 R934002787
REXROTH OS133051400900 R934002792
REXROTH VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH阀OS131151D009000 R930064260的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH阀OS131151D009000 R930064260技术参数及选型
