REXROTH OIL CONTROL阀VEI-16-08A-NA系列技术参数
Technical data | |
General | |
Weight | 0.15 kg (0.33 lbs) |
Installation orientation | Unrestricted |
Ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 0.5 - 40 l/min (0.1 - 11 gpm) |
Fatigue cycle life | 2 million cycles at 350 bar |
Max. internal leakage: | 5 drops/min. for X= 02,06,08 |
Switching time | Closing ≤ 100 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 39 - 51 Nm (29 - 38 ft-lbs) |
Recommended degree of fl uid contamination | Nominal value max. 10 µm (NAS 8) ISO 4406 19/17/14 |
MTTFD | 150 years see RE 18350-51 |
Common cavity | CA-08A-2N see 18325-70 |
Seal kit for X=02,06,08 | code RG08A2010520100 |
Seal kit for X=32,10,04 | code RG08A2010530100 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=B | code RG03Z0010000100 |
Seal kit coil and protective cap only for Y=C | code RG04Z0010000100 |
Other technical data | See data sheet 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Supply voltage | See data sheet 18325-90 |
Voltage tolerance against ambient temperature | See characteristic curve |
Power consumption | 20 W |
Type of protection | See data sheet 18325-90 |
Note: Coils must be ordered separately | |

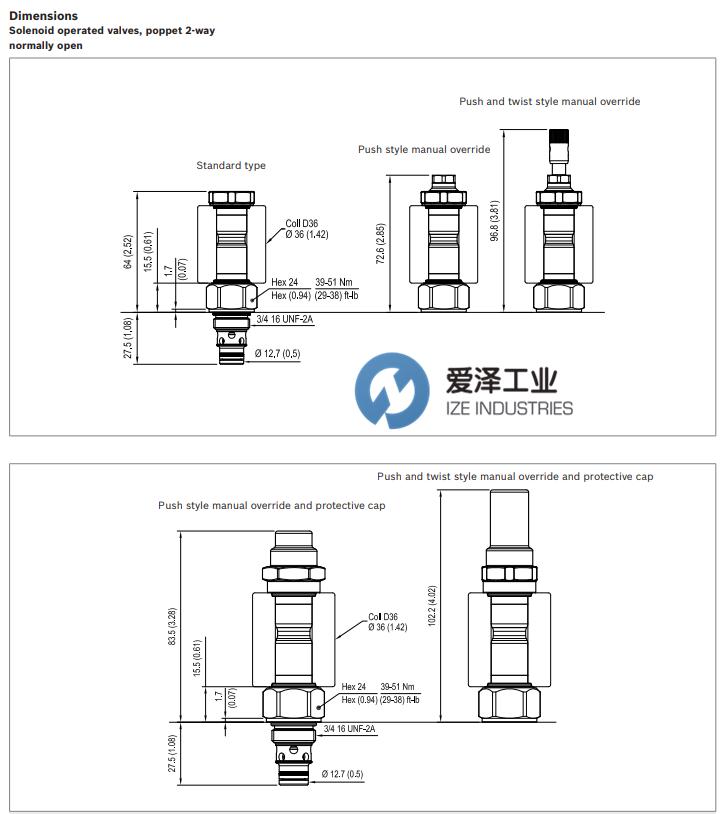

REXROTH OIL CONTROL阀VEI-16-08A-NA系列技术尺寸

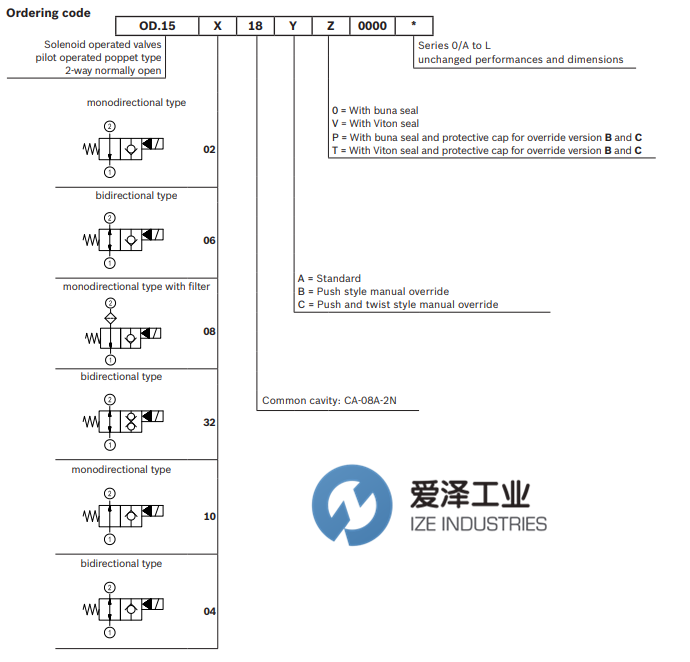

REXROTH OIL CONTROL阀VEI-16-08A-NA系列选型
REXROTH OIL CONTROL阀VEI-16-08A-NA系列其他常用型号：
REXROTH OILCONTROL OD150218A000000 R930059442
REXROTH OILCONTROL OD150218B000000 R930060895
REXROTH OILCONTROL OD150218BP00000 R930060113
REXROTH OILCONTROL OD150218C000000 R930060584
REXROTH OILCONTROL OD150218CP00000 R930060090
REXROTH OILCONTROL OD150618A000000 R930058435
REXROTH OILCONTROL OD150618B000000 R930058438
REXROTH OILCONTROL OD150618C000000 R930060128
REXROTH OILCONTROL OD150818A000000 R930058337
REXROTH OILCONTROL OD150818B000000 R930058340
REXROTH OILCONTROL OD150818C000000 R930060583
REXROTH OILCONTROL OD153218A000000 R930064101
REXROTH OILCONTROL OD153218B000000 R930063422
REXROTH OILCONTROL OD153218C000000 R930065002
REXROTH OILCONTROL OD150418A000000 R930065329
REXROTH OILCONTROL OD150418B000000 R930066184
REXROTH OILCONTROL OD150418C000000 R930066185
REXROTH OILCONTROL OD150618CP00000 R930060905
REXROTH OILCONTROL OD153218CP00000 R930065328
REXROTH OILCONTROL OD151018B000000 R930066186
REXROTH OILCONTROL OD151018C000000 R930066187
REXROTH OILCONTROL OD150618AV00000 R930060900
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH OIL CONTROL阀OD153218B000000 R930063422的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
REXROTH OIL CONTROL阀OD153218B000000 R930063422技术参数及选型
