REXROTH OIL CONTROL阀VEI-16-NA系列技术参数
Technical data | |
General | |
Weight | 0.25 kg (0.55 lbs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 5 - 150 l/min (1 - 40 gpm) |
Max. internal leakage: | 20 drops/min. |
Switching time | Closing ≤ 100 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque | 54 - 66 Nm (40 - 49 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 µm (NAS 8) ISO 4406 19/17/14 |
MTTFD | 150 years |
Common cavity | CA-12A-2N |
Seal kit for X=06 | code RG12A2010520100 |
Seal kit for X=04,32 | code RG12A2010530100 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=B | code RG03Z0010000100 |
Seal kit coil and protective cap only for Y=C | code RG04Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Power consumption | 20 W |
Note: Coils must be ordered separately |

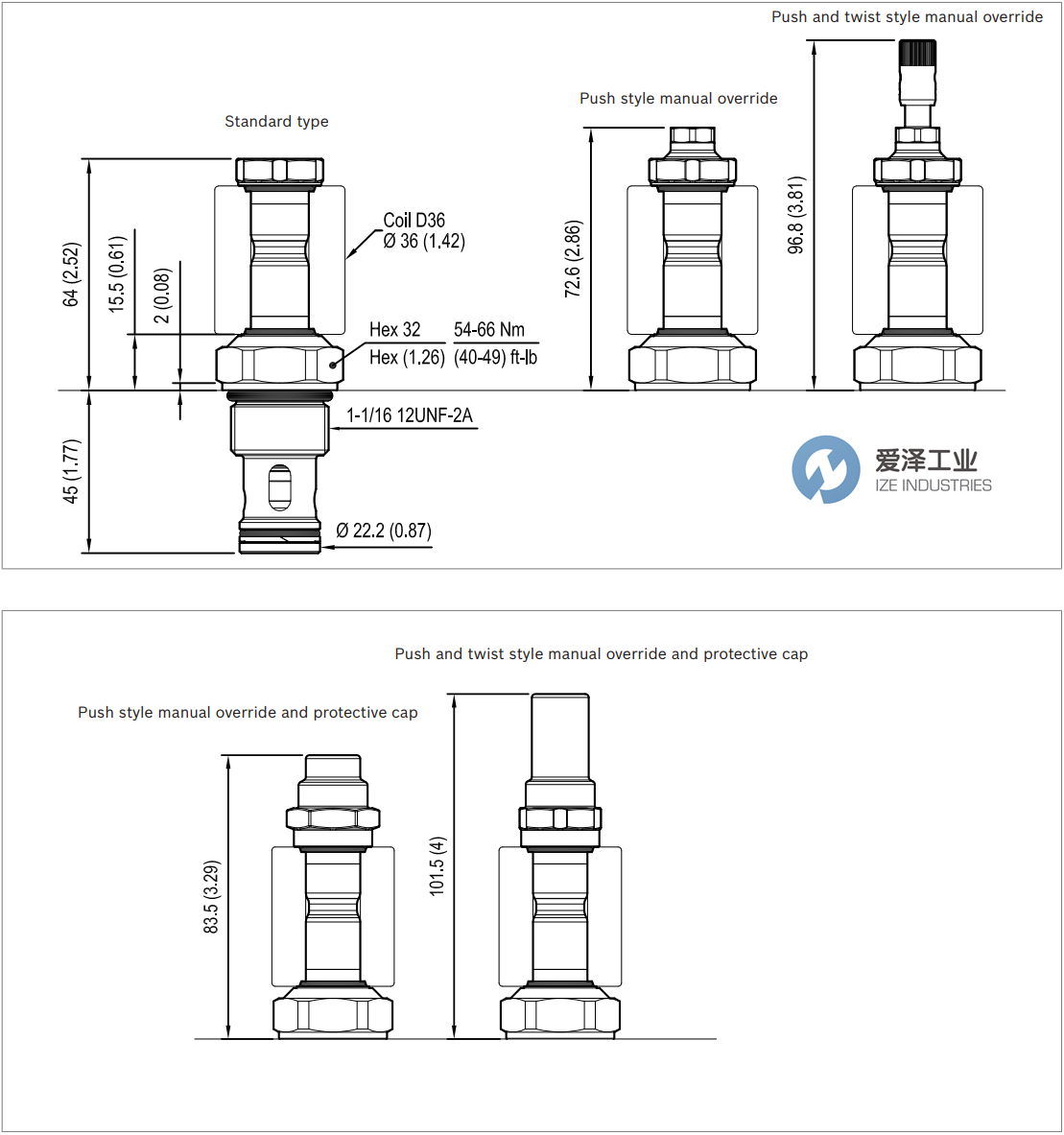

REXROTH OIL CONTROL阀VEI-16-NA系列技术尺寸

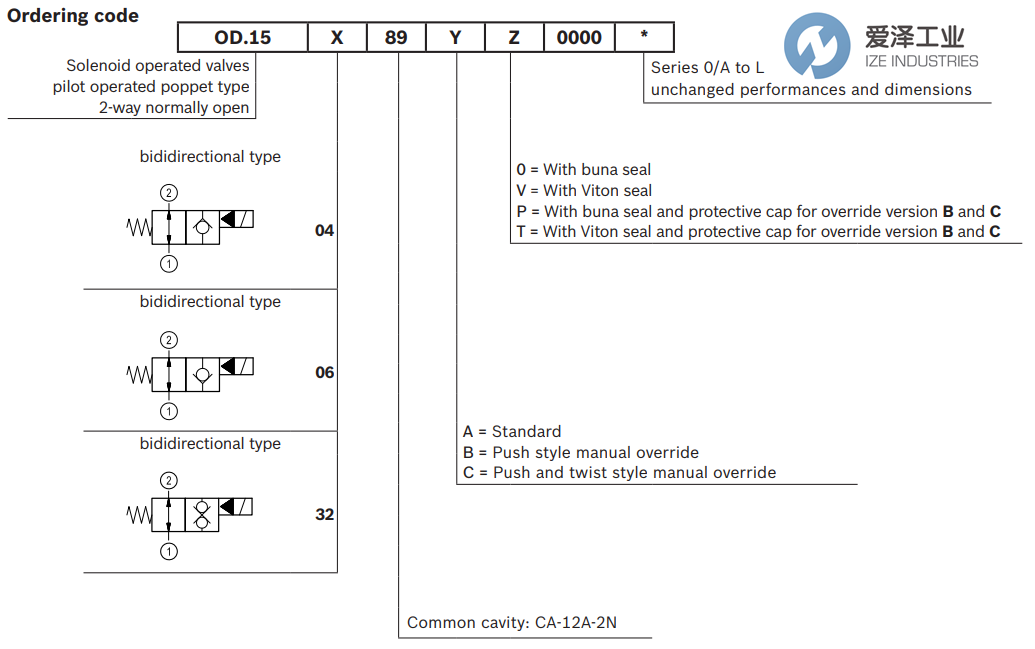

REXROTH OIL CONTROL阀VEI-16-NA系列选型
REXROTH OIL CONTROL阀VEI-16-NA系列其他常用型号：
REXROTH OIL CONTROL OD150689A000000 R930063151
REXROTH OIL CONTROL OD150689B000000 R930068531
REXROTH OIL CONTROL OD150689C000000 R930069635
REXROTH OIL CONTROL OD153289A000000 R930066971
REXROTH OIL CONTROL OD153289B000000 R930071122
REXROTH OIL CONTROL OD153289C000000 R930069395
REXROTH OIL CONTROL OD150489A000000 R930069046
REXROTH OIL CONTROL OD150489B000000 R930068525
