REXROTH OIL CONTROL阀CA25 R932500114技术参数
Code | CA25 |
Pressure Pmax bar (psi) | 250 (3600) |
Flow Qmax l/min (gpm) | 160 (42) |
Weight kg (lbs) | 1.04 (2.29) |
Cracking pressure bar (psi) | 0.5 (7.25) |
REXROTH OIL CONTROL阀CA系列介绍
检查阀门
带内螺纹套筒的提升型
优点
- 非常紧凑的设计和内嵌式安装，可节省空间。
- 九种尺寸为系统提供了极大的适应性。
- 安装位置不受限制。
- 在自由流动方向上非常低的 Δp。
Check valves
Poppet type with female threaded sleeve
Advantages
-Very compact design and inline mounting for space saving.
-Nine sizes provide great adaptability to the system.
-Mounting position is unrestricted.
-Very low Δp in the free flow direction.

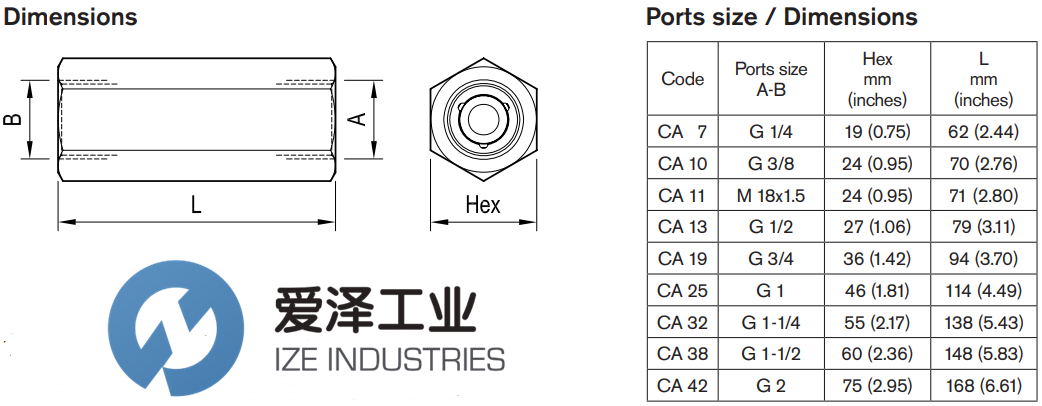

REXROTH OIL CONTROL阀CA系列技术尺寸

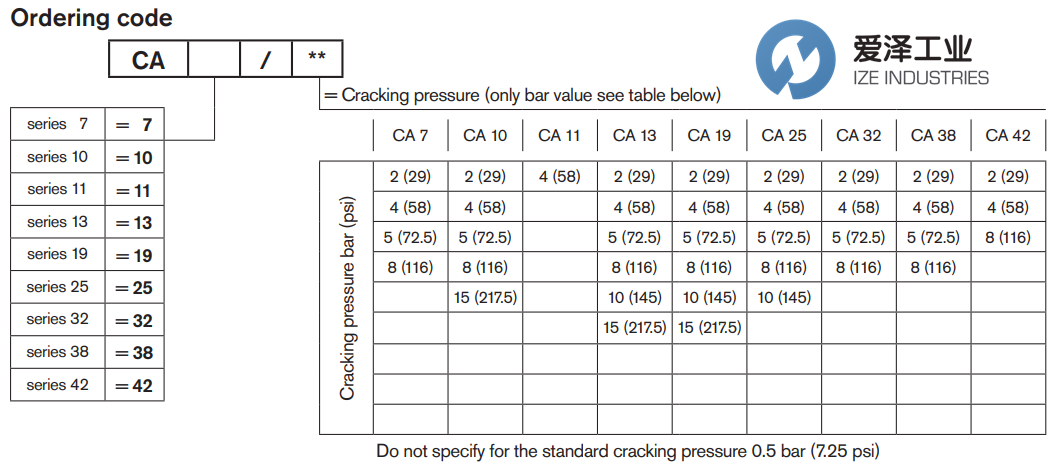

REXROTH OIL CONTROL阀CA系列选型
REXROTH OIL CONTROL阀CA系列其他常用型号：
REXROTH OIL CONTROL CA19/15 R932500101
REXROTH OIL CONTROL CA25 R932500114
REXROTH OIL CONTROL CA25/2 R932500119
REXROTH OIL CONTROL CA25/4 R932500122
REXROTH OIL CONTROL CA25/5 R932500124
REXROTH OIL CONTROL CA25/8 R932500125
REXROTH OIL CONTROL CA25/10 R932500118
REXROTH OIL CONTROL CA32 R932500129
REXROTH OIL CONTROL CA32/2 R932500132
REXROTH OIL CONTROL CA32/4 R932500135
REXROTH OIL CONTROL CA32/5 R932500136
REXROTH OIL CONTROL CA32/8 R932500137
REXROTH OIL CONTROL CA38 R932500138
REXROTH OIL CONTROL CA38/2 R932500141
REXROTH OIL CONTROL CA38/4 R932500143
REXROTH OIL CONTROL CA38/5 R932500144
REXROTH OIL CONTROL CA38/8 R932500145
REXROTH OIL CONTROL CA42/2 R932500147
REXROTH OIL CONTROL CA42/4 R932500148
REXROTH OIL CONTROL CA42/8 R932500149
REXROTH OIL CONTROL Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH OIL CONTROL阀CA25 R932500114的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH OIL CONTROL阀CA25 R932500114技术参数及选型
