REXROTH OIL CONTROL阀VSPN-10A系列技术参数
Technical data | |
Max. operating pressure port 1 (P) | 420 bar (6000 psi) |
Max. pressure admitted port 2 (T) | 350 bar (5000 psi) for version 03 |
Flow range | 3 - 120 l/min (1 - 32 gpm) |
Max. internal leakage | 200 cm3/min. (12 cu.in./min.) |
Fluid temperature range | Fluid temperature range |
Installation torque | 41 - 47 Nm (30 - 35 ft-lbs) |
Weight | 0.21 kg (0.46 lbs) |
Cavity | CA-10A-2N |
Seal kit | Code: RG10A2010530100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10µm (NAS 8) / ISO 4406 19/17/14 |
Installation position | No restrictions |

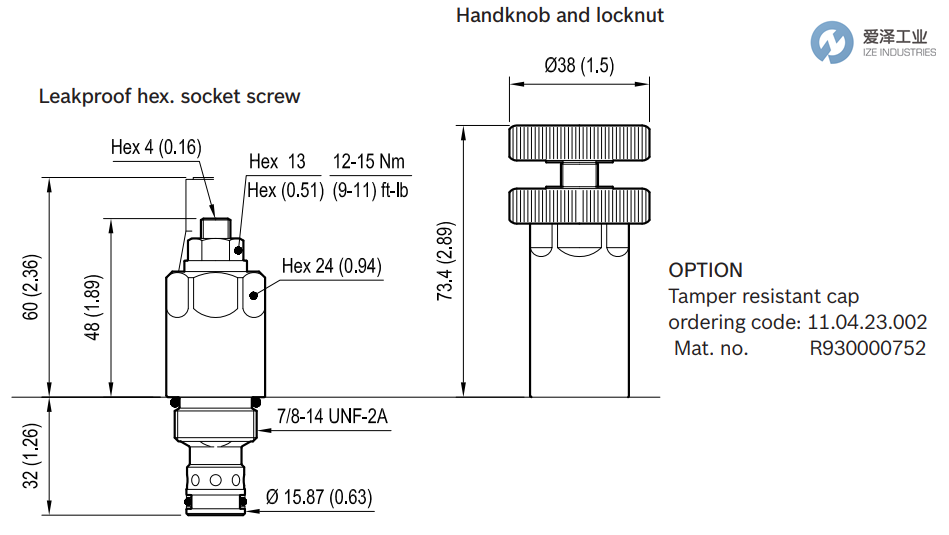

REXROTH OIL CONTROL阀VSPN-10A系列技术尺寸

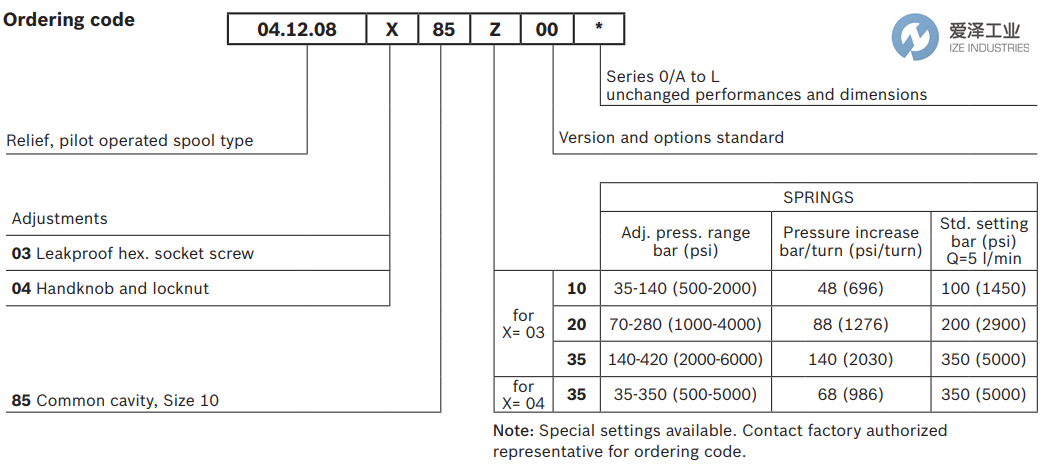

REXROTH OIL CONTROL阀VSPN-10A系列选型
REXROTH OIL CONTROL阀VSPN-10A系列其他常用型号：
REXROTH OIL CONTROL 041208038510000 R901097726
REXROTH OIL CONTROL 041208038520000 R901097722
REXROTH OIL CONTROL 041208038535000 R901104103
REXROTH OIL CONTROL 041208048535000 R901104104
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH OIL CONTROL阀041208048535000 R901104104的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
REXROTH OIL CONTROL阀041208048535000 R901104104技术参数及选型
