REXROTH OIL CONTROL阀VEI-16-NC系列技术参数
Technical data | |
General | |
Weight | 0.25 kg (0.55 lbs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 5 - 150 l/min (1 - 40 gpm) |
Max. internal leakage: | 20 drops/min. |
Switching time | Closing ≤ 100 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 54 - 66 Nm (40 - 49 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 µm (NAS 8) ISO 4406 19/17/14 |
MTTFD | 150 years |
Common cavity | CA-12A-2N |
Seal kit for X=03,05 | code RG12A2010520100 |
Seal kit for X=31 | code RG12A2010530100 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=D | code RG03Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Power consumption | 20 W |
Note: Coils must be ordered separately | |

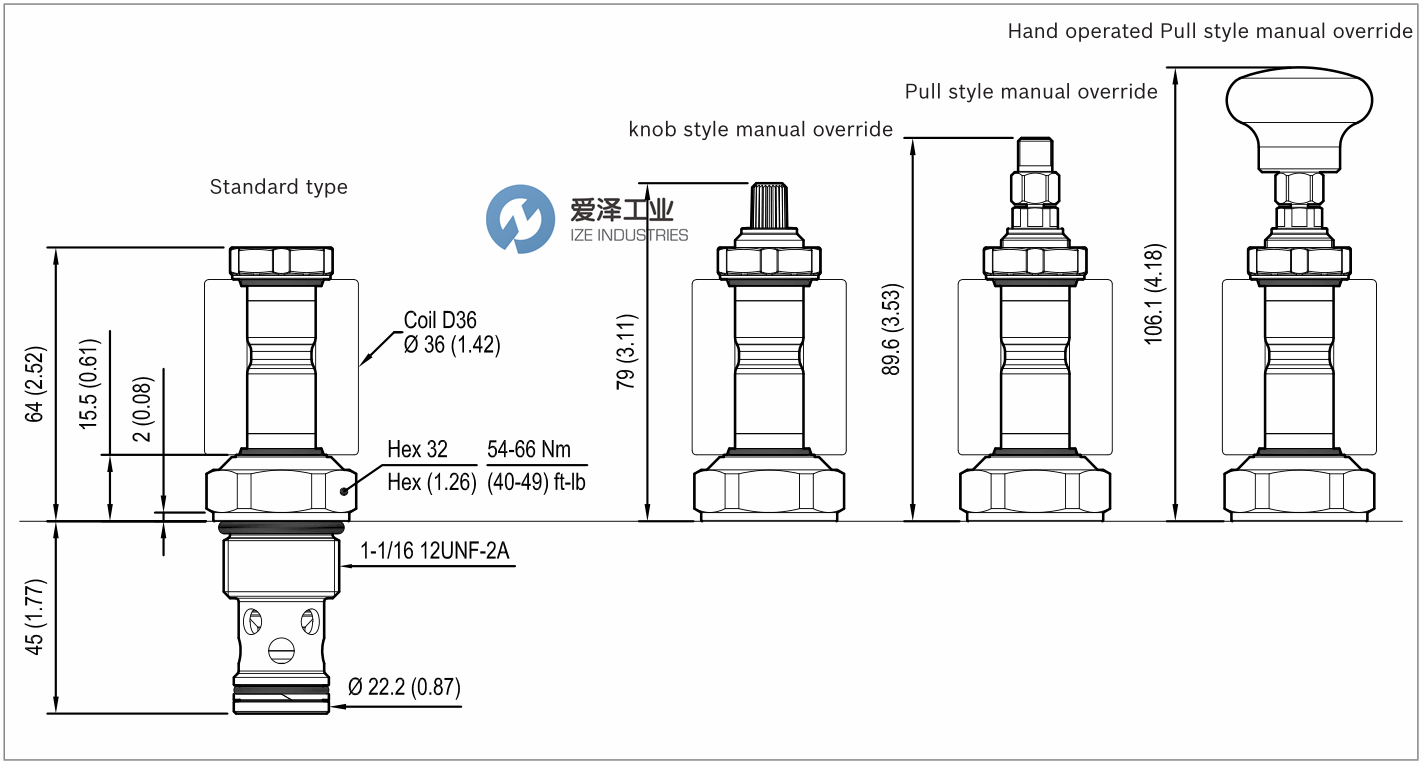

REXROTH OIL CONTROL阀VEI-16-NC系列技术尺寸

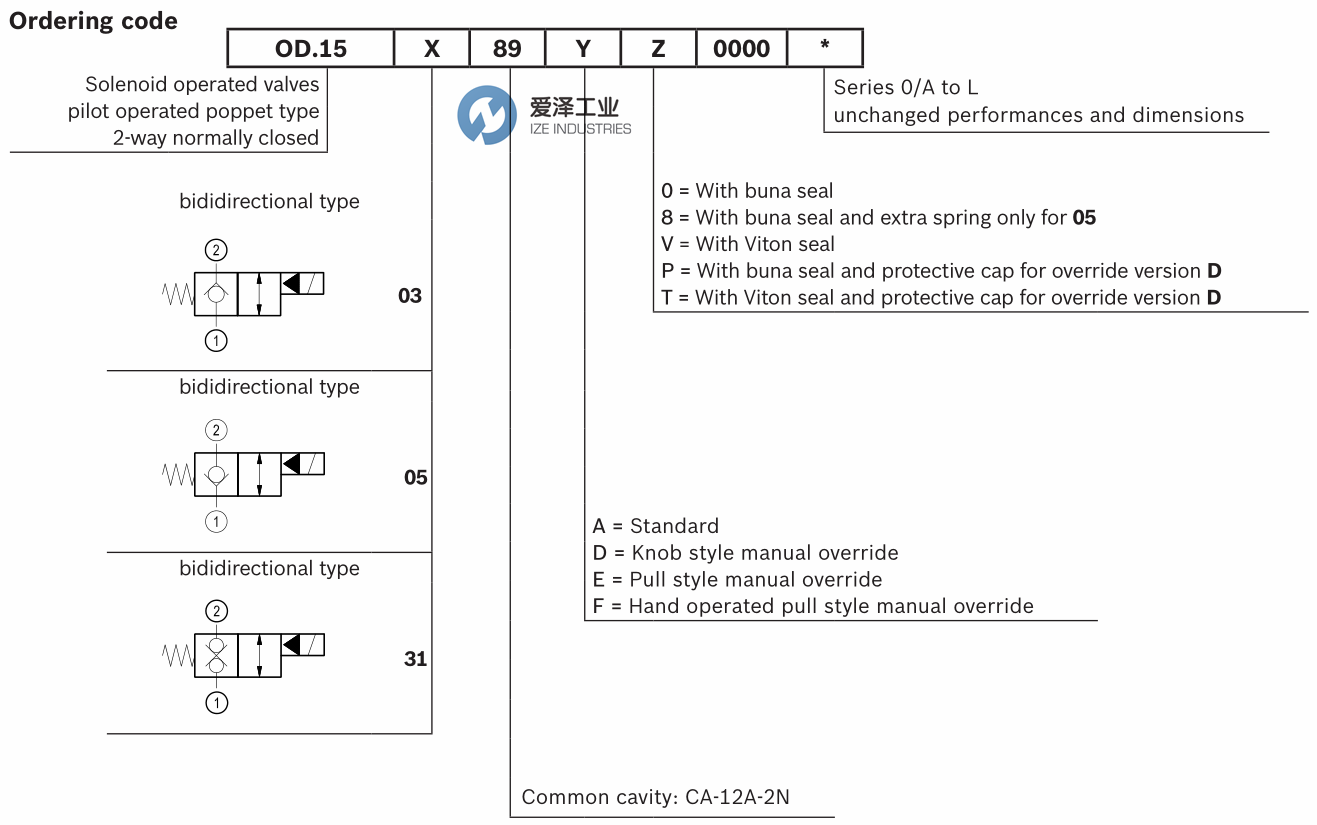

REXROTH OIL CONTROL阀VEI-16-NC系列选型介绍
REXROTH OIL CONTROL阀VEI-16-NC系列其他常用型号：
REXROTH OIL CONTROL OD150589A000000 R930061347
REXROTH OIL CONTROL OD150589D000000 R930065473
REXROTH OIL CONTROL OD150589F000000 R930067898
REXROTH OIL CONTROL OD150589A800000 R930069502
REXROTH OIL CONTROL OD150589E000000 R930068530
REXROTH OIL CONTROL OD150389A000000 R930066083
REXROTH OIL CONTROL OD150389D000000 R930069501
REXROTH OIL CONTROL OD153189A000000 R930067154
REXROTH OIL CONTROL OD153189A800000 R930069494
REXROTH OIL CONTROL OD153189AV00000 R930069493
REXROTH OIL CONTROL OD153189D000000 R930069498
