REXROTH OIL CONTROL阀VBSO-SE系列技术参数
Technical data | |
Operating pressure | up to 210 bar (3000 psi) |
Manifold material | Aluminium |
Fluid | Mineral oil (HL, HLP) according DIN 51524 |
Fluid temperature range | -30 °C to 100 (-22 to 212 °F) |
Viscosity range | 5 to 800 mm2/s (cSt) |
Recommended degree of fluid contamination | Class 19/17/14 according to ISO 4406 |
Relief setting: | at least 1.3 times the highest expected load. |

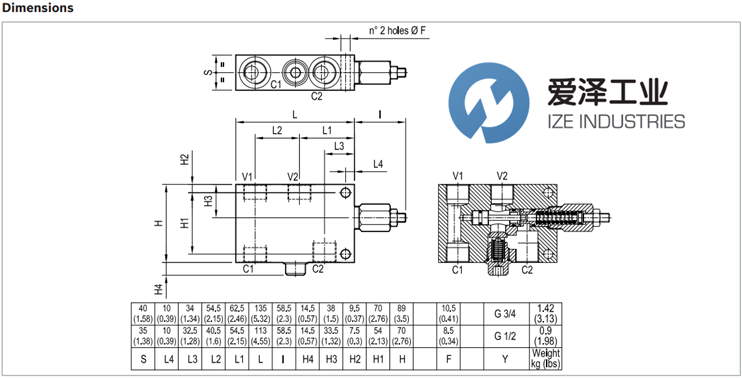

REXROTH OIL CONTROL阀VBSO-SE系列技术尺寸

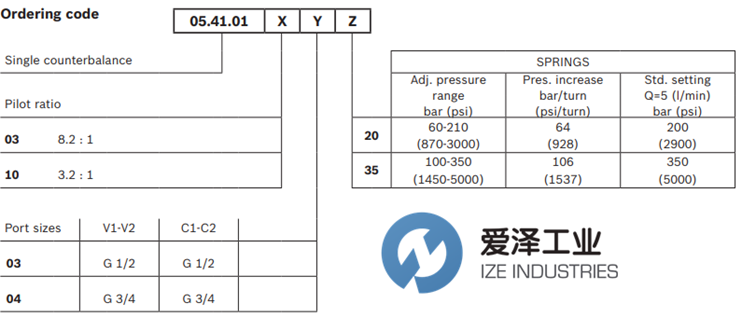

REXROTH OIL CONTROL阀VBSO-SE系列选型
REXROTH OIL CONTROL阀VBSO-SE系列其他常用型号：
REXROTH OIL CONTROL 054101030320000 R930001654
REXROTH OIL CONTROL 05410103033500A R930001655
REXROTH OIL CONTROL 054101100320000 R930000088
REXROTH OIL CONTROL 05410110033500A R930001662
REXROTH OIL CONTROL 054101030420000 R930001658
REXROTH OIL CONTROL 05410103043500A R930001659
REXROTH OIL CONTROL 054101100420000 R930001663
REXROTH OIL CONTROL 05410110043500A R930001664
REXROTH OIL CONTROL Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH OIL CONTROL阀05410103033500A R930001655的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH OIL CONTROL阀05410103033500A R930001655技术参数
