REXROTH OIL CONTROL阀VEI-8A-06-NC系列技术参数
Technical data | |
General | |
Weight | 0.16 kg (0.35 lbs) |
Installation orientation | Optional |
Ambient temperature range | -30 to 60°C (-22 to 140 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Max. proof pressure | 420 bar (6000 psi) |
Flow range | 0.5 - 40 l/min (0.1 - 11 gpm) |
Fatigue cycle life | 1 million cycles at 350 bar |
Max. internal leakage | 20 drops/min. |
Fluid temperature range | -20 to 80°C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque | 39 - 51 Nm (29 - 38 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 µm (NAS 8) ISO 4406 19/17/14 |
Seal kit – version 1 | code RG08A2010520100 |
Seal kit – version 2-3 | code RG08A2010530100 |
Seal kit coil | code RG12A1PNBR7010 |
Electrical | |
Type of voltage | DC voltage |
Nominal voltage | ±10% |
Power consumption | 20 W |

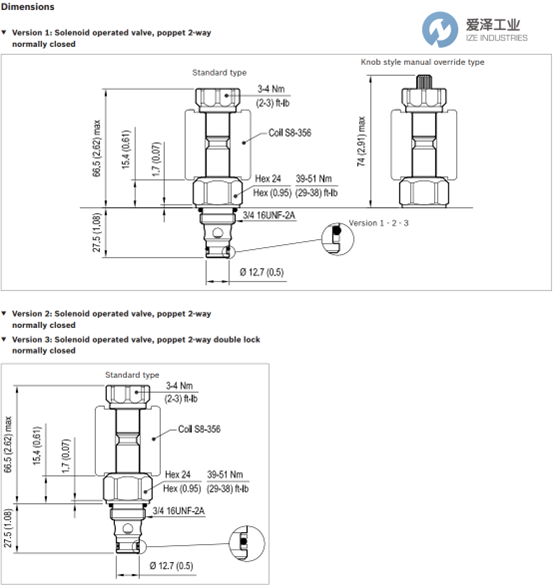

REXROTH OIL CONTROL阀VEI-8A-06-NC系列尺寸图

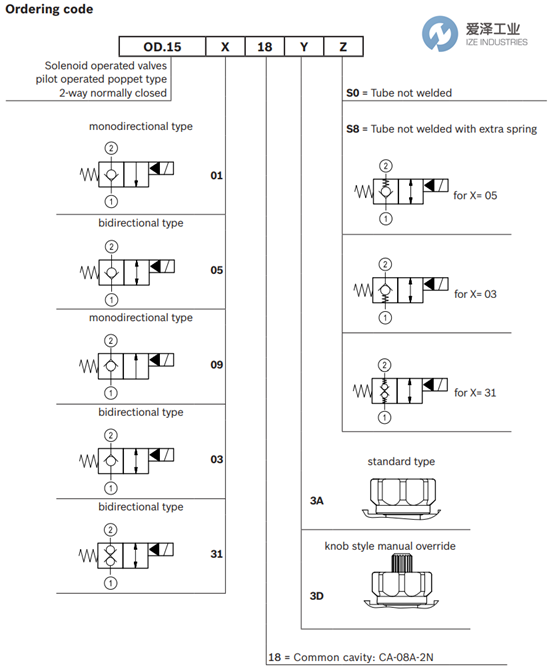

REXROTH OIL CONTROL阀VEI-8A-06-NC系列选型
REXROTH OIL CONTROL阀VEI-8A-06-NC系列其他常用型号：
REXROTH OIL CONTROL OD1501183AS000 R901091096
REXROTH OIL CONTROL OD1501183DS000 R901091101
REXROTH OIL CONTROL OD1503183AS000 R934000779
REXROTH OIL CONTROL OD1503183AS800 R934003063
REXROTH OIL CONTROL OD1503183DS000 R901091112
REXROTH OIL CONTROL OD1503183DS800 R934003064
REXROTH OIL CONTROL OD1505183AS000 R901083058
REXROTH OIL CONTROL OD1505183AS800 R934003080
REXROTH OIL CONTROL OD1505183DS000 R901087979
REXROTH OIL CONTROL OD1509183AS000 R901091150
REXROTH OIL CONTROL OD1509183DS000 R901091151
REXROTH OIL CONTROL OD1531183AS000 R901082015
REXROTH OIL CONTROL OD1531183AS800 R934000104
REXROTH OIL CONTROL OD1531183DS000 R901091164
