REXROTH OIL CONTROL阀VUCN-08A系列技术参数
Technical data | |
Max. operating pressure bar (psi) | 420 (6000) |
Max. flow l/min. (gpm) | 50 (13) |
Max. internal leakage drops/min. | 5 |
Fluid temperature range °C (°F) | -30 to 100 (-22 to 212) |
Installation torque Nm (ft-lbs) | 34-41 (25-30) |
Weight kg (lbs) | 0.12 (0.27) |
Cavity | CA-08A-2N |
Seal kit (*) | code RG08A2010520100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 5 to 800 mm2/s (cSt) |
Filtration | Nominal value max. 10µm (NAS 8) ISO 4406 19/17/14 |
Installation | No restrictions |
Other Technical Data | See data sheet RE 18350-50 |

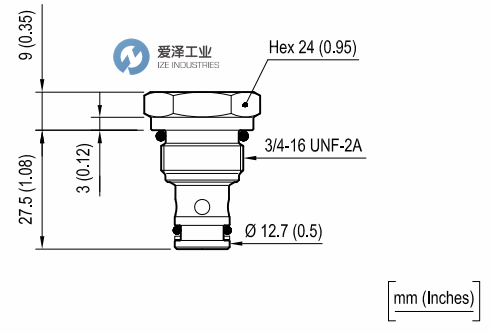

REXROTH OIL CONTROL阀VUCN-08A系列尺寸图

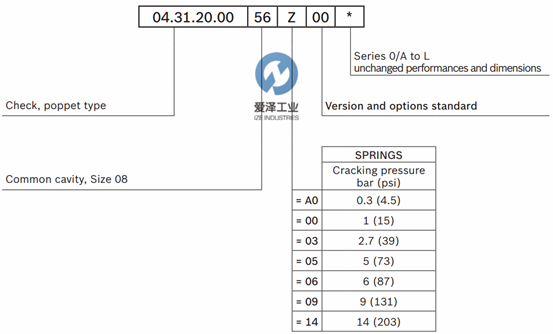

REXROTH OIL CONTROL阀VUCN-08A系列选型
REXROTH OIL CONTROL阀VUCN-08A系列其他常用型号：
REXROTH OIL CONTROL 0431200056A0000 R930006992
REXROTH OIL CONTROL 043120005600000 R901007308
REXROTH OIL CONTROL 043120005603000 R901162183
REXROTH OIL CONTROL 043120005605000 R901106550
REXROTH OIL CONTROL 043120005606000 R901116571
REXROTH OIL CONTROL 043120005609000 R930000961
REXROTH OIL CONTROL 043120005614000 R901106592
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH OIL CONTROL阀043120005605000 R901106550的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
REXROTH OIL CONTROL阀043120005605000 R901106550规格描述
