REXROTH OIL CONTROL阀VMR1-16系列技术参数
Technical data | |
Max. operating pressure port 1 (P) | 420 bar (6000 psi) |
Max. pressure admitted port 2 (T) | 50 bar (725 psi) |
Max. flow | 100 l/min (26 gpm) |
Max. internal leakage at 80% of pressure setting | 15 drops/min. |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) (Buna N) |
Installation torque | 90 Nm (67 ft-lbs) |
Weight | 0.17 kg (0.37 lbs) |
Seal kit (Buna N) | Code: RG16R2010520100 |
Seal kit (Viton) | Code: RG16R2040520100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 380 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10µm (NAS 8) / ISO 4406 20/18/15 |
Installation position | No restrictions |

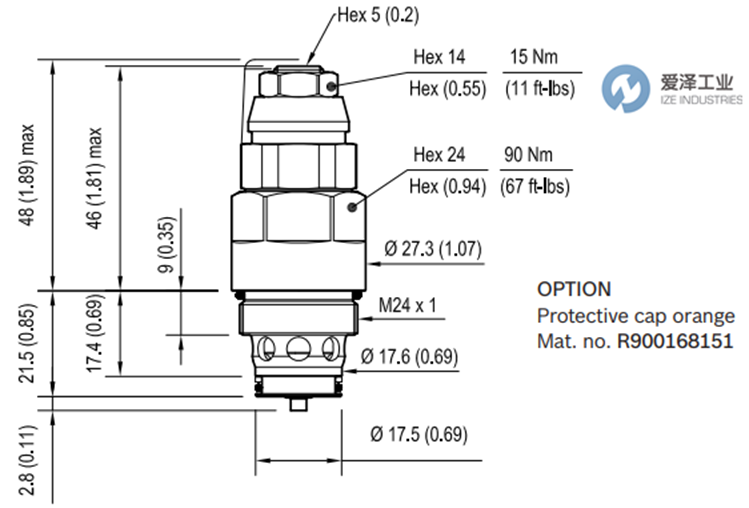

REXROTH OIL CONTROL阀VMR1-16系列技术尺寸

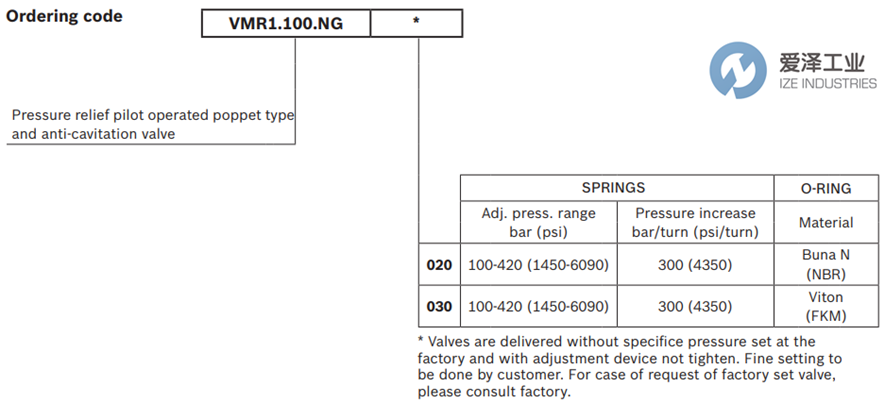

REXROTH OIL CONTROL阀VMR1-16系列选型
REXROTH OIL CONTROL阀VMR1-16系列其他常用型号：
REXROTH OIL CONTROL VMR1.100.NG.030 R931002539
REXROTH OIL CONTROL VMR1.100.NG.020 R931002529
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH OIL CONTROL阀VMR1.100.NG.030 R931002539的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH OIL CONTROL阀VMR1.100.NG.030 R931002539技术参数及选型
