REXROTH OIL CONTROL阀VEPN-19E-16系列技术参数
Technical data | |
General | |
Weight | 0.20 kg (0.45 lbs) |
Installation orientation | 0.20 kg (0.45 lbs) |
Installation orientation | -30 to 60 °C (-22 to 140 °F) |
Hydraulic | |
Max. operating pressure | 250 bar (3600 psi) |
Flow range | 5 - 20 l/min. (1.3 - 5 gpm) |
Fatigue cycle life | 1 million cycles at 250 bar |
Max. internal leakage | 1 cm3/min. (0.1 cu.in/min.) |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 15 to 380 mm2/s (cSt) |
Installation torque | 34 -41 Nm (25 - 30 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 µm (NAS 8) ISO 4406 19/17/14 |
Seal kit | code RG19E201053010 |
Seal kit coil | code RG16A1PMVQ0010 |
Electrical | |
Type of voltage | DC voltage |
Coil type | R7 |
Supply voltage | 12 - 24 DC |
Nominal voltage | ± 10% |
Power consumption | 28 W |
Duty cycle coil | 100 |

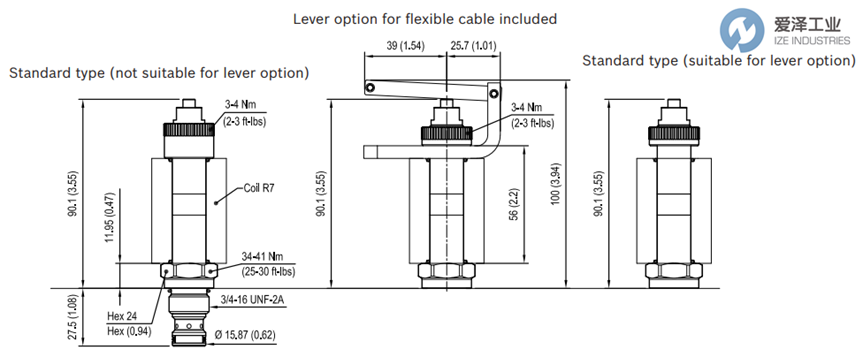

REXROTH OIL CONTROL阀VEPN-19E-16系列技术尺寸

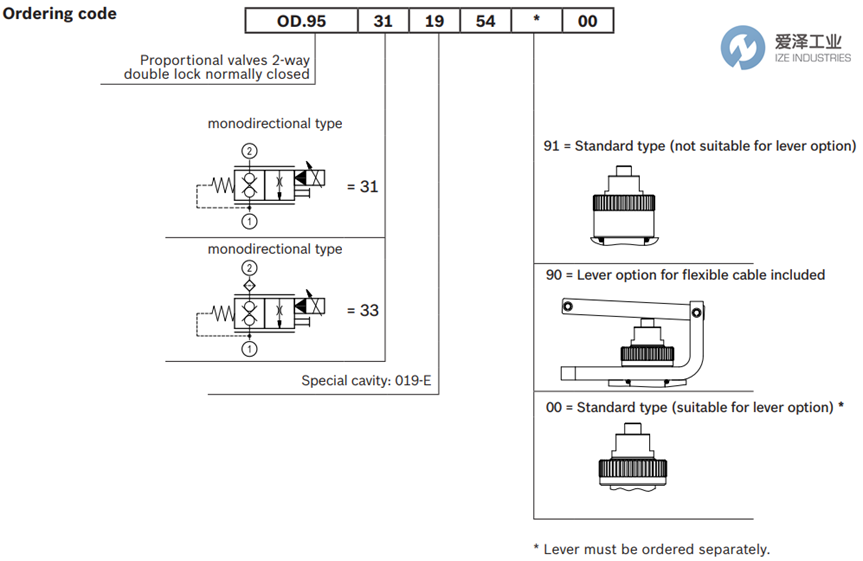

REXROTH OIL CONTROL阀VEPN-19E-16系列选型
REXROTH OIL CONTROL阀VEPN-19E-16系列其他常用型号：
REXROTH OIL CONTROL OD953119549000 R930053668
REXROTH OIL CONTROL OD953119549100 R930053669
REXROTH OIL CONTROL OD953119540000 R934005238
REXROTH OIL CONTROL OD953319540000 R930069905
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH OIL CONTROL阀OD953119540000 R934005238的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH OIL CONTROL阀OD953119540000 R934005238技术参数及选型
