REXROTH OIL CONTROL阀VEI-16-NA系列技术参数
Technical data | |
General | |
Weight | 0.25 kg (0.55 lbs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 2 - 70 l/min (0.53 - 18 gpm) |
Fatigue cycle life | 2 million cycles at 350 bar |
Max. internal leakage | 5 drops/min. for X=02,06,12 |
Installation torque | 54 - 66 Nm (40 - 49 ft-lbs) |
Switching time | Opening ≤ 50 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10 µm (NAS 8) ISO 4406 19/17/14 |
Seal kit for X= 02,06,12 | code RG17E201052010 |
Seal kit for X= 04,32 | code RG17E201053010 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=B | code RG03Z0010000100 |
Seal kit coil and protective | code RG04Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Power consumption | 20 W |

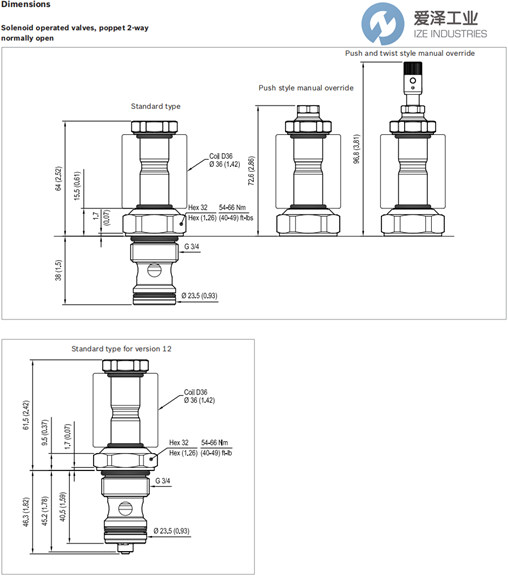

REXROTH OIL CONTROL阀VEI-16-NA系列技术尺寸
REXROTH OIL CONTROL阀VEI-16-NA系列选型
REXROTH OIL CONTROL阀VEI-16-NA系列其他常用型号：
REXROTH OIL CONTROL OD150217A000000 R930063870
REXROTH OIL CONTROL OD150217C000000 R930065471
REXROTH OIL CONTROL OD150617A000000 R930064265
REXROTH OIL CONTROL OD150617B000000 R930064334
REXROTH OIL CONTROL OD150617C000000 R930063423
REXROTH OIL CONTROL OD151217A000000 R930063907
REXROTH OIL CONTROL OD153217A000000 R930064102
REXROTH OIL CONTROL OD153217B000000 R930067161
REXROTH OIL CONTROL OD153217BP00000 R930067159
REXROTH OIL CONTROL OD153217C000000 R930067160
REXROTH OIL CONTROL OD153217CP00000 R930067157
REXROTH OIL CONTROL OD150417A000000 R930066966
REXROTH OIL CONTROL OD151017A000000 R930076206
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH OIL CONTROL阀OD153217C000000 R930067160的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH OIL CONTROL阀OD153217C000000 R930067160技术参数及选型
