REXROTH OIL CONTROL阀VUPC-10A系列技术参数
Technical data | |
Max. operating pressure | 350 bar (5000 psi) |
Max. flow | 70 /min. (18 gpm) |
Pilot ratio | 1.9:1 |
Max. internal leakage | 5 drops/min. . |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 41-47Nm(30-35ft-lbs) |
Weight | 0.15 kg (0.33 lbs) |
Cavity | CA-10A-3C |
Seal kit1) | Code: RG10A9010530100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 5 to 800 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10µm (NAS 8) / ISO 4406 19/17/14 |
Installation position | No restrictions |

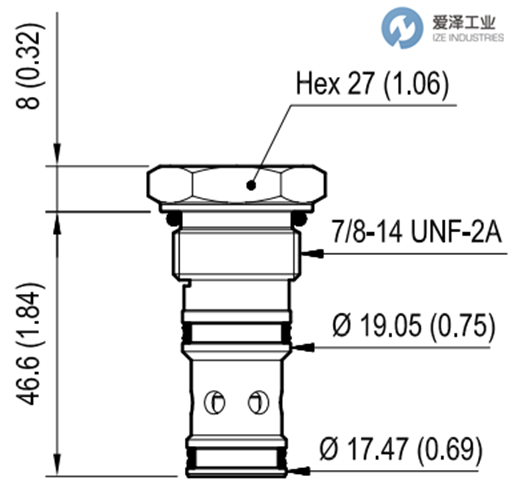

REXROTH OIL CONTROL阀VUPC-10A系列技术尺寸

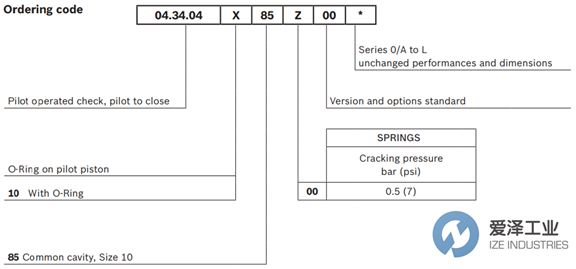

REXROTH OIL CONTROL阀VUPC-10A系列选型
REXROTH OIL CONTROL阀VUPC-10A系列其他常用型号：
REXROTH OIL CONTROL 043404108500000 R930000552
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH OIL CONTROL阀043404108500000 R930000552的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH OIL CONTROL阀043404108500000 R930000552技术参数及选型
