REXROTH阀DBETX系列技术参数
General | |
Construction | Spool valve |
Actuation | Proportional solenoid without position control, external amplifier |
Connection type | Subplate, mounting hole configuration NG6 (ISO 4401-03-02-0-94) |
Mounting position | Optional |
Ambient temperature range | –20...+50°C |
Weight | 1.9 kg |
Vibration resistance, test condition | Max. 25 g, shaken in 3 dimensions (24 h) |
Hydraulic (measured with HLP 46, oil = 40 °C ±5 °C) | |
Viscosity range | recommended 20...100 mm2/s |
Pressure fluid | Hydraulic oil to DIN 51524...535, other fluids after prior consultation |
Pressure fluid temperature range | –20...+80°C |
Electrical | |
Cyclic duration factor | 100 |
Degree of protection | IP 65 to DIN 40050 and IEC 14434/5 |
Solenoid connection | Unit plug DIN 43650/ISO 4400, M16x1.5 (2P+PE) |

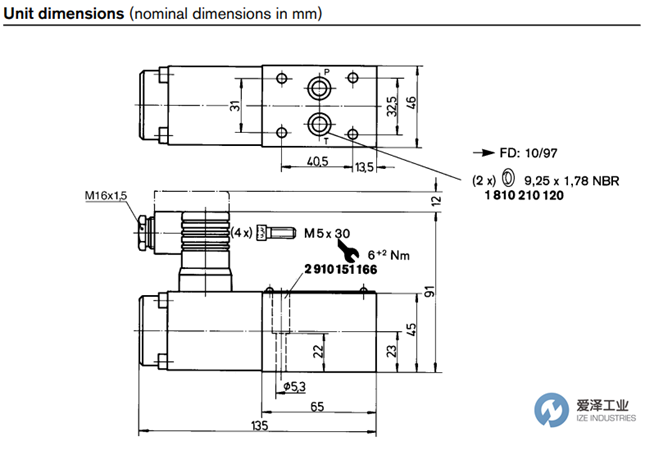

REXROTH阀DBETX系列技术尺寸

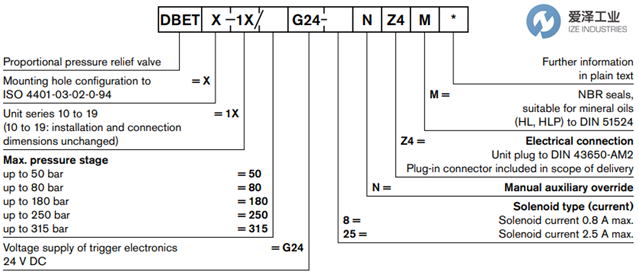

REXROTH阀DBETX系列选型
REXROTH阀DBETX系列其他常用型号：
REXROTH DBETX-1X/315G24-25NZ4M 0811402032
REXROTH DBETX-1X/50G24-8NZ4M 0811402036
REXROTH DBETX-1X/80G24- 8NZ4M 0811402018
REXROTH DBETX-1X/180G24-8NZ4M 0811402017
REXROTH DBETX-1X/250G24-8NZ4M 0811402019
REXROTH DBETX-1X/315G24-8NZ4M 0811402016
REXROTH DBETX-1X/50G24-25NZ4M 0811402034
REXROTH DBETX-1X/80G24-25NZ4M 0811402030
REXROTH DBETX-1X/180G24-25NZ4M 0811402031
REXROTH DBETX-1X/250G24-25NZ4M 0811402035
REXROTH Valves NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH阀DBETX-1X/315G24-25NZ4M 0811402032的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH阀DBETX-1X/315G24-25NZ4M 0811402032技术参数及选型
