REXROTH OIL CONTROL阀VEI-16-08A-NC系列技术参数
General | |
Weight | 0.15 kg (0.33 lbs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90°C (-22 to 194°F) for W=0000 |
Salt spray test to DIN EN ISO 9227:2017-07 | 500h |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 0.5 - 40 l/min. (0.1 - 11 gpm) for W=0000 |
Fatigue cycle life | 2 million cycles at 350 bar |
Max. internal leakage: | 5 drops/min. for X= 01,05,07 |
Switching time for W=0000 | Opening ≤ 50 ms |
Switching time for W=000T | Opening ≤ 50 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 35 - 43 Nm (26 - 32 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 µm (NAS 8) ISO 4406 19/17/14 |
Cavity | CA-08A-2N |
Seal kit for X=01,05,07 | code RG08A2010520100 |
Seal kit for X=31,03,09 | code RG08A2010530100 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=D | code RG03Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Power consumption | 20 W |

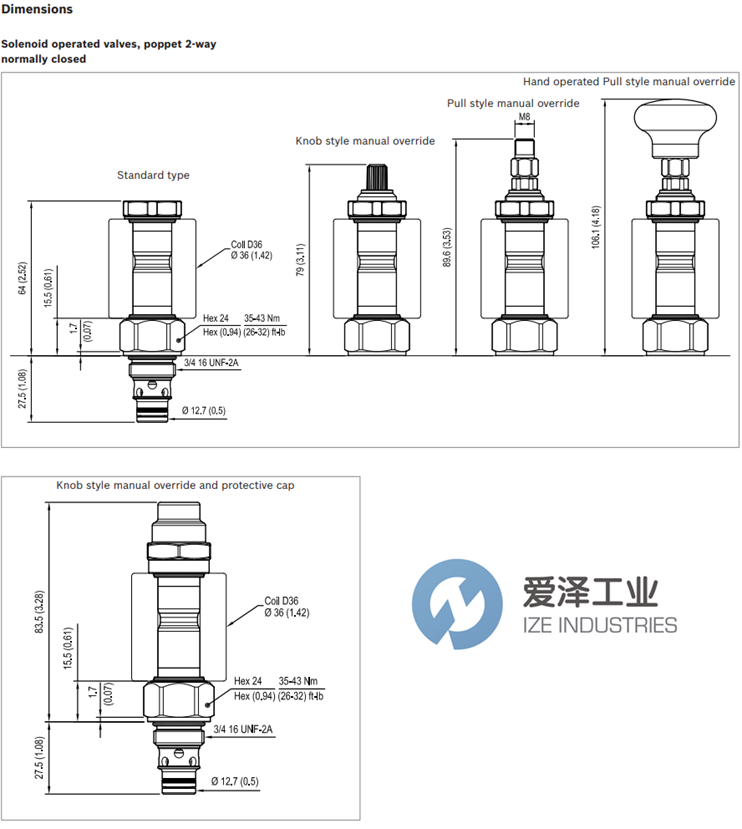

REXROTH OIL CONTROL阀VEI-16-08A-NC系列技术尺寸

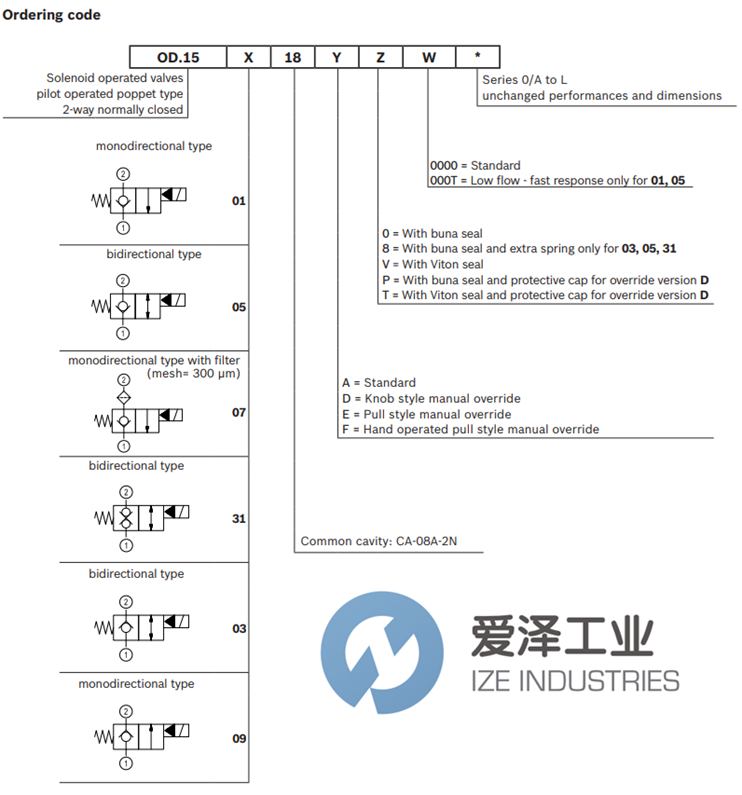

REXROTH OIL CONTROL阀VEI-16-08A-NC系列选型
REXROTH OIL CONTROL阀VEI-16-08A-NC系列其他常用型号：
REXROTH OIL CONTROL OD153118D000000 R930058898
REXROTH OIL CONTROL OD153118E000000 R930065030
REXROTH OIL CONTROL OD150518A800000 R930063229
REXROTH OIL CONTROL OD150318A000000 R930062828
REXROTH OIL CONTROL OD150918A000000 R930064361
REXROTH OIL CONTROL OD153118DP00000 R930066685
REXROTH OIL CONTROL OD150518D800000 R930063959
REXROTH OIL CONTROL OD150318D000000 R930065238
REXROTH OIL CONTROL OD150918D000000 R930066189
REXROTH OIL CONTROL OD150318A800000 R930065856
REXROTH OIL CONTROL OD150518A800000 R930063229
REXROTH OIL CONTROL OD153118A800000 R930066547
REXROTH OIL CONTROL valves NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH OIL CONTROL阀OD150318A800000 R930065856的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH OIL CONTROL阀OD150318A800000 R930065856技术参数及选型
